7Semi L89 USB Multi-GNSS engines for GPS, IRNSS, GLONASS, BeiDou, Galileo and QZSS

• GNSS Bands: GPS L1 (1575.42 MHz), Galileo E1, IRNSS L5 (1176.45 MHz), GLONASS L1, BeiDou B1
• Multi-GNSS Support: GPS, Galileo, GLONASS, BeiDou, IRNSS (NavIC), QZSS

• Position Accuracy (CEP): < 1.8 m

• Velocity Accuracy: < 0.1 m/s

• Acceleration Accuracy: < 0.1 m/s²

• Timing Accuracy: 1PPS, 3.9 ns RMS

• Sensitivity: Acquisition: –147 dBm, Tracking: –163 dBm

• Operating Temperature: –40 °C to +85 °C

• Module Dimensions: 63mm x 19mm x 8.46mm


Features:

• Multi-GNSS Support: Works with NavIC, GPS, Galileo, GLONASS, BeiDou, and QZSS.
• Dual Band Operation: Uses L1 and L5 bands for better accuracy and signal reliability.
• High Accuracy Positioning: Provides fast and precise location tracking.
• Built-in Antennas: Includes dual antennas for better signal reception.
• Strong Signal Performance: Works well even in urban and challenging environments.
• USB Plug-and-Play: Easy to use without complex setup.
• Suitable for Many Applications: Ideal for navigation, tracking, automotive, and industrial use.

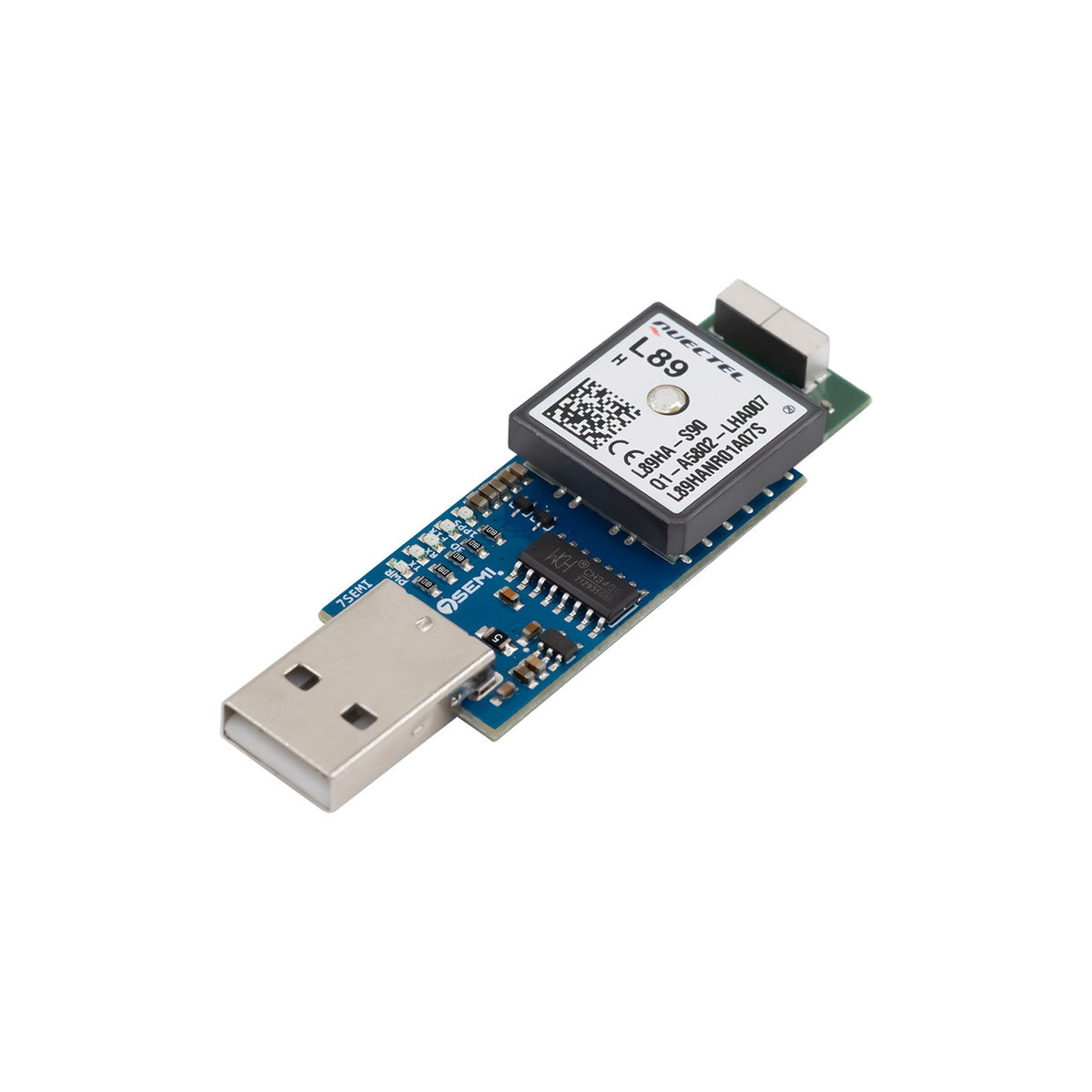

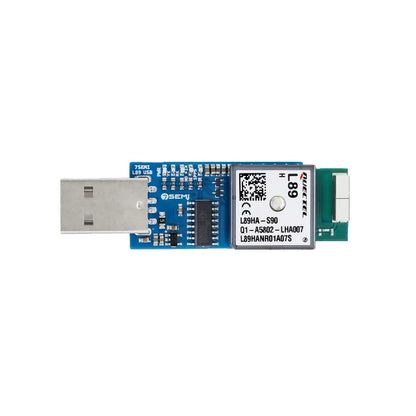

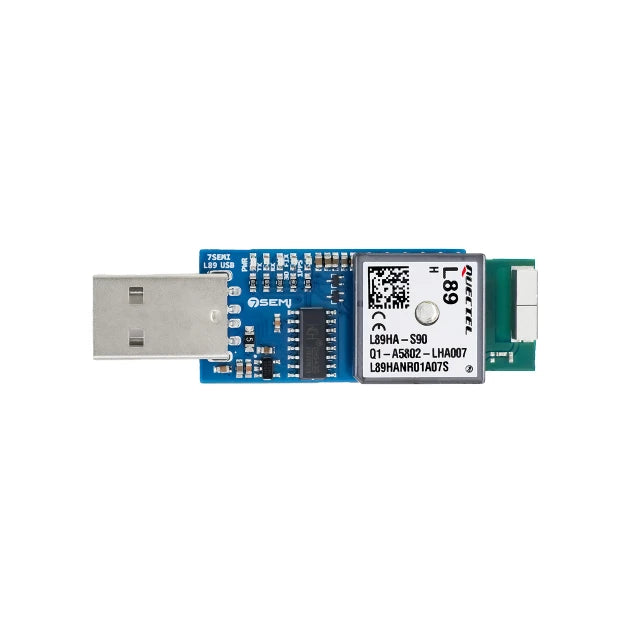

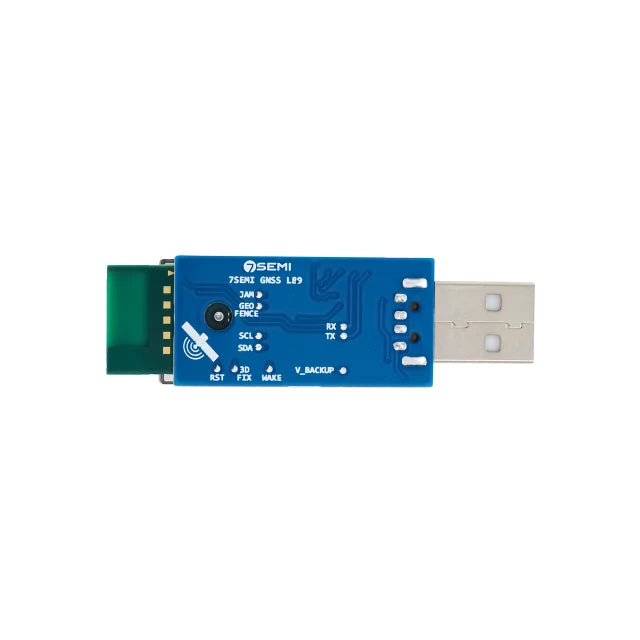

The 7Semi L89 USB GNSS Receiver is a compact and easy-to-use USB dongle designed for accurate location tracking and navigation. It supports multiple satellite systems including NavIC, GPS, Galileo, GLONASS, BeiDou, and QZSS, giving better coverage and reliable positioning. The module works on dual frequency bands (L1 and L5), which helps improve accuracy even in difficult environments like cities with tall buildings. It also includes built-in antennas and signal amplification for strong and stable signal reception. With simple plug-and-play USB connectivity, this receiver is suitable for navigation systems, tracking applications, automotive use, and industrial projects.
