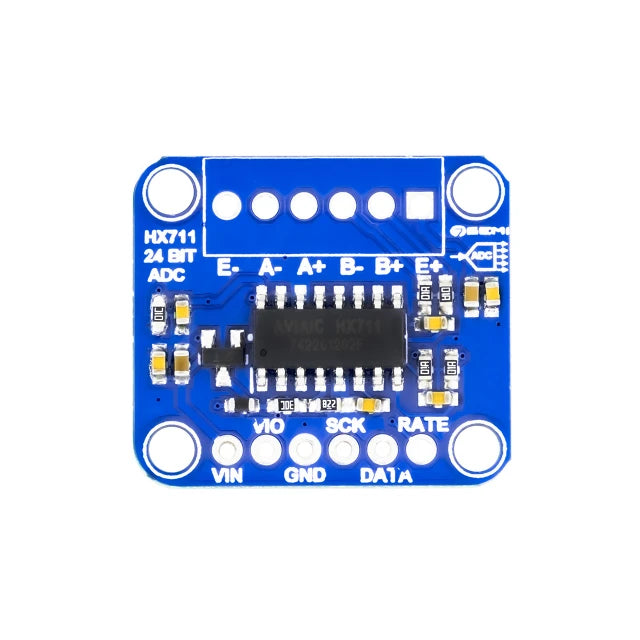

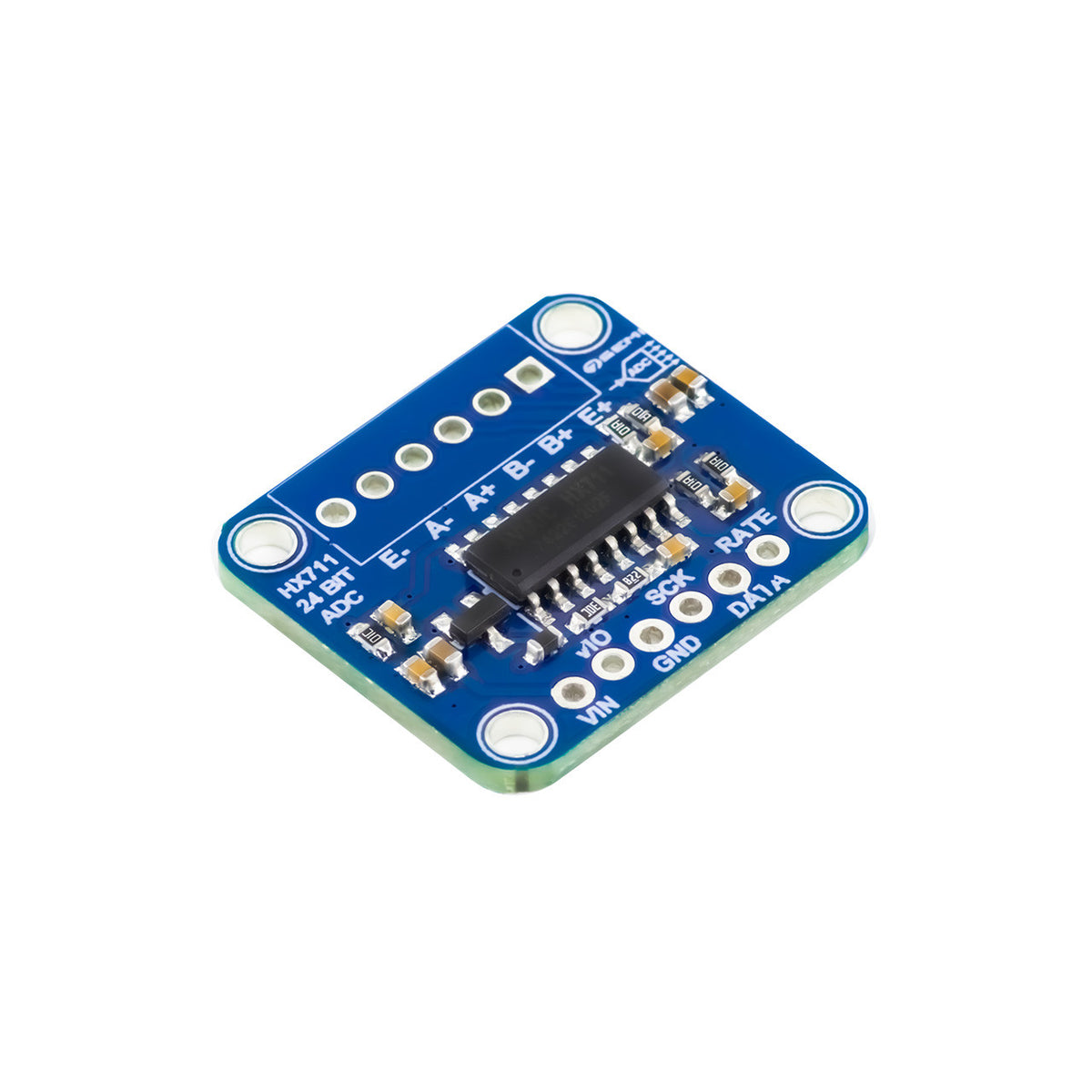

7Semi HX711 Load Cell Amplifier – 24-bit ADC for Weight Measurement

Specifications:

• TYPE OF PRODUCT : ADC FOR WEIGHT SCALE
• VOLTAGE REQUIRED : 5V

• OPERATING TEMPRATURE : -40 TO +85℃

• TOPOLOGY : (ΔΣ) + PGA

• RESOLUTION : 24 BIT

• SAMPLING RATE : 80 KSPS

• COMMUNICATION METHOD : SERIAL

• DIMENSION : L=19mm W=16mm H=2.55mm


Features:

• 24-Bit ADC: Provides very high accuracy for weight measurement.
• Load Cell Support: Works with standard 4-wire load cells.
• Dual Input Channels: Allows connection of multiple sensors.
• Programmable Gain: Selectable gain for better signal accuracy.
• Simple Interface: Uses only two wires for communication.
• Wide Voltage Range: Operates from 2.6V to 5.5V.
• Low Power Consumption: Efficient for long-term use.
• Adjustable Data Rate: Supports 10SPS and 80SPS modes.

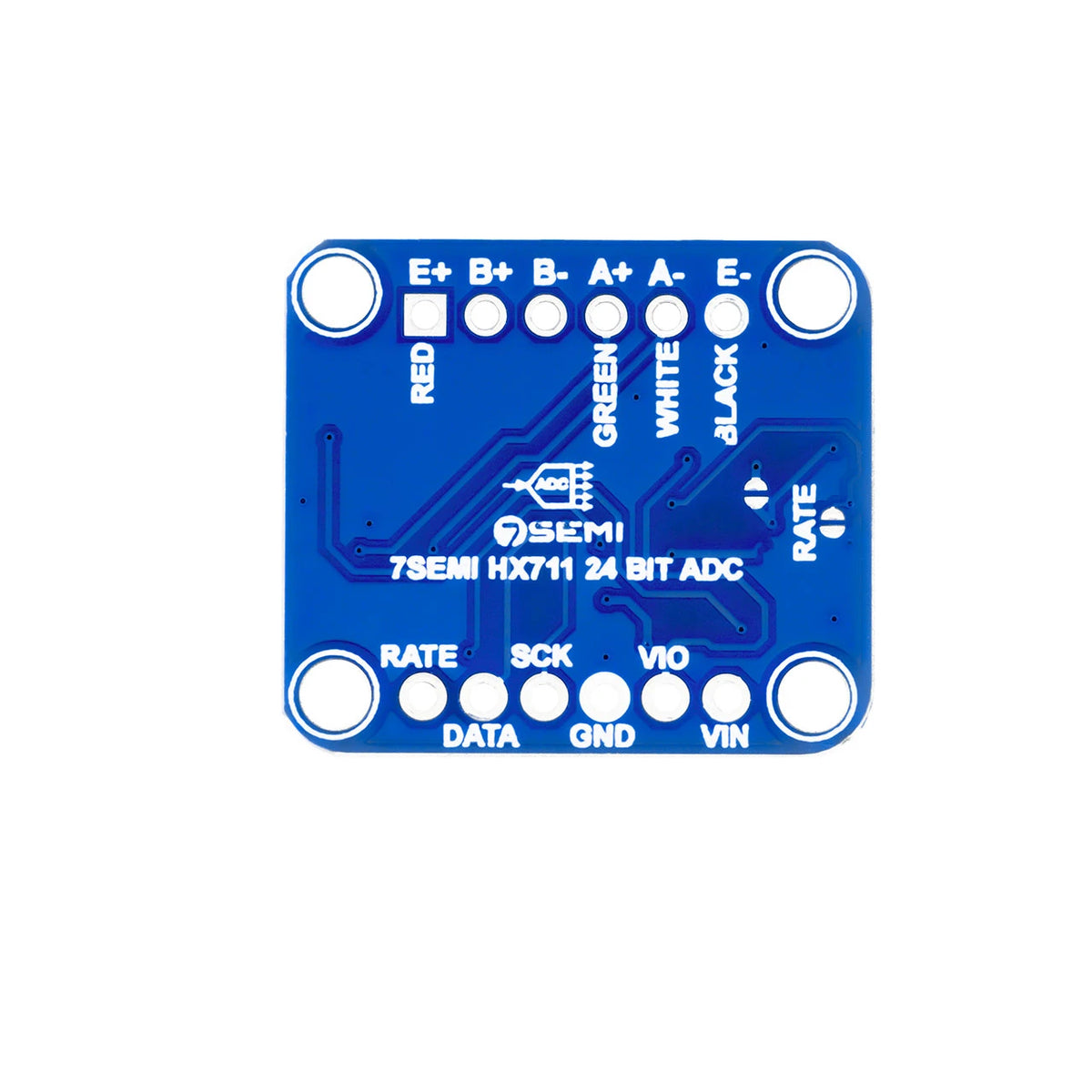

• Easy Wiring: Color-coded connections for quick setup.

The 7Semi HX711 Load Cell Amplifier is a high-precision module used for weight measurement and load sensing applications. It converts small signals from load cells into accurate digital values, making it easy to measure weight using a microcontroller. The module uses a simple two-wire interface, so it is easy to connect and use in projects. It works with a wide voltage range and supports different gain settings for better accuracy. This makes it ideal for weighing scales, industrial measurement, and automation systems.
