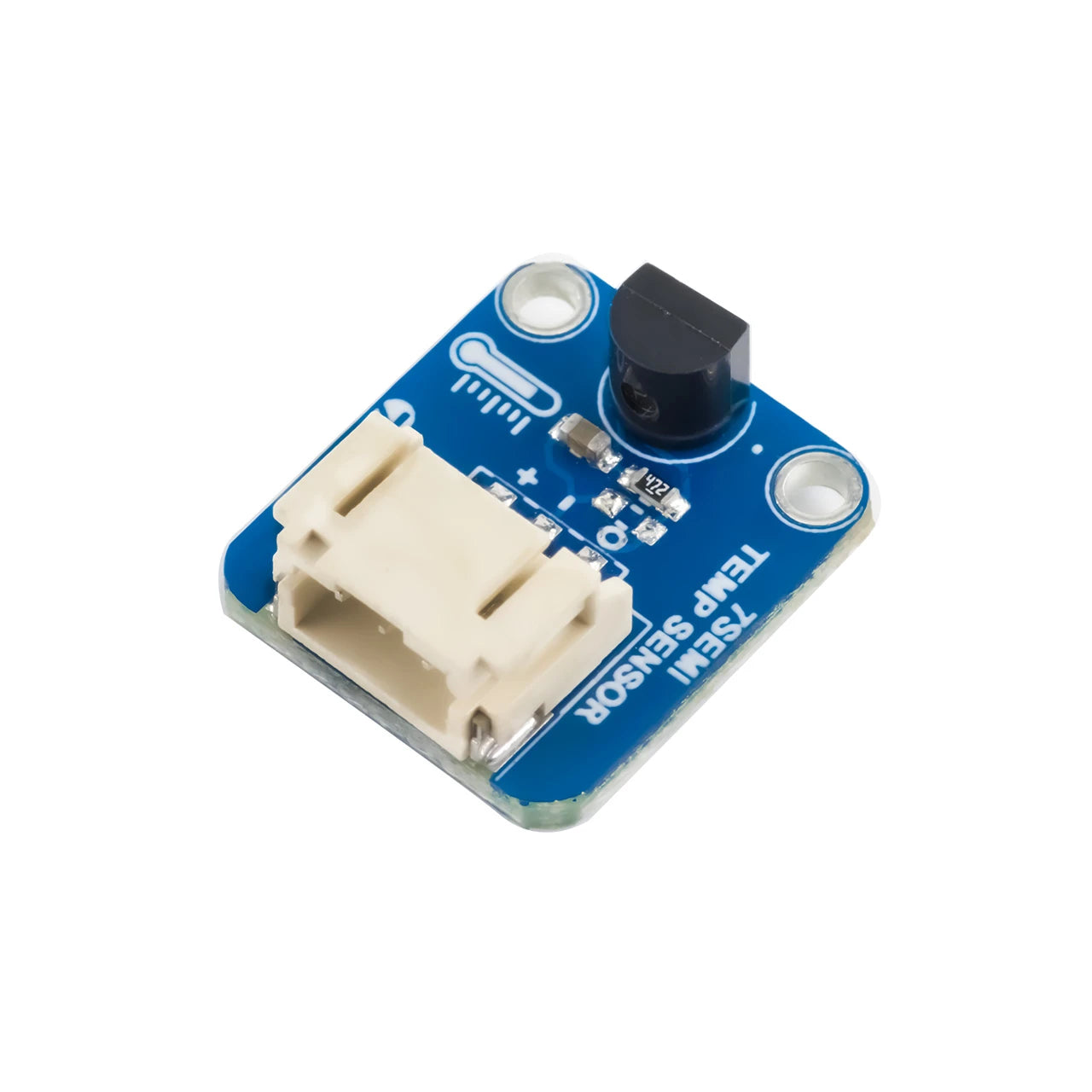

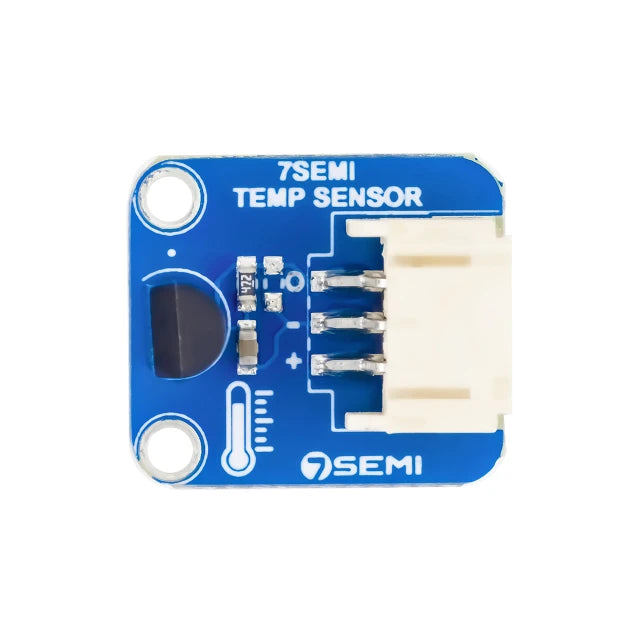

The 7Semi DS18B20+ Temperature Sensor Breakout is a digital temperature sensing module designed for accurate and efficient measurement using a 1-Wire interface. It delivers reliable performance within a temperature range of -40°C to +70°C, making it suitable for typical embedded and environmental monitoring applications. The single-wire communication simplifies wiring and supports multiple sensors on the same bus, while the compact design and 3-pin connector ensure easy integration.

Specifications:

• VOLTAGE REQUIRE: 5V

• OPERATIONAL TEMPRATURE: –40°C to +70°C

• ACCURACY: +/- 0.5 °C

• DIMENSION: L=18mm W=16mm H=7.41mm

Features:

• 1-Wire interface requiring only one data line
• Operating temperature range: -40°C to +70°C
• High accuracy: ±0.5°C (typical)
• Programmable resolution (9-bit to 12-bit)
• Supports parasitic power mode (no external supply required)
• Multidrop capability for multiple sensors on a single bus
• Unique 64-bit serial ID for each device
• Integrated EEPROM for data storage
• User-configurable nonvolatile alarm settings

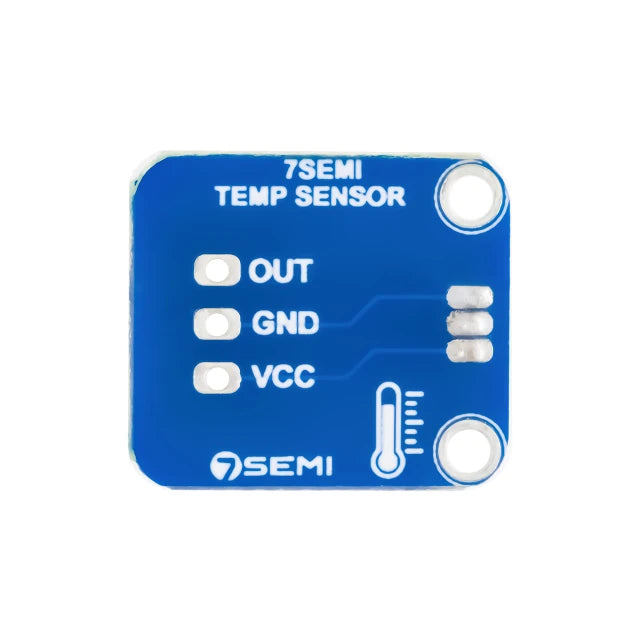

• 3-pin connector for easy integration
