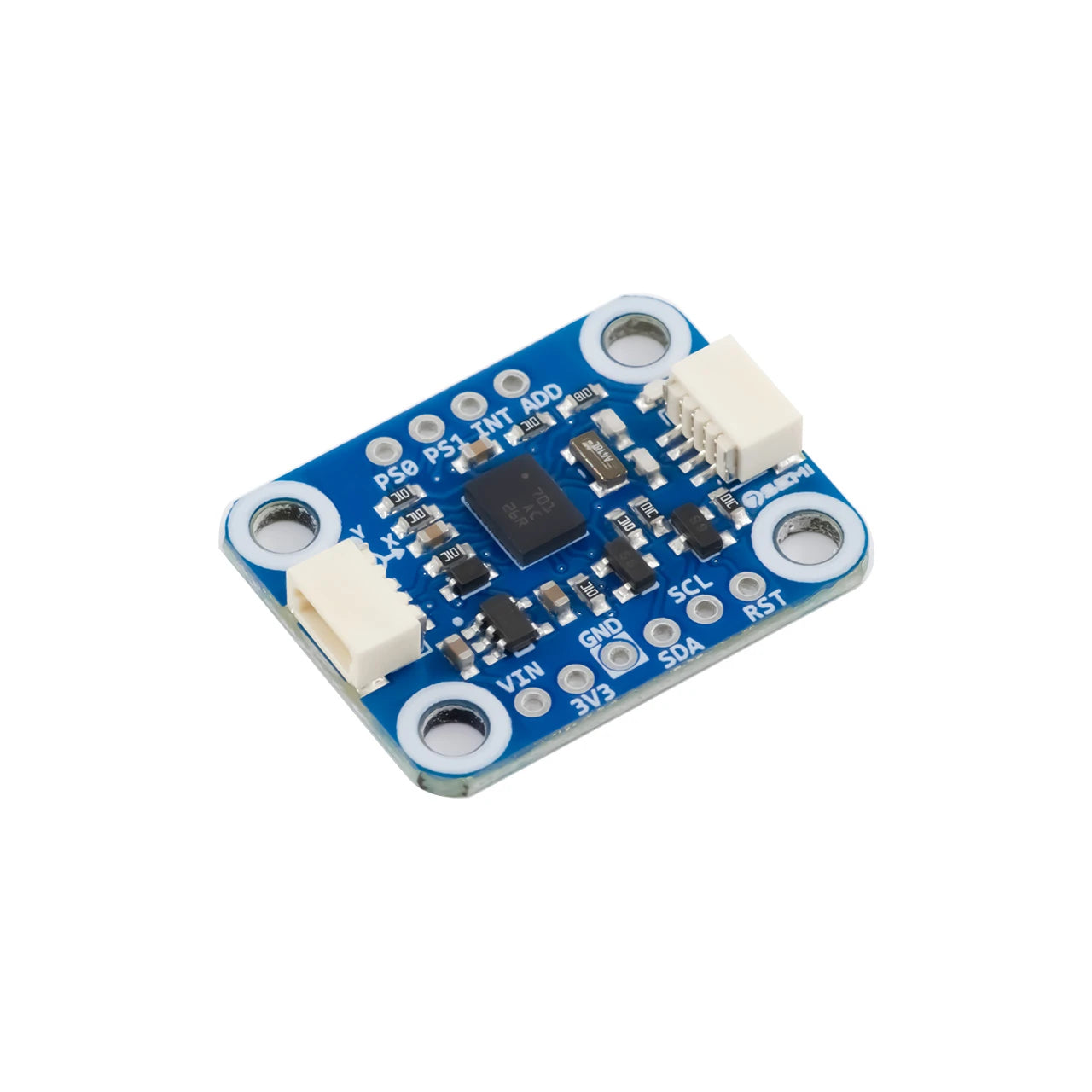

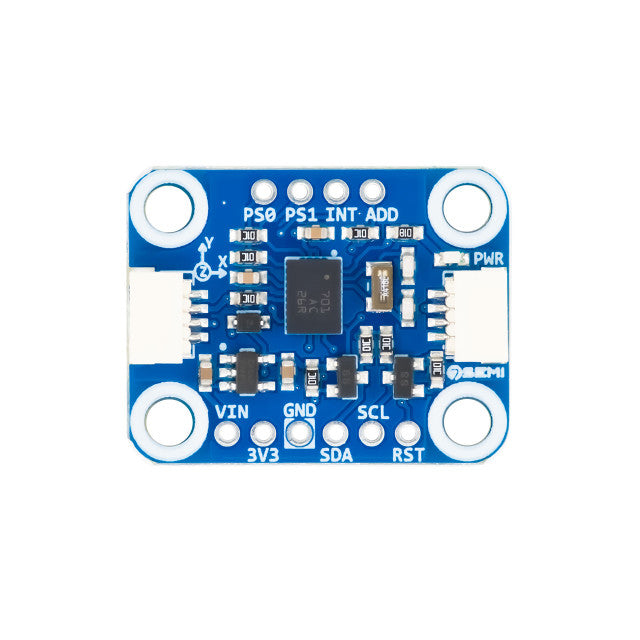

The 7Semi BNO055 Sensor Module is an advanced motion sensor that can directly give you orientation and movement data without complex calculations. It combines accelerometer, gyroscope, and magnetometer in one module and processes all data internally, so you get ready-to-use output like angles and motion values. This makes it very easy to use compared to normal sensors. It works on both 3.3V and 5V and communicates using I2C, making it simple to connect. Its compact size and stable performance make it ideal for robotics, drones, motion tracking, and other projects where accurate orientation is needed.

Specifications:

• Operating Voltage: 2.4V to 16V

• Interface: I2C

• Temperature Range: -40~85 C

• Orientation: 9 Axis

• Sensing Axis: X,Y,Z

• Sensitivity: 1 LSB/mg

• Acceleration: 2 g, 4 g, 8 g, 16 g

• Gyroscope Range: from ±125°/s to ±2000°/s

• Magnetometer Range: Magnetic field range typical ±1300µT (x-, y-axis); ±2500µT (z-axis) Magnetic field resolution of ~0.3µT

• Dimension In mm: L=27mm W=21mm H=4.75mm

Features:

• 9-Axis Motion Sensing: Combines acceleration, rotation, and magnetic sensing in one module.

• Built-in Processing: Gives direct orientation output without complex coding.

• Accurate Orientation Data: Provides angles, rotation, and motion information.

• Multiple Output Types: Supports Euler angles, quaternion, and motion data.

• I2C Communication: Simple and easy connection.

• Wide Voltage Support: Works with 3.3V and 5V systems.

• Low Power Usage: Suitable for battery-powered projects.

• Compact Size: Easy to use in small and embedded designs.

• Stable Performance: Reliable data for robotics, drones, and tracking applications.

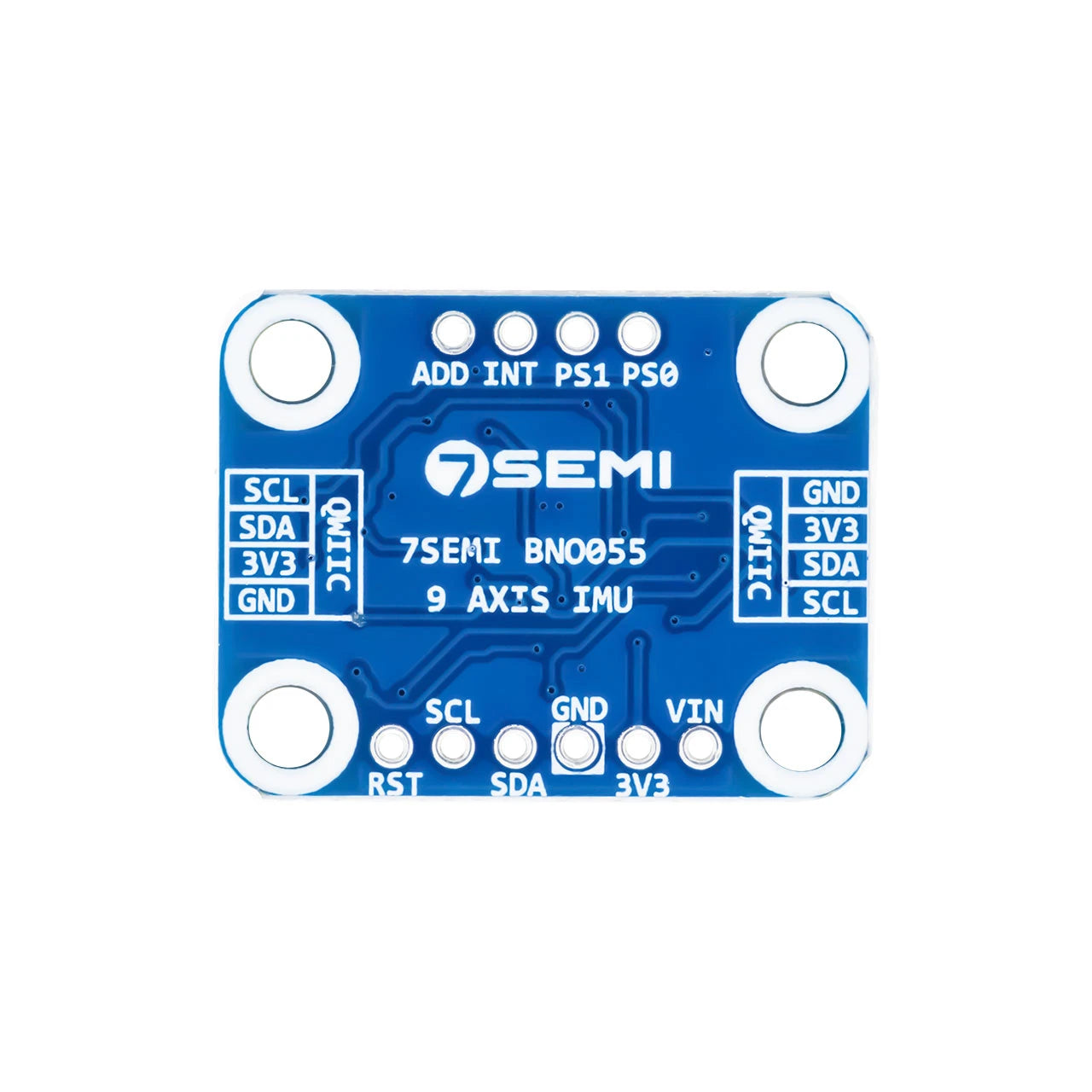

• BNO055 breakout
• 1x6 male header
• 1x4 male header
