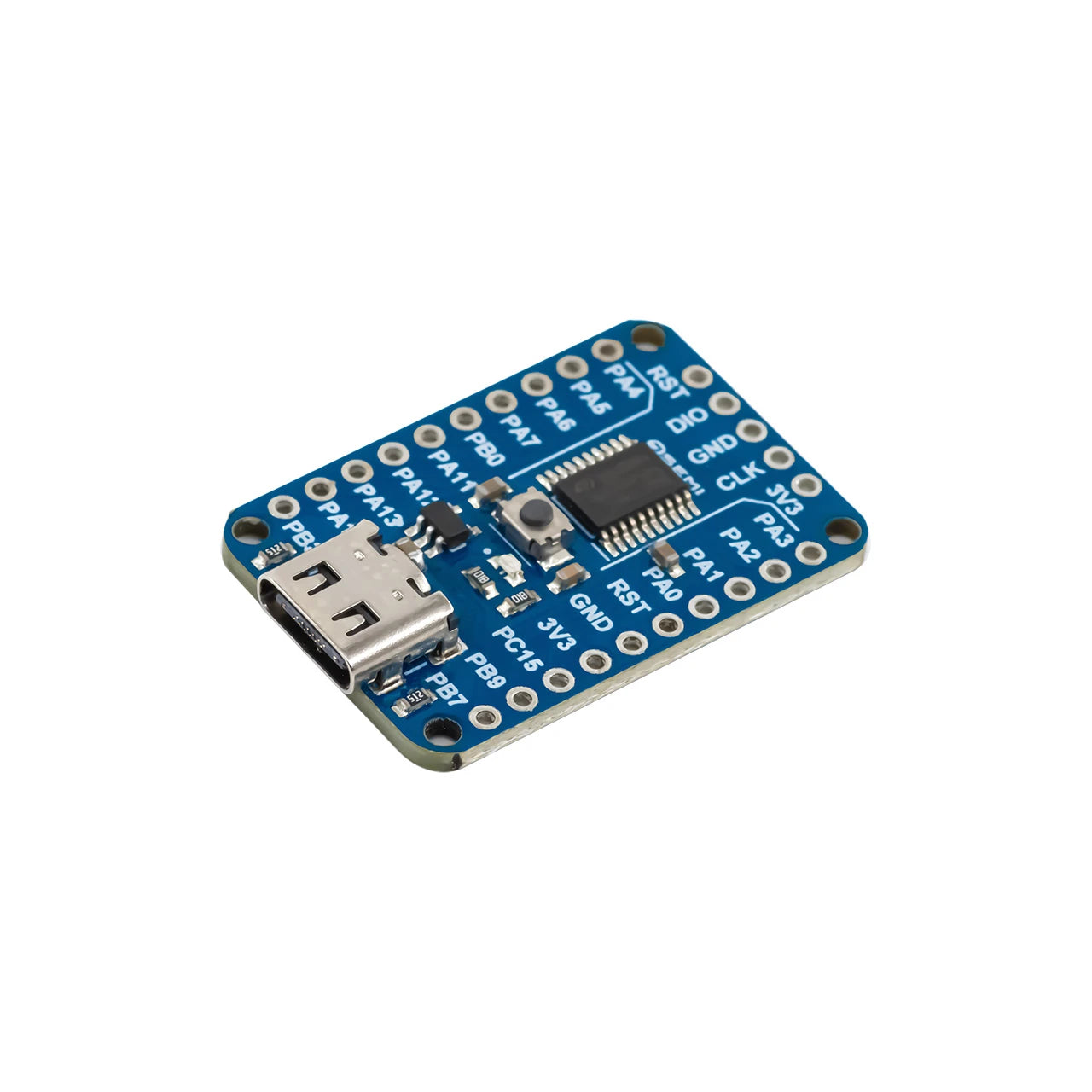

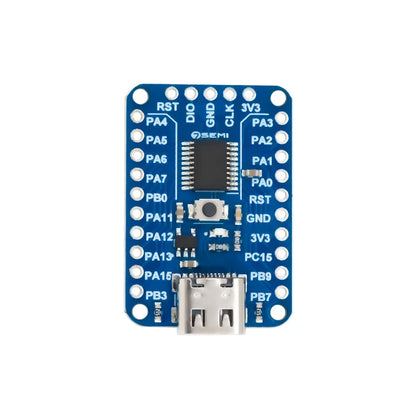

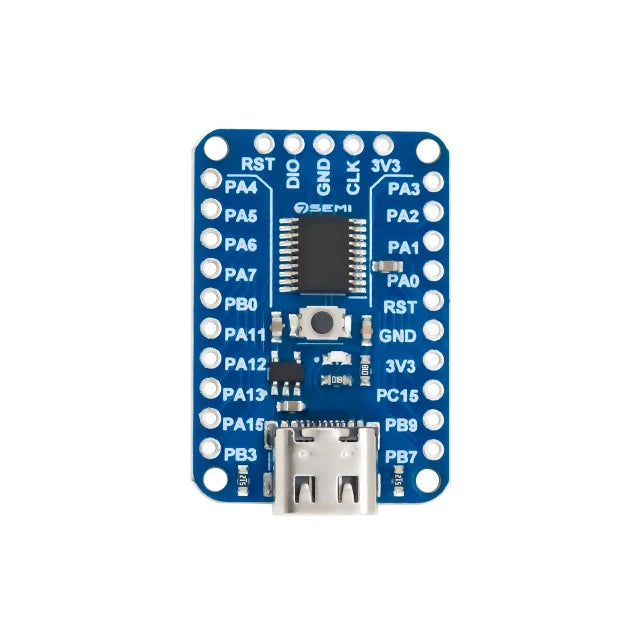

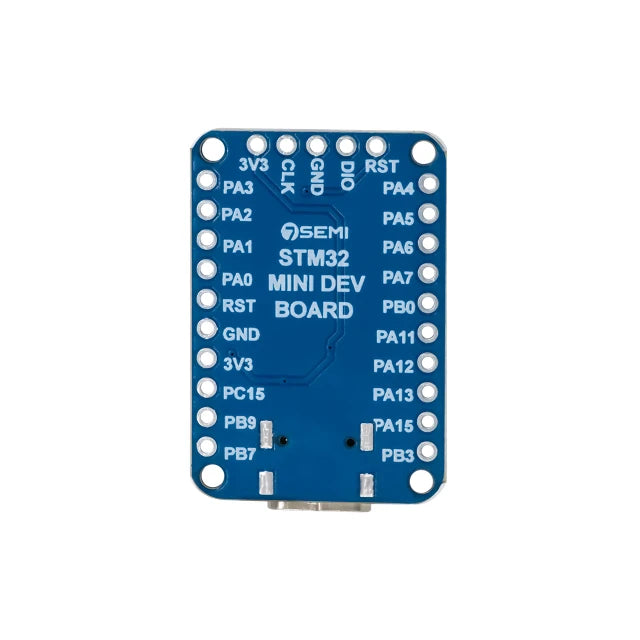

The 7Semi STM32G030F6P6 Anchor stands out as a compact development board that incorporates an ARM Cortex-M0+ core, powered by the STM32G030F6P6 microcontroller. Engineered for simplicity and functionality, this board encompasses essential circuitry required for the standard operation of the STM32F030R8T6 chip.

Effortless board powering is facilitated through the built-in USB Micro interface, ensuring convenient connectivity and operation. To streamline device debugging, a reset button is included, providing users with a simple means to reset the board when necessary. The board is also furnished with a Serial Wire Debug (SWD) program download and debugging interface, allowing for smooth programming and debugging tasks. Serving as an optimal platform for ARM Cortex-M0+ based projects, this development board caters to the needs of both beginners and experienced developers, offering a straightforward and efficient solution.

Moreover, this board is seamlessly integrable into industrial and appliance domains and is poised for Internet of Things (IoT) solutions.

Specifications:

• Operating Voltage: 3.3V

• ADC: 12-bit ADC (up to 16 channels)

• Communication Interfaces: I2C, SPI, USART

• Operating Temperature: -40°C to +85°C

• Max Clock Frequency: 64 MHz

• Flash Memory: 32 KB

• SRAM:: 8KB

• DIMENSION: L=33mm W=22mm H=4.95mm
