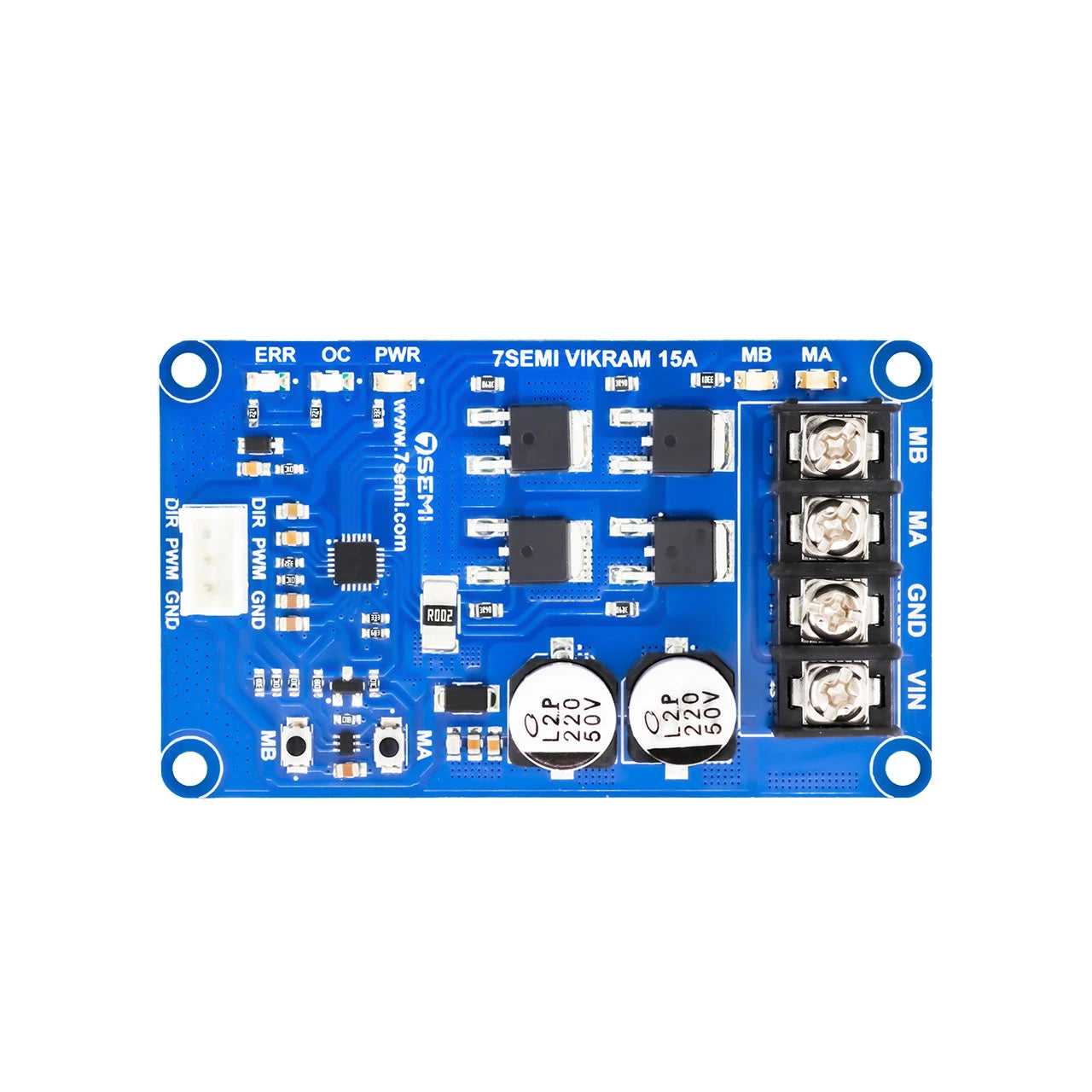

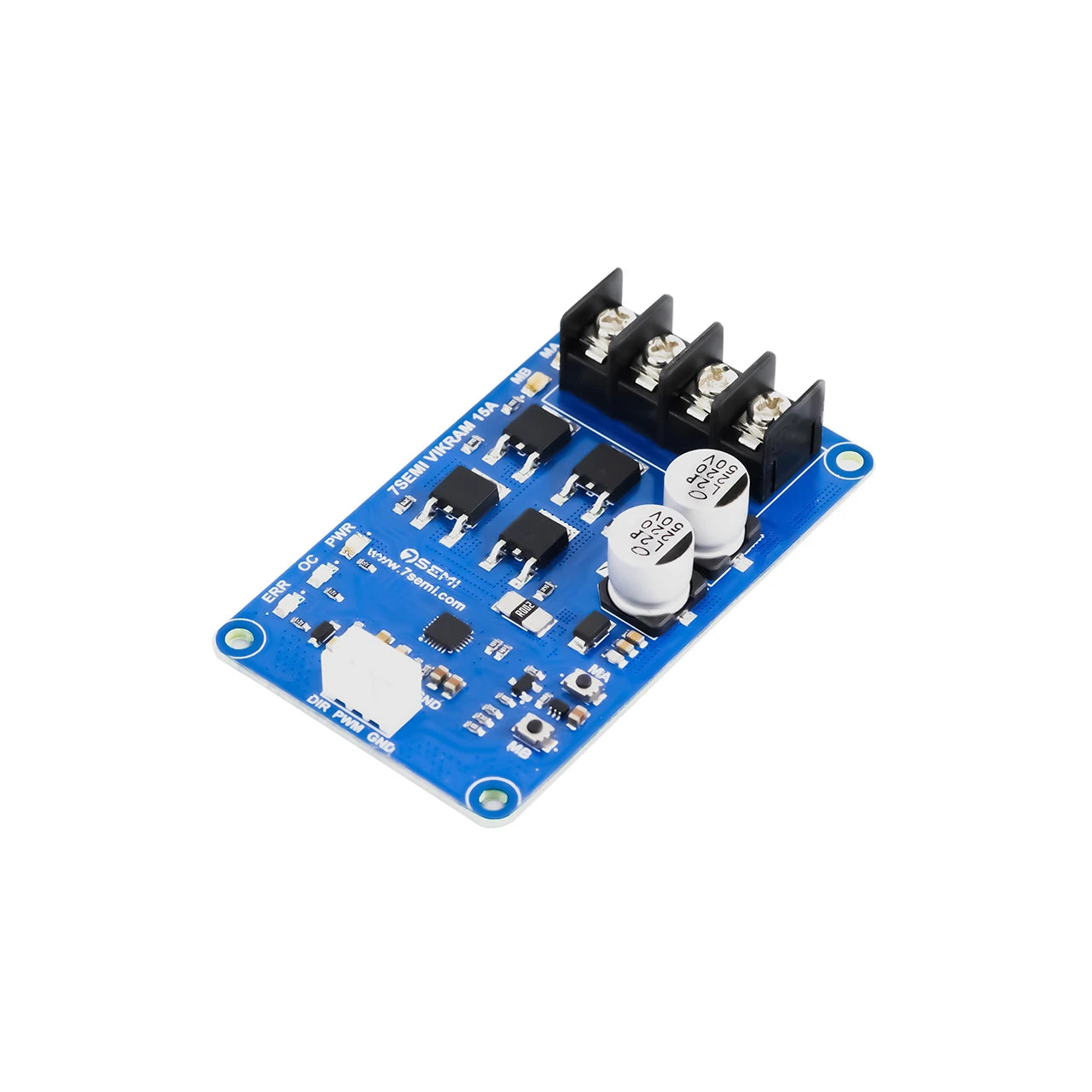

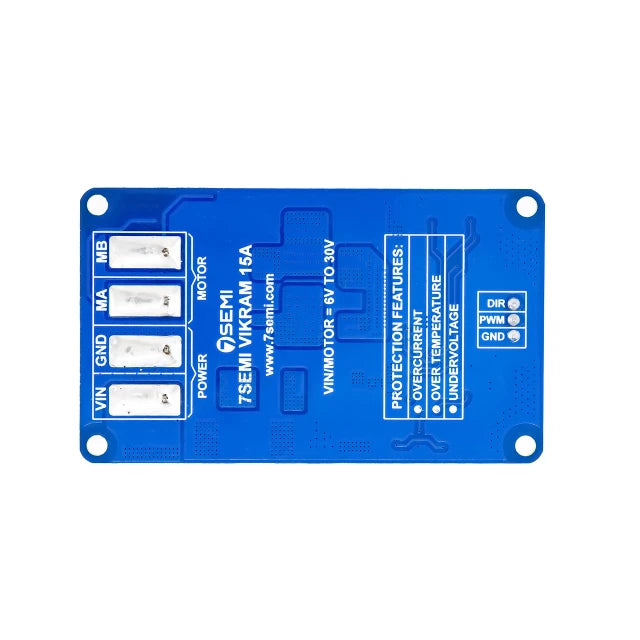

The Vikram-3015 stands as a versatile solution for controlling brushed DC motors, serving as a 30V 15A Single Channel Motor Driver. Its bidirectional control enables efficient operation within a voltage range of 6V to 30V, delivering a continuous current of 15A. User-friendliness is paramount, featuring 3.3V and 5V logic level inputs, along with test buttons and motor output LEDs for convenient testing. Safety measures include overcurrent, over-temperature, and undervoltage protection. The fully NMOS H-Bridge design ensures high efficiency, eliminating the need for a heat sink. With compatibility for PWM and DIR inputs, it suits various host controllers such as Arduino, Raspberry Pi, and PLCs.

Specifications:

• VOLTAGE REQUIRED (V): 5V TO 12V

• OPERATIONAL TEMPRATURE: -40°C to +70°C

• CONTINOUS CURRENT: 10A

• PEAK OUTPUT CURRENT: 15A
• TOPOLOGY: SINGLE CHANNEL H BRIDGE
• DIMENSION IN mm: 74 X 44 X 14.92

• Bi-directional control for single channel brushed DC motor
• Operating voltage voltage range 6V to 30V
• Continuous current 15A
• 3.3V and 5V logic level input.
• Buttons for quick testing.
• LEDs for motor output state.
• Overcurrent protection
• Over Temperature protection.
• Undervoltage shutdown.
• Fully NMOS H-Bridge for better efficiency and no heat sink is required
