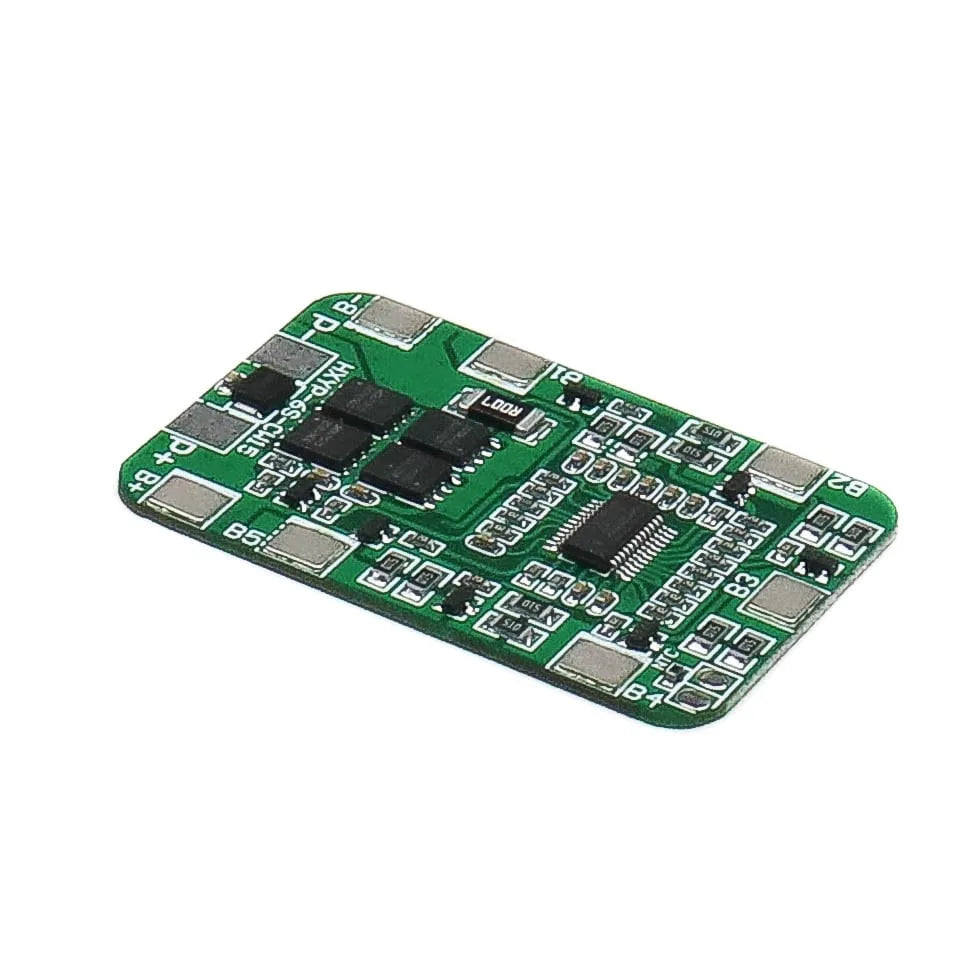

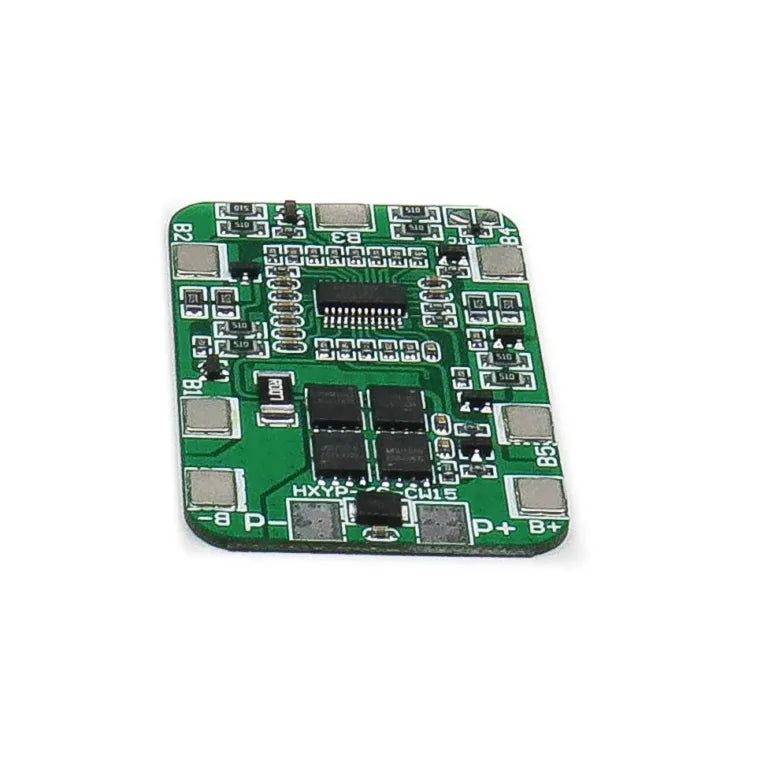

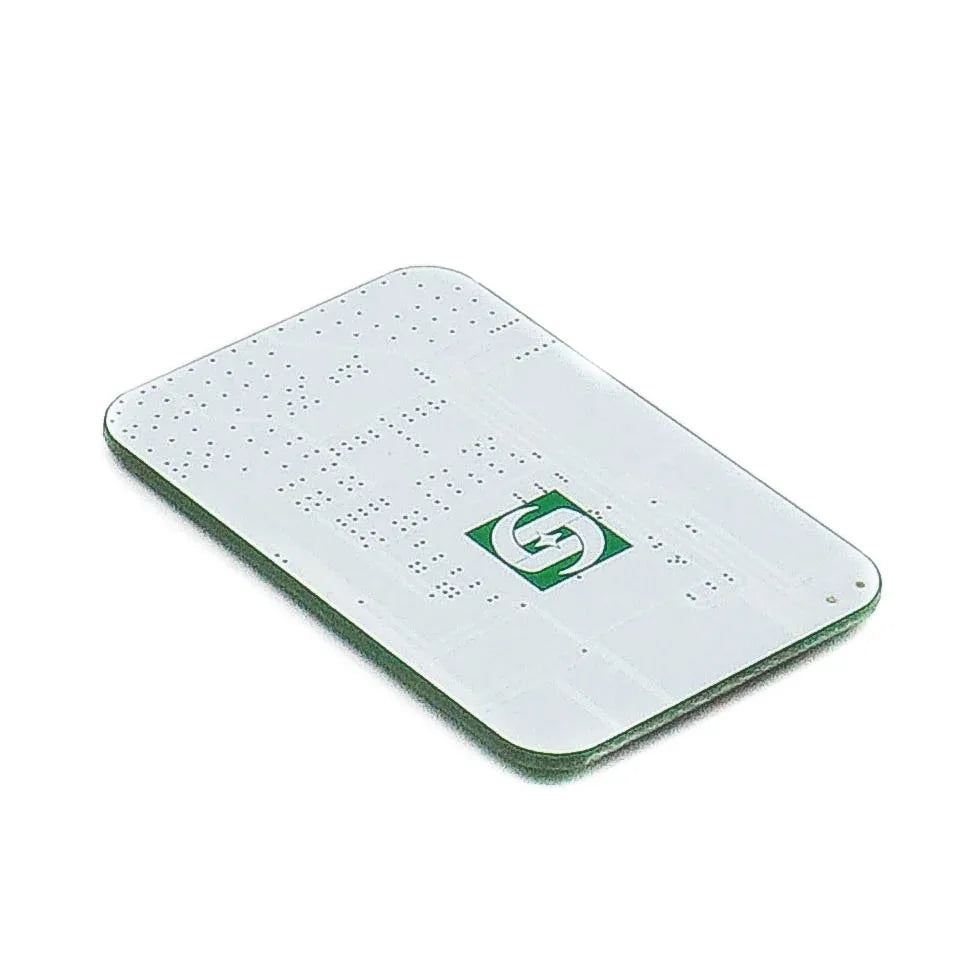

Introducing the 6S 20A Li-ion Lithium Battery 24V 18650 Charger Protection Board Module, a compact PCB-mounted solution for charging and protecting lithium-ion batteries. This module is equipped with a range of essential features including short circuit protection, overcharge protection, over-discharge protection, and overcurrent protection. It’s the perfect choice for integrating into your DIY portable projects.
Features:
- Designed for rechargeable lithium-ion batteries to ensure safety and reliability.
- Provides protection against overcharge, over-discharge, short circuits, and overcurrent.
- Easy to install and suitable for various DIY portable projects.
- Instantaneous discharge current: 25A
- Charging voltage: 25.5V
- Charging current: 20A (MAX)
- Overcharge detection voltage: 4.28 ± 0.05V
- Overcharge protection delay: 0.1S
- Over-discharge detection voltage: 2.55 ± 0.08V
- Overcharge release voltage: 4.08 ± 0.05V
- Over-discharge detection delay: 0.1S
- Over-discharge release voltage: 2.9 ± 0.1V
- Overcurrent detection voltage: 150mV
- Overcurrent detection delay: 9MS
- Overcurrent protection current: 30 ± 3A
- Overcurrent protection release condition: Disconnect the load
- Short circuit detection delay: 250uS
- Short circuit protection release condition: Disconnect negative open
- Main circuit conduction resistance: ≤20mΩ
- Working current: ≤30uA
- Sleep current (battery over-discharge): ≤10uA
- Temperature range: -30°C to 80°C
Package Includes:
1 x 6S 20A 24V 18650 BMS Lithium Battery Protection Board
