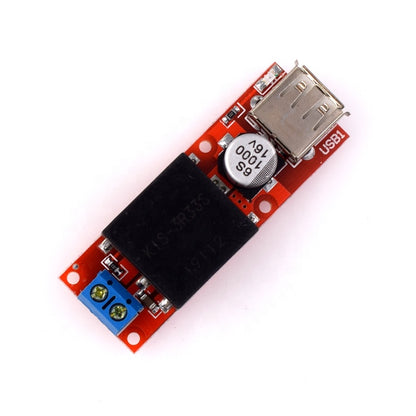

KIS3R33S DC 5V USB Output Converter 7V-24V To 5V 3A Buck DC-DC step-down power module HW273
KIS3R33S DC 5V USB Output Converter 7V-24V To 5V 3A Buck DC-DC step-down power module HW273
Couldn't load pickup availability
1. Modules nature: Non-isolated buck
2. Rectification: Non-synchronous rectification
3. Input voltage: DC 7V - 24V
4. Output voltage: DC 5V
5. Output current: 4A(short time)
6. Conversion efficiency: 96% (MAX)
7. Switching frequency: 340KHz
8. Output ripple: 30mV(max)
9. Load regulation: +/- 0.5%
10. Voltage regulation: +/- 2.5%
This 5V USB output converter module is based on the KIS3R33S module specific design, the input voltage 7V to 24V, output voltage 5.01V 2.5A peak output current of 4A continuous output. Able to provide 3A continuous load current. The majority of players professional testing, with high efficiency, ultra-low loss characteristics, beyond perfect lm2596 power module. This module has a USB recognition. This module uses the original Sanyo low ESR filter capacitor voltage as low as possible so that the ripple 30mV, fully capable and linear power comparable. IN-(input negative), IN + (positive input), OUT-(negative output), OUT + (positive output) must be connected to the right, otherwise may cause damage to the module
