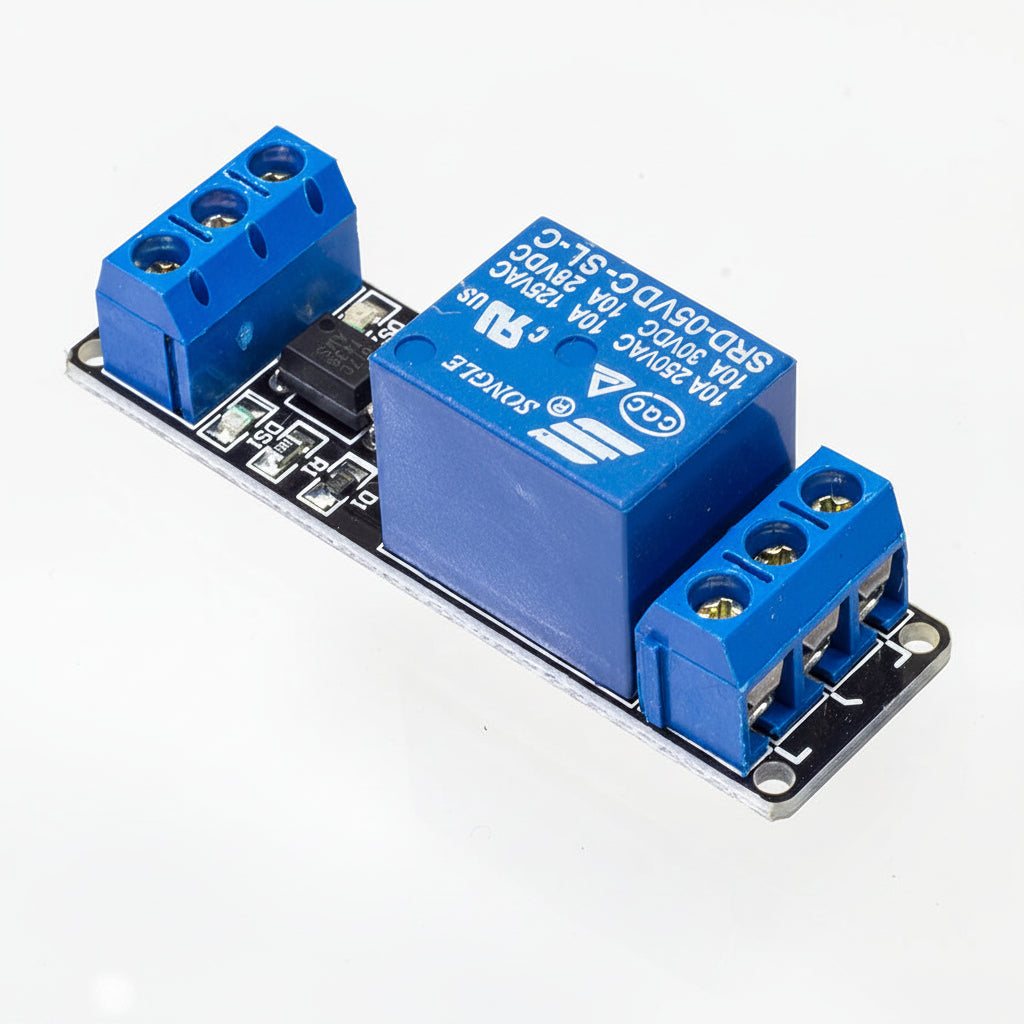

5V 1Ch 10A Relay Module with Optocoupler

This 1 channel 5V 10A relay control board module with optocoupler modules is compliant with international safety standards, control and load areas isolation trenches it has a single relay a genuine. The inputs of 5V 1-Channel Relay 10A Relay Module are isolated to protect any delicate control circuitry. The power supply and relay instructions, lit, a disconnect are off. The input signal, signal, common Terminal and start conducting. It can be used as a single chip module for appliance control and work with both DC or AC signals where you can control the 220V AC load. A wide range of microcontrollers such as Arduino, AVR, PIC, ARM and so on can control 1 channel 5V 10A Relay Control Board Module with Optocoupler.

• Channel: 1 channel

• Relay Voltage: 5V

• High impedance controller pin

• Pull-down circuit for the avoidance of malfunction

• One normally closed contact and one normally open contact

• Triode drive, increasing relay coil

Features :

• High impedance controller pin
• Pull-down circuit for the avoidance of malfunction
• One normally closed contact and one normally open contact
• Triode drive, increasing relay coil
• Power supply indicator lamp
• Control indicator lamp
• With 4 fixed screw holes, hole diameter 3.1mm, convenient installation, and fixation

Note: On the high level and low level-triggered mode, friends who do not understand, have a look

• High-level trigger refers to the signal voltage between input and trigger, can be understood as a signal input with VCC cathode short-circuit triggered a way;
• Low-level trigger refers to the signal voltage between the input terminal and Earth OV trigger, can be understood as a signal input terminal and the GND negative electrode short circuit triggered is a way  1-channel relay module connection.

Package Include :

1 x 5V 1Ch 10A Relay Module with Optocoupler
