400W 15A DC-DC Step Up Boost Converter DC 8.5V-50V To DC 10V-60V 15A Constant Current Power Supply Voltage Regulator Module
400W 15A DC-DC Step Up Boost Converter DC 8.5V-50V To DC 10V-60V 15A Constant Current Power Supply Voltage Regulator Module
Couldn't load pickup availability

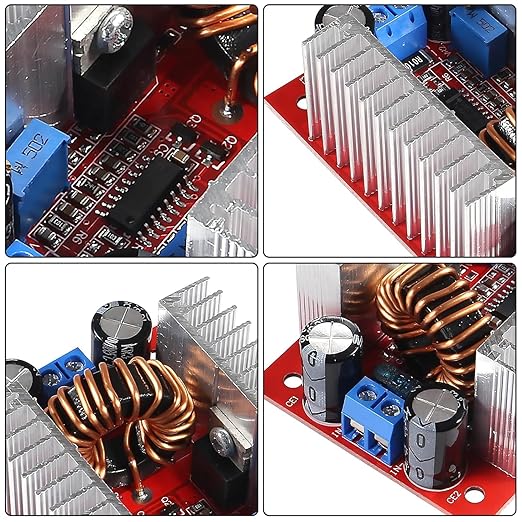

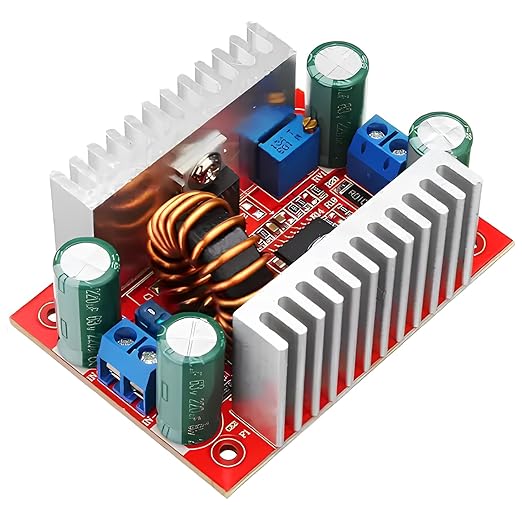

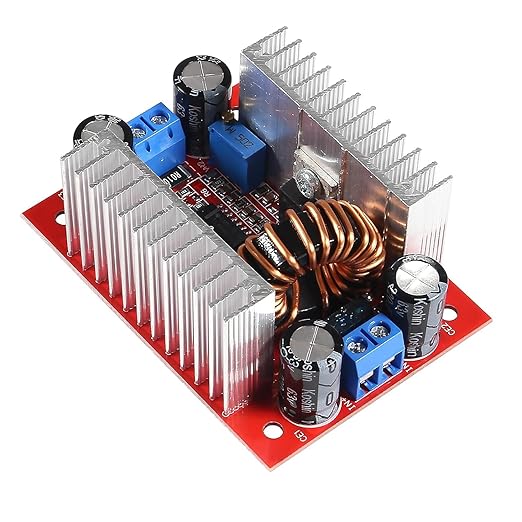

The 400W 15A DC-DC Boost Converter Step-up Module is a handy power accessory board that allows you to fine-tune the amount of power your project receives. This converter can take an input voltage of anywhere from DC 8.5V-50V which can then be regulated to an output voltage between 10-60V continuously adjustable. With a wide input voltage range from 8.5V-50V, the Step-up converter can accurately adjust the output voltage and current. The Boost module has 2 heat sink that could enhance heat dissipation. Wiring is convenient with these large current 15A screw terminals. TAgs, Adjustable Power Supply Module, Buck converter, DC to DC Booster, DC to DC Converter, DC-DC Step-Up Boost Converter, DC-DC Step-Up Boost Converter Adjustable Power Supply Module, Module, Sensors and Modules, Step-Down Buck converter, XL4016.
Features:
- Module name:400W boost constant current module
- Module properties: non-isolated step-up module (BOOST)
- Input voltage: DC8.5V-50V
- Input current: 15A (MAX) exceeds 8A please enhance heat dissipation
- Quiescent current: 10mA (12V liter 20V, the output voltage, the higher the current will increase too quiet)
- Output voltage: 10-60V continuously adjustable
- Constant] range: 0.2-12A
- Temperature: -40 to + 85 degrees (ambient temperature is too high, please enhance heat dissipation)
Features/Specs:
- Module Name: 400W boost constant current module
- Module properties: non-isolated step-up module (BOOST)
- Input voltage: DC 8.5V-50V
- Input current: 15A (MAX) exceeds 8A please enhance heat dissipation
- Quiescent current: 10mA (12V liter 20V, the output voltage, the higher the current will increase too quiet)
- Output voltage: 10-60V continuously adjustable
- Constant] range: 0.2-12A
- Operating frequency: 150KHz
- Conversion efficiency: up to 96%
- Overcurrent protection: yes
- Input reverse polarity protection: no
- Screw Holes Size: 2.55mm
- Connection Method: Connection Output

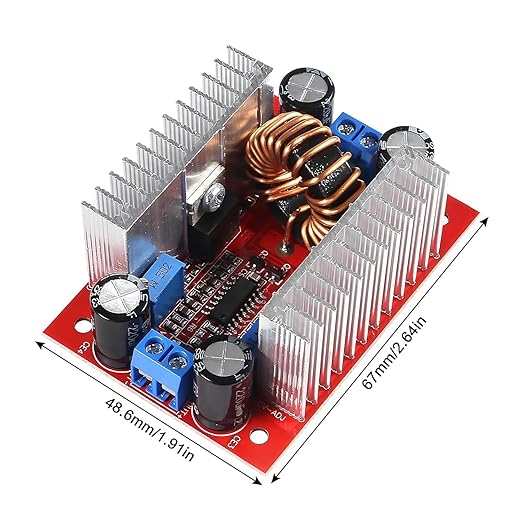

- Length: 67mm
- Width: 48mm
- Height:28mm
- Weight: 65 gm
Applications:
- High-power LED driver.
- Lithium battery(or lead accumulator) charge.
- Vehicle-mounted power supply.
- Low voltage system power supply.
- 6V, 12V, 14V, 24V Battery charge.
- On-board laptop power supply.
- Regulated power supply.
- Low voltage power supply system.
Package Includes:
- 1 x 400W DC-DC Step Up Boost Converter DC 8.5V-50V To DC 10V-60V 15A Constant Current Power Supply Voltage Regulator Module
