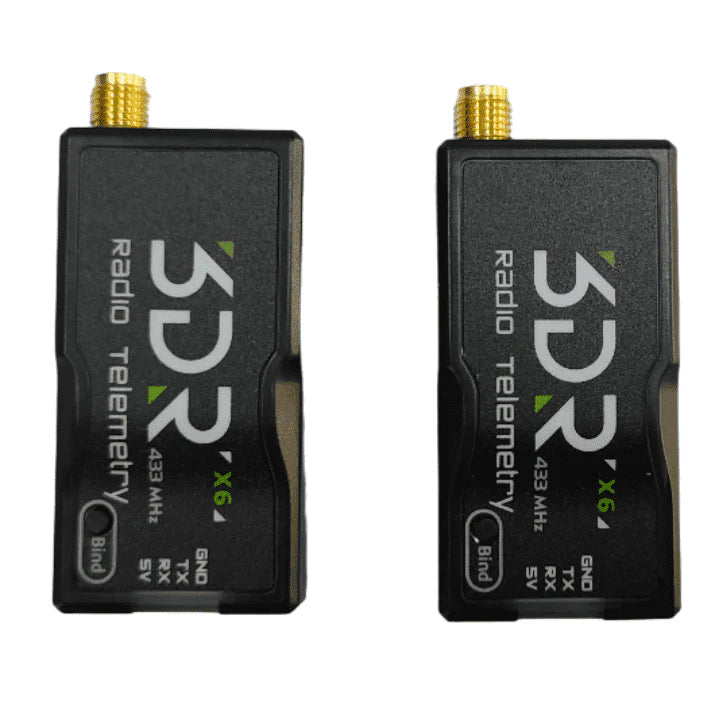

3DR 433Mhz 100MW Radio Telemetry Kit (X6)
Couldn't load pickup availability
- Dispatched in 24 hrsExcept Sundays and public holidays
- GST invoiceInput tax credit for businesses
- ReplacementFor transit damage or wrong item
This set of 3DR Radio Telemetry Module 433MHz 100mW allows you to establish a connection between a flight controller and a USB or UART-enabled device, such as a computer, laptop, or tablet with USB compatibility (OTG).
The latest version 2 radios no longer require a separate Air/Ground module, as both transceivers can now use both UART or USB connections, and support both modes.
This radio set not only allows you to view real-time data, such as live GPS position overlaid on a map, system voltage, heading, waypoint navigation, and even an artificial horizon, but also offers much more.
By using an open-source MAVlink based ground station software, you can even fly your aircraft with a joystick via your computer and update settings in real-time. Alternatively, you can use it for your DIY projects that require a wireless Serial interface.
This kit is cost-effective, has longer range, and offers superior performance. The system operates on the 433MHz band and provides a full-duplex link using HopeRF’s HM-TRP modules running custom, open-source firmware.
Features
- MAVLink protocol framing status documents
- Frequency modulation and Spread Spectrum (FHSS)
- Self-adaption to time division multiplexing
- Support LBT and AFA
- Configurable duty cycle
- Built-in error correcting code(up to 25% data bit error)
- AT command configure data transmission
- RT command remote control data transmission
- Interchangeable air and ground 433MHz modules
- Micro-USB port
- 6-position Molex connector
- 250mW maximum output power (adjustable)
- SMA connector
- 2-way full-duplex communication through adaptive TDM
- UART interface
- Transparent serial link
- Open-source SIK firmware
- Configurable through *Mission Planner and *APM Planner
- Based on the HM-TRP wireless module, with Si1000 8051 microcontroller and Si4432

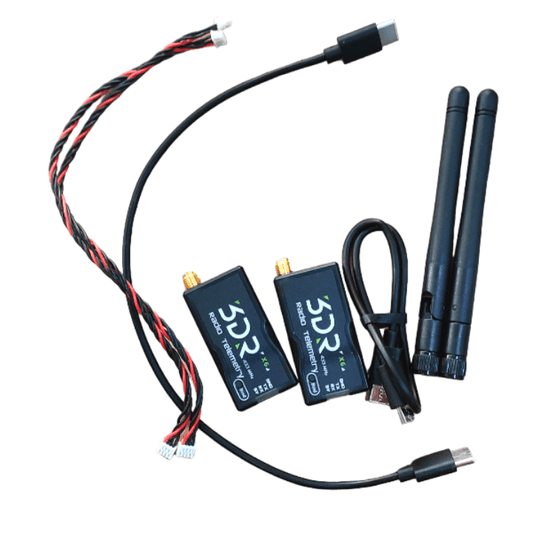

Package Includes:
- 2 x 433mHz Radio Telemetry
- 1 x 30cm Type C to Type C cable
- 1 x 30cm Micro USB to Type C cable
- 2 x Lead cable
- 2 x TX433-JK-11 Antenna
Specifications:
| Frequency Range |
433MHz |
| Rated Power (W) |
100mW |
| Sensitivity (dBm) |
-124 |
| Operating Voltage (VDC) |
3 ~ 6 |
| Max. Operating Current (mA) |
500 |
| Module Size (LxWxH) mm |
54 x 260 x 12 |
| Antenna Length (mm) |
110 |
| Weight (gm) |
33 |
