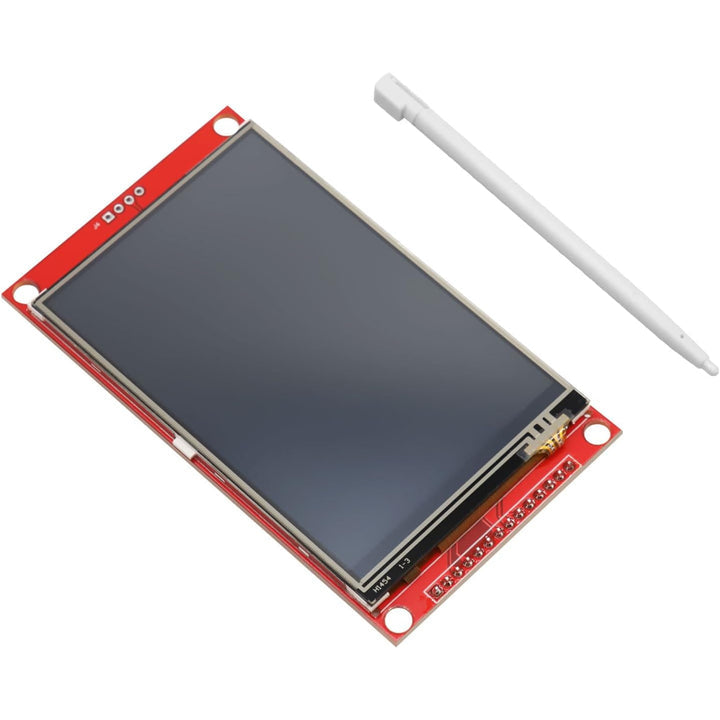

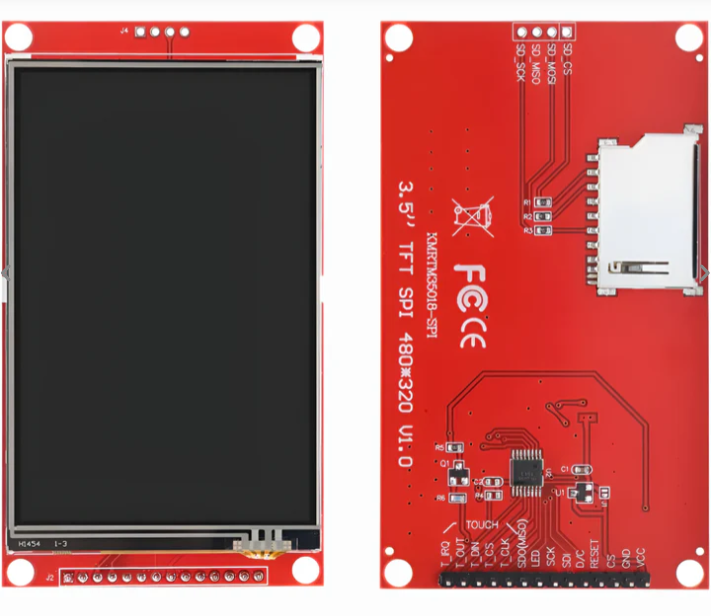

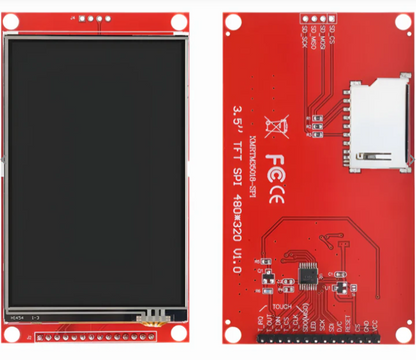

3.5" inch SPI Interface TFT Display Module

Features:

• High-Quality Color Display: 3.5-inch screen supporting 65K colors, delivering vibrant and rich visuals.
• High Resolution: 480×320 resolution, ensuring sharp and detailed images and text.
• Touch Functionality: Optional resistive touch functionality for interactive applications.
• SD Card Slot: Built-in SD card slot for easy storage expansion and data integration.
• Comprehensive Sample Programs: Comes with a variety of sample programs to kickstart your projects.
• Military-Grade Process Standards: Designed for long-term, stable operation with robust build quality.
• Driver Support: Includes low-level driver technical support for seamless integration.
• SPI Serial Bus: Operates using SPI, requiring only a few IO pins to control the display, making it suitable for microcontroller-based projects.

Technical Details:

• Display Color: RGB 65K color
• Screen Size: 3.5 (inch)
• Type: TFT
• Driver IC: ILI9488
• Resolution: 480 × 320 (Pixel)
• Module Interface: 4 Wire SPI Interface
• Active Area (AA area): 48.96 × 73.44 (mm)
• Module PCB Size: 56.34 × 98 (mm)
• Operating Temperature: -20℃ ~ 60℃
• Storage Temperature: -30℃ ~ 70℃
• VCC Power Voltage: 3.3V ~ 5V
• Logic IO Port Voltage: 3.3V (TTL)
• Weight (g): 56

Package Includes:

• 1 x 3.5" SPI Interface TFT ILI9488 18bit Display Screen Module With Touch Screen With Memory Card Extension
• 1 x Stylus
