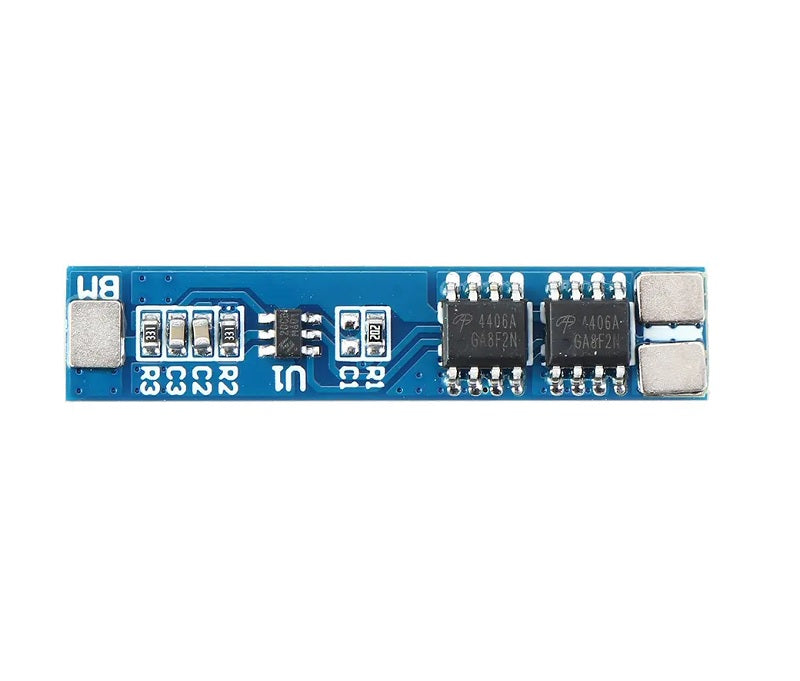

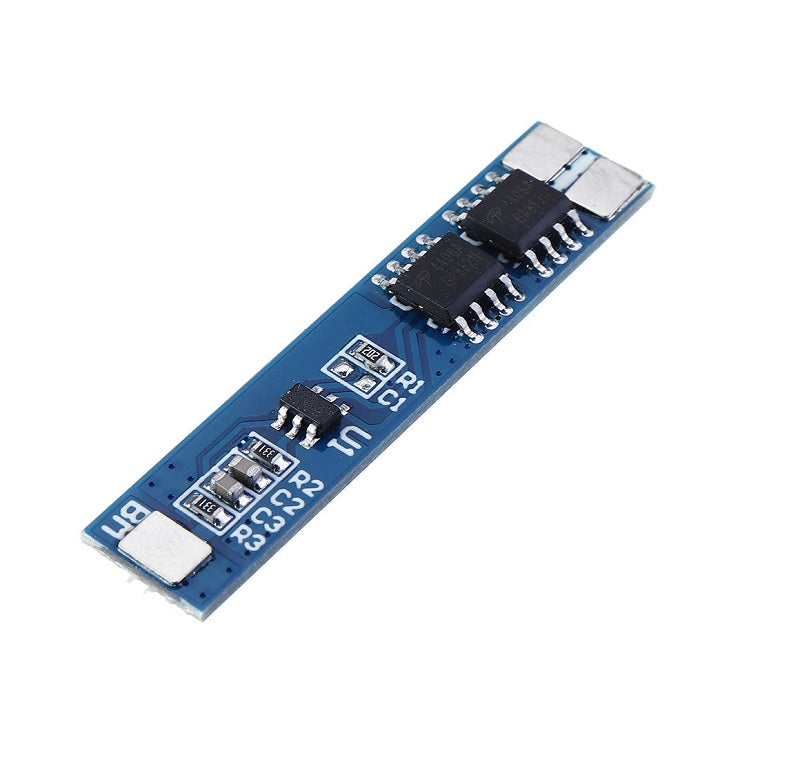

2S 5A 8.4V 18650 Lithium Battery Charger Board Protection Module has the main IC using original “precision” imported components. With overcharge, over-discharge, over current, and short circuit protection function, for a variety of different shapes of 3.7V capacity lithium batteries. Using the Japanese precision protection IC, VISHAY, AOS, IR, and other high-quality MOSFET, an FR-4 low-temperature coefficient of the plate, a well-designed, comprehensive test. Compact size, suitable for many requirements of high integration, and low-cost occasions, can meet the performance requirements of many aspects, to ensure the absolute safety of the battery group.

Features:

• Maximum Working Current: 5A
• Transient Current: 7A.
• Operating Temperature: -40-50℃
• Internal Resistance: Less than 45m Ω

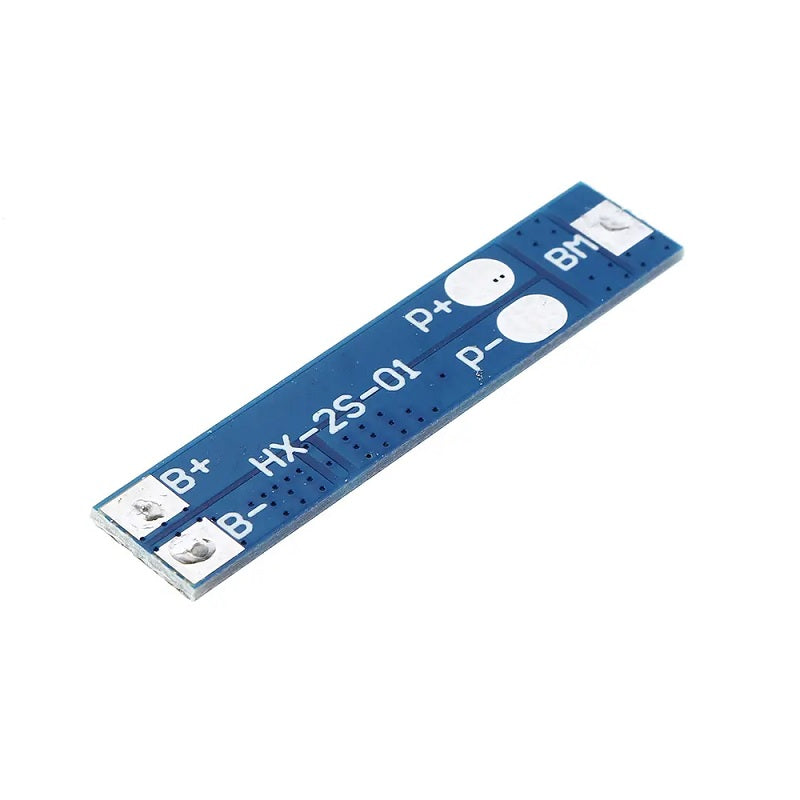

• B+ B-: The interface of battery core
• P+ P-: The connector of the battery board
• Battery: 2 Cell
• Input Voltage: 8.4 ~ 9V
• Overcharge detection voltage: 4.25 ± 0.025V
• Over-discharge detection voltage: 4.25 ± 0.025V
• Over current Protection: 7A

Package Includes:

1 x 2S 5A 8.4V 18650 Lithium Battery Charger Board Protection Module
