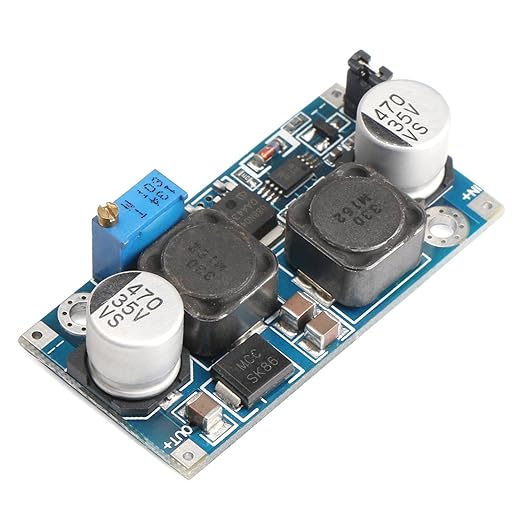

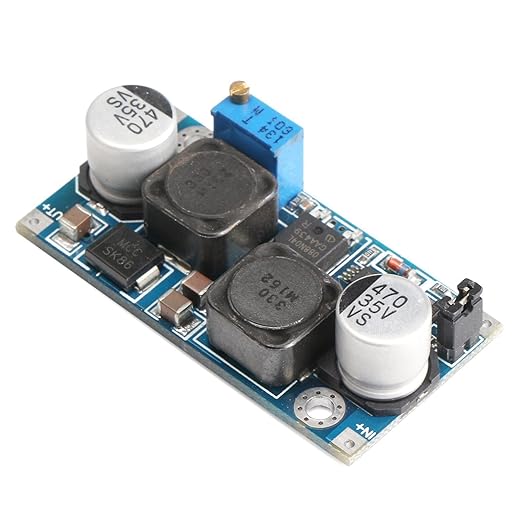

25W 3A Adjustable DC-DC Converter Automatic Boost Buck Volt Regulator 3-15V to 0.5-30V12V Step-up/Step-Down Power Supply Module
25W 3A Adjustable DC-DC Converter Automatic Boost Buck Volt Regulator 3-15V to 0.5-30V12V Step-up/Step-Down Power Supply Module
Regular price
Rs. 339.00
Regular price
Sale price
Rs. 339.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
🎟️ Available Coupons — Copy & Apply at Checkout
100% Secure Payments
Verified & Protected
Accepted Payments
UPI
Mastercard
VISA
SSL Encrypted
256-bit Encryption
Features:
-
Power: 25W (MAX)
- Input current: 3A (MAX)
- Input voltage: DC 3-15V
- Output ripple: 40mV (max)
- Load regulation: +/- 0.5%
- Output voltage: DC 0.5-30V
- Switching frequency: 150KHz
- Voltage regulation: +/- 2.5%
- Conversion efficiency: 95% (MAX)
- Operating temperature: -40 to +85 Celsius
- Rectification: Non-synchronous rectification
- Modules nature: non-isolated Boost Buck (SEPIC)
-
Output short circuit protection: Yes(The output will be 0 if the item in short circuit till you exclude short-circuit)
Some Applications:
- Solar charge regulator
- Power supply for electronic equipment
- Battery Regulator, can Regulate 12V battery (10-14V) output in 12V
Typical output, do not need heatsink (reference):
- Input 12V; Output 12V/2A; 24W
- Input 12V; Output 5V/3A; 15W
- Input 12V; Output 13.8V/1.8A; 25W
- Input 5V; Output 3.3V/3A; 9.9W
Package includes:
1 x 25W 3A Adjustable DC-DC Converter Automatic Boost Buck Volt Regulator 3-15V to 0.5-30V12V Step-up/Step-Down Power Supply Module
