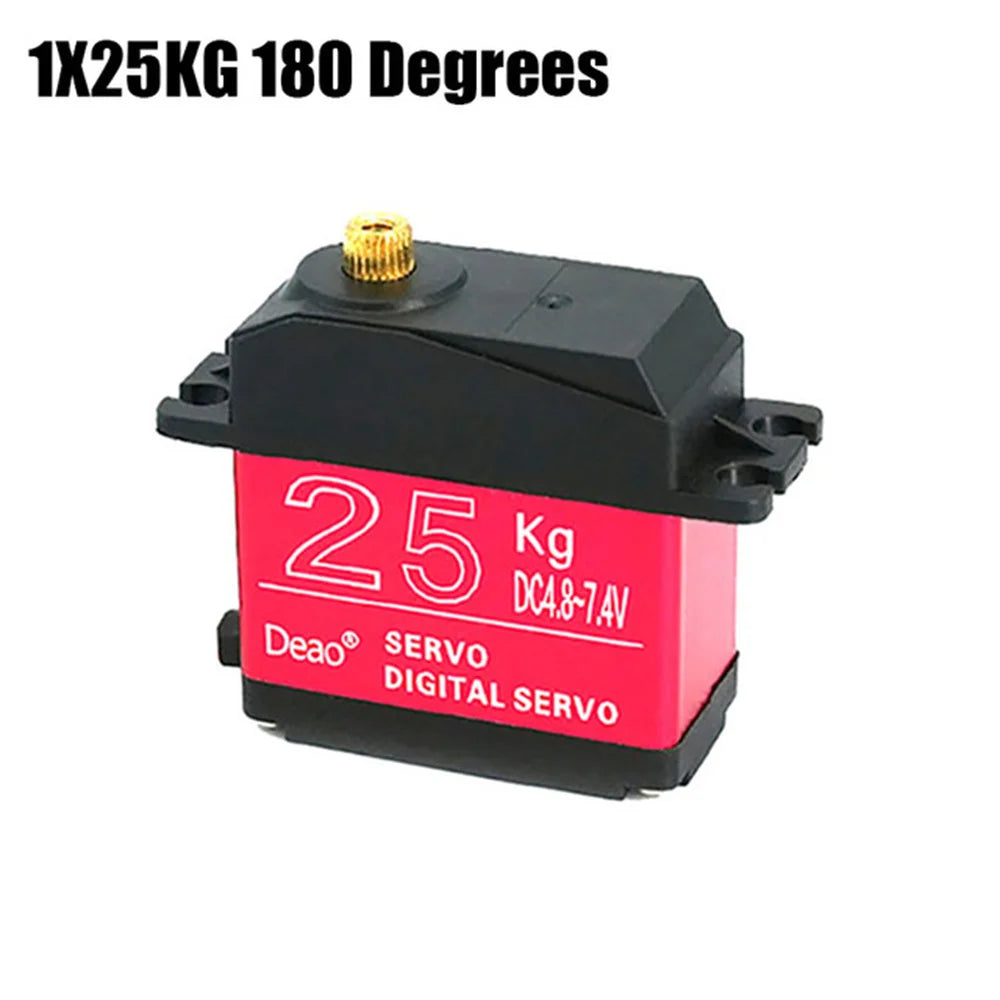

25kg Servo - 180° High Torque Digital Servo Waterproof Metal Gear
25kg Servo - 180° High Torque Digital Servo Waterproof Metal Gear
Regular price
Rs. 1,199.00
Regular price
Sale price
Rs. 1,199.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
🎟️ Available Coupons — Copy & Apply at Checkout
100% Secure Payments
Verified & Protected
Accepted Payments
UPI
Mastercard
VISA
SSL Encrypted
256-bit Encryption
Specifications:
- Temperature Range: -25°C～70°C
- Humidity Range: 65%±10%
- Size: 40.0*20.5*40.5mm
- Weight: 56g±2g
- Gear type: 5 Metal
- Limit angle: 180°
- Bearing: 2BB
- Horn type: Plastic, POM
- Case : Engineering plastics(PBT)+Aluminum alloy
- Connector wire: 320mm±5mm
- Motor: Carbon brush motor
- Operating voltage: 4.8V - 7.2V
- No load speed: 0.18sec/60° - 0.14sec/60°
- Running current: 140mA - 200mA
- Peak stall torque: 23.5kg.cm-26.8kg.cm
- Stall current: 2600mA±10% - 3400mA±10%
- Working voltage range: 4.8 - 7.2V
- Command signal: Pulse width modification
- Amplifier type: Digital controller
- Pulse width range: 500～2500usec
- Neutral position: 1500usec
- Running degree: 180°±3°(when 500～2500usec)
- Dead band width: 5 usec
- Rotating direction Counterclockwise: (when 1000～2000usec)
