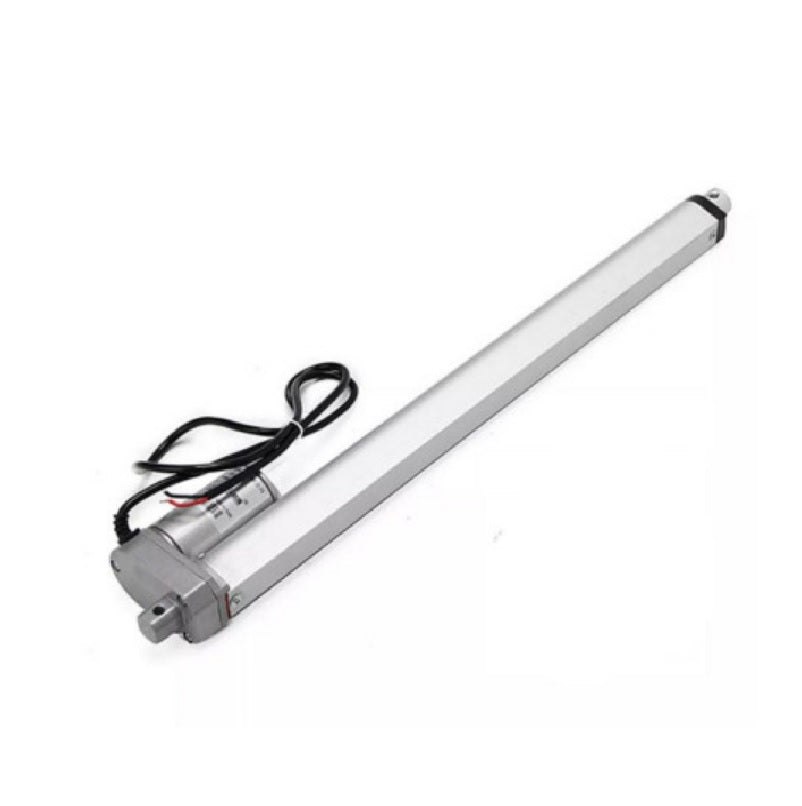

24V 500MM Stroke Length Linear Actuator 1500N 7mm/s

24V 500MM Stroke Length Linear Actuator 1500N 7mm/s

Rs. 5,999.00
Rs. 5,999.00
Sale Sold out
Taxes included. Flat Shipping calculated at checkout.
Trust
  1. Model: XDHA24-500
  2. Input Voltage: 24v
  3. Speed: 7 MM/S
  4. Stroke: 500 MM
  5. Max Load: 1500N
  6. Aluminium frame and extension tube
  7. Compact Design

This Stroke Length DC24V 500MM 7MM/S 1500N Putter Electric Linear Actuator is an electric push rod and an ideal solution for industrial, agricultural machinery, construction, clean sweeping vehicles, vessels, cargo and many other applications. This electric push rod is a kind of electric driving device which transforms the rotary motion of the motor into the linear reciprocating motion of the push-rod. It can be used in various simple or complex processes as executive machinery to realize remote control, centralized control or automatic control. The electric push rod is composed of the drive motor, reduction gear, screw, nut, guide sleeve, push rod, sliding seat, shell, micro-motion control switch, etc.

With Reliable performance, sensitive action stable running. Good environment adaptability. High-quality metal material, high-performance motor, built-in stroke switch. Maximum push/pull is up to 1500N, and stroke speed is up to 7mm/s when under no-load. These are commonly used in automotive, medical devices and engineering industry, agricultural machinery,

Specifications:

  • Stroke Length: 500mm
  • Permanent magnet DC motor drive: Voltage 24VDC
  • Operating Temperature:-20 to 85
  • Maximum static load: 1500N
  • Body Material: Aluminium Alloy
  • Noise Level: 40dB

Features:

  1. Aluminum frame and extension tube
  2. Compact Design
  3. Built-in Limit Switch
  4. Low Noise
  5. Moisture-proof Surface
  6. Long life: The drive motor adopts a new carbon brush structure, with a service life of more than 50000 times.
  7. Permanent magnet DC motor drive

Packages Includes:

1 x Electric Linear Actuator
