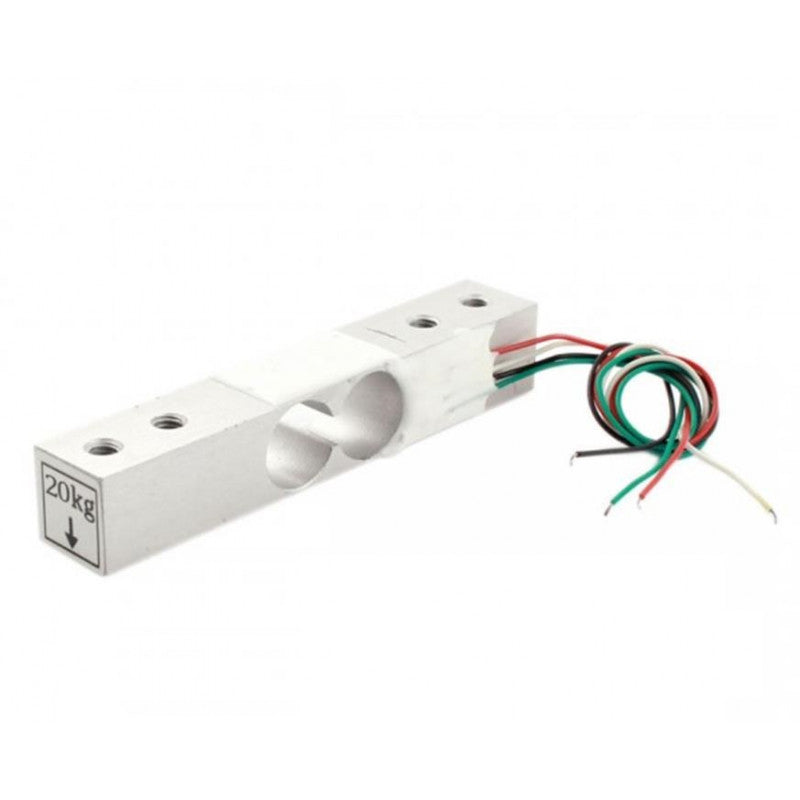

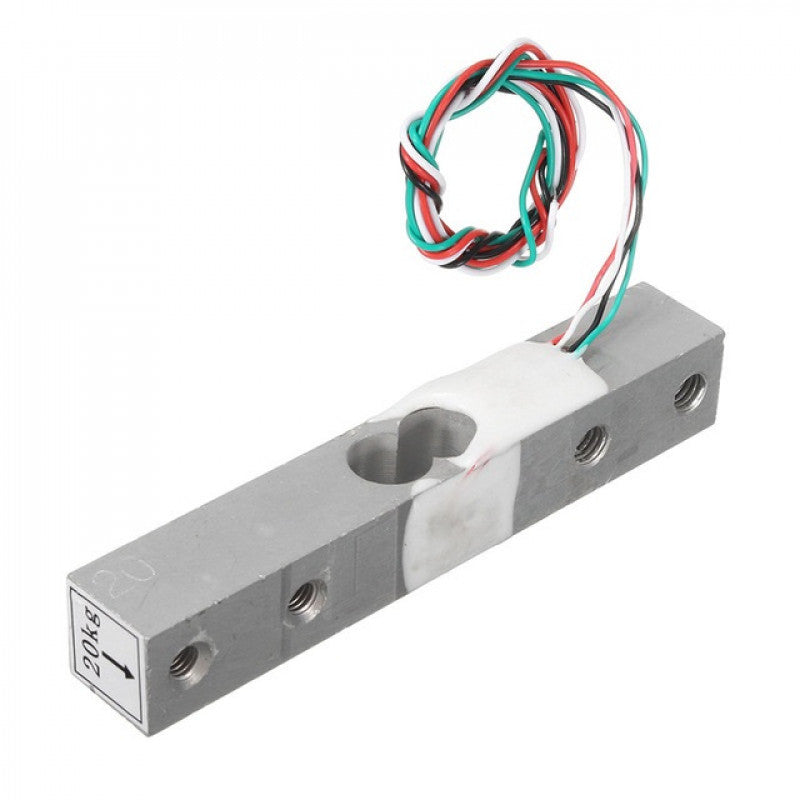

20Kg Load cell - Electronic Weighing Scale Sensor

Rs. 159.00 Rs. 190.00

All Prices Incuding GST

No Hidden Charge

All Price are including GST & other applicable Taxes, For B2B Please update your GSTIN Number

Local Pickup

Estimated time to pack : 15 Mins.

11 AM- 7 PM

Order can be pickup from our Store Located in Jayadev Vihar Square, Bhubaneswar, Odisha

Fast Delivery

Same Day Dispatch.

Shipping Charge Flat-70/-

Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location

Bulk Purchase

Get Attractive Discount on Bulk
Whatsapp Support @+917749850441
  • Capacity: 20KG
  • Rated output(MV/V): 2.0±0.15
  • Accuracy class: C2
  • Maximum number of laod cell verification intervals(N max): 2000
  • Minimum number of laod cell verification intervals(Vmin): EMax/5000
  • Combined error(%RO): <±0.030
  • Creep(%RO/30min): 0.03
  • Temperature effect on sensitivity(%RO/°C): 0.0016
  • Temperature effect on zero(%RO/°C): 0.003
  • Zero balance(%RO): 1.0
  • Input resistance(O): 402±6
  • Output resistance(O): 350±3
  • Insulation resistance(MO<50V>): 5000
  • Recommended excitation voltage(V): 10~15
  • Compensated temperature range(°C): -10~+40
  • Operating temperature range(°C): -35~+80
  • Safe overload(%RO): 150
  • Ultimate overload(%RO): 200
  • Load cell material: Aluminium
  • Plafform size: 350x350mm
  • Connecting cable: ø4.2x350mm
  • Method of connecting wire: Red(+),Black(-),Green(+),White(-)

A load cell is a transducer that is used to create an electrical signal whose magnitude is directly proportional to the force being measured. The various types of load cells include hydraulic load cells, pneumatic load cells and strain gauge load cells.

This is a standard load cell for measuring weight upto 20 Kg. The output of the load cell is in mili-volts and cannot be directly measured by a micro-controller. So an ADC with high resolution or an instrumentation amplifier is required to make the output of the load cell readable to a micro-controller.


  • Shipping Time:- Our orders are shipped within 24 Hours.
  • Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location
  • Shipping Partner:- Bluedart, Amazon Shipping, Ekart Logistics, Delhivery & India Post.
  • Replacement:- Damaged During Transit, Missing Parts Or Item Mismatch.
  • Return:- Item mismatch or parts missing etc.
  •  No return/Replacement will apply if the Product has been subject to misuse, static discharge, neglect, accident, modification, or has been soldered or altered in any way.
  • We accept no responsibility for improper installation of our products. Electrical polarity must be properly observed in hooking up electrical components.
