Cast Nylon Heavy Duty Robot Wheel 200 x 40mm
Regular price
Rs. 2,249.00
Regular price
Sale price
Rs. 2,249.00
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
- Dispatched in 24 hrsExcept Sundays and public holidays
- GST invoiceInput tax credit for businesses
- ReplacementFor transit damage or wrong item
🎟️ Available Coupons — Copy & Apply at Checkout
IHCPRIME
₹100 off on orders above ₹2999
WELCOME
₹50 off for new customers above ₹999
P42A10
10% off on Molicel P42 MOQ100
FREESHIPPING
Free shipping above ₹1999
100% Secure Payments
Verified & Protected
Accepted Payments
UPI
Mastercard
VISA
SSL Encrypted
256-bit Encryption

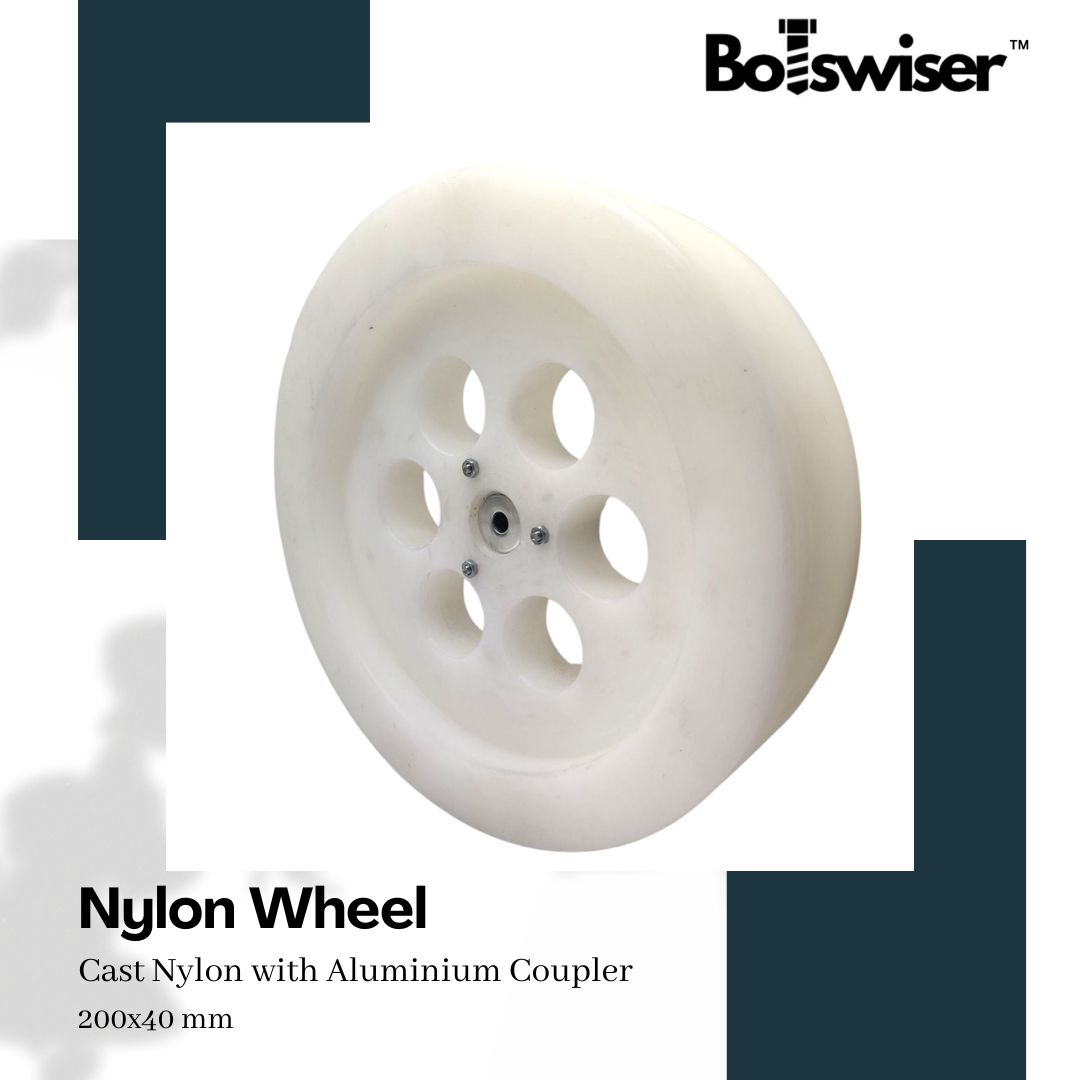

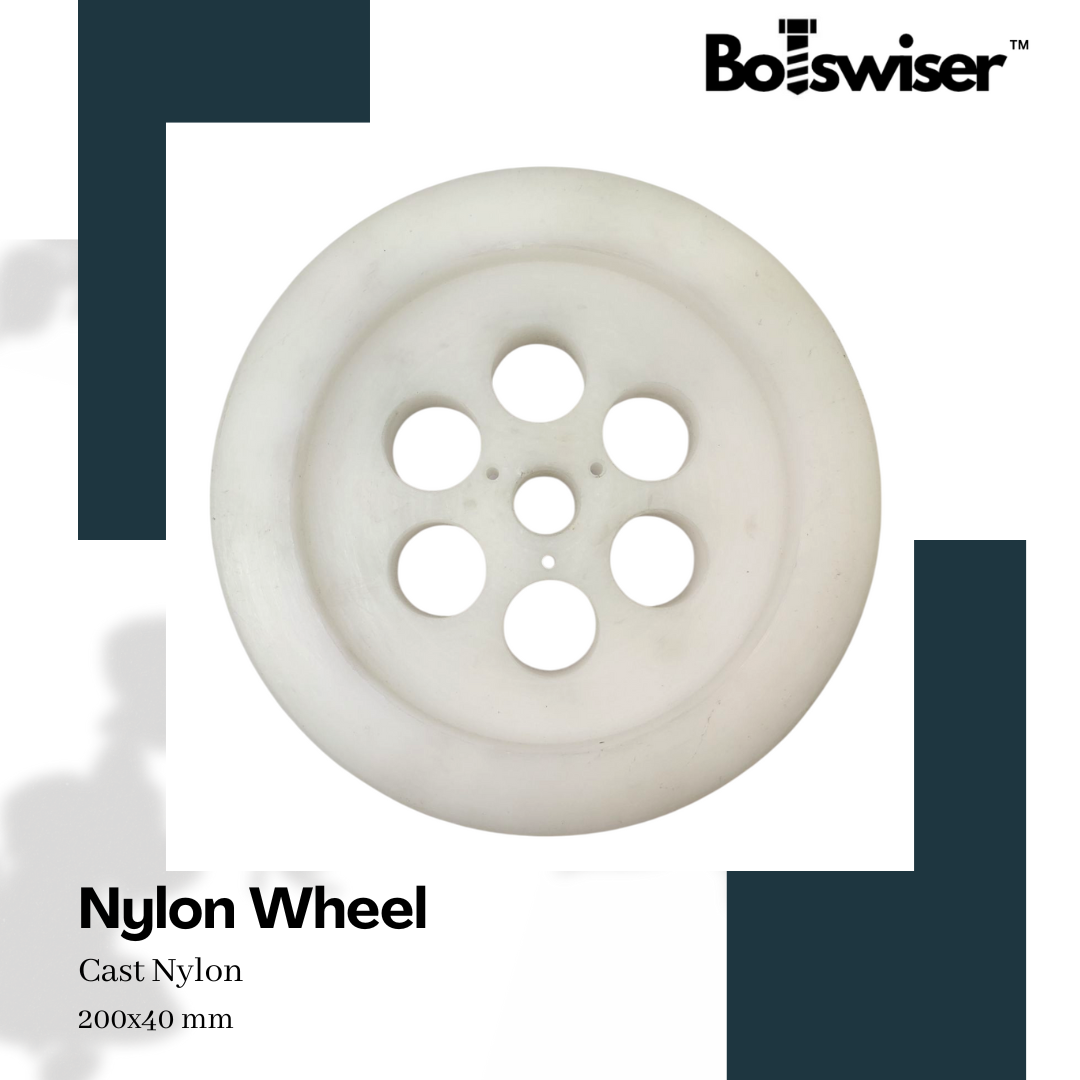

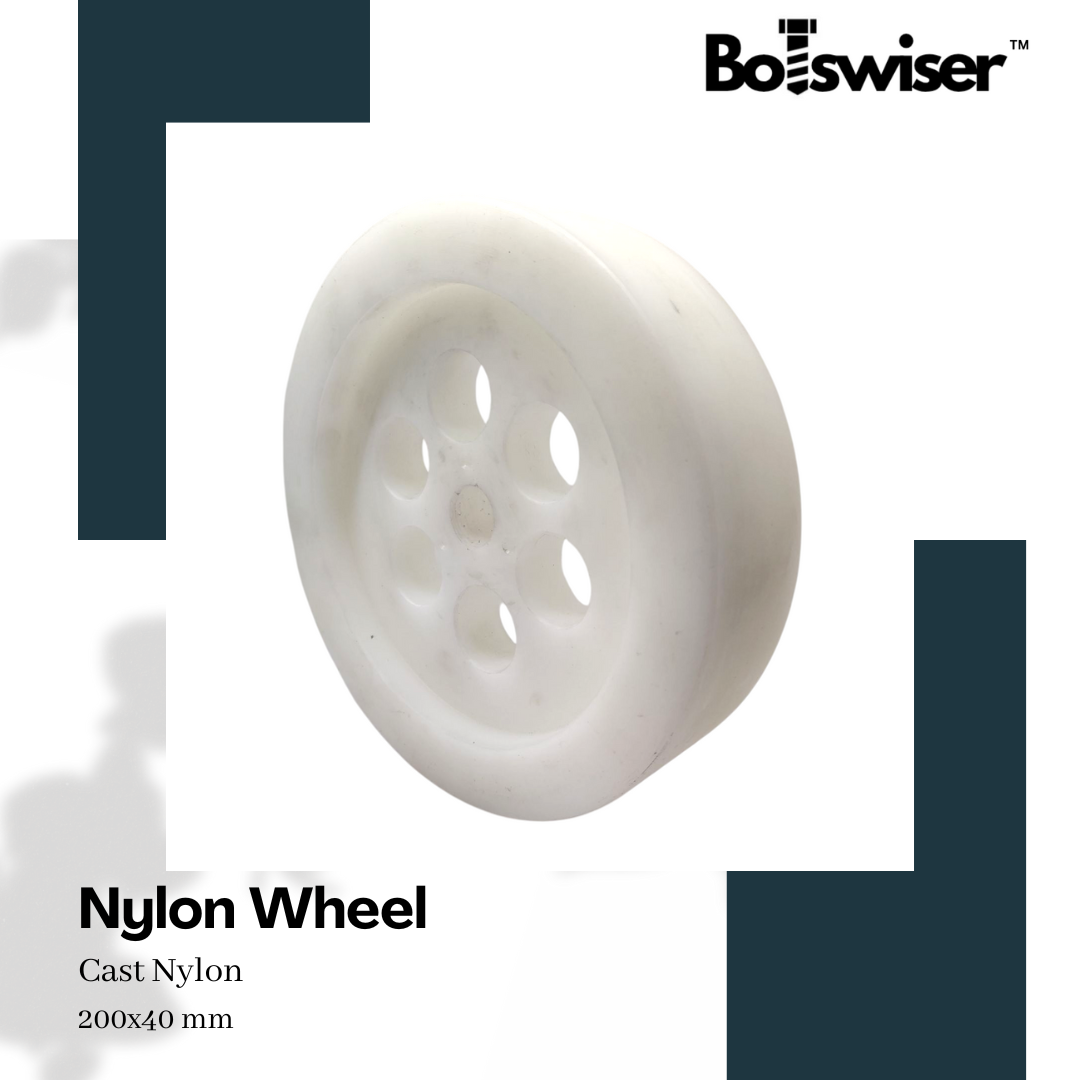

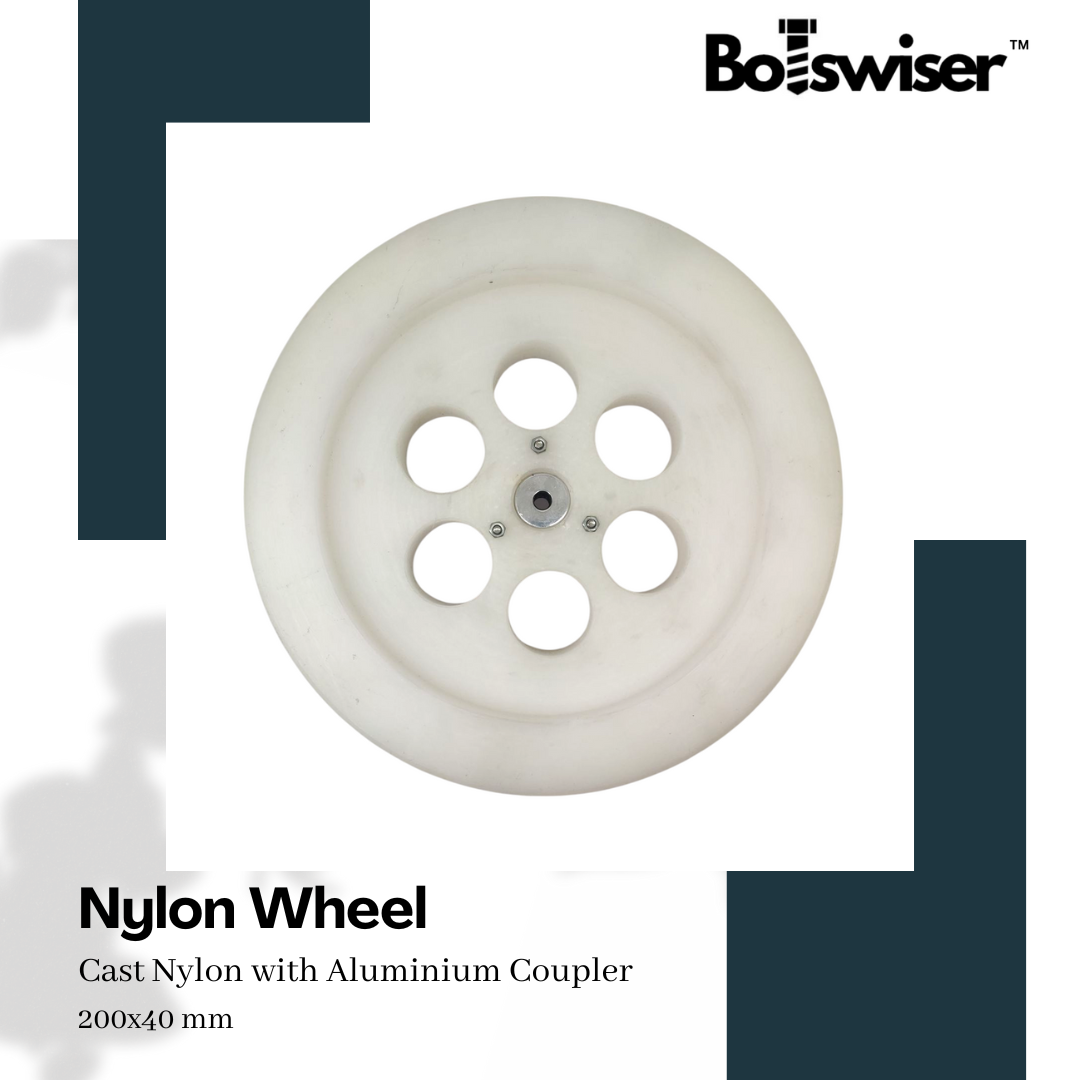

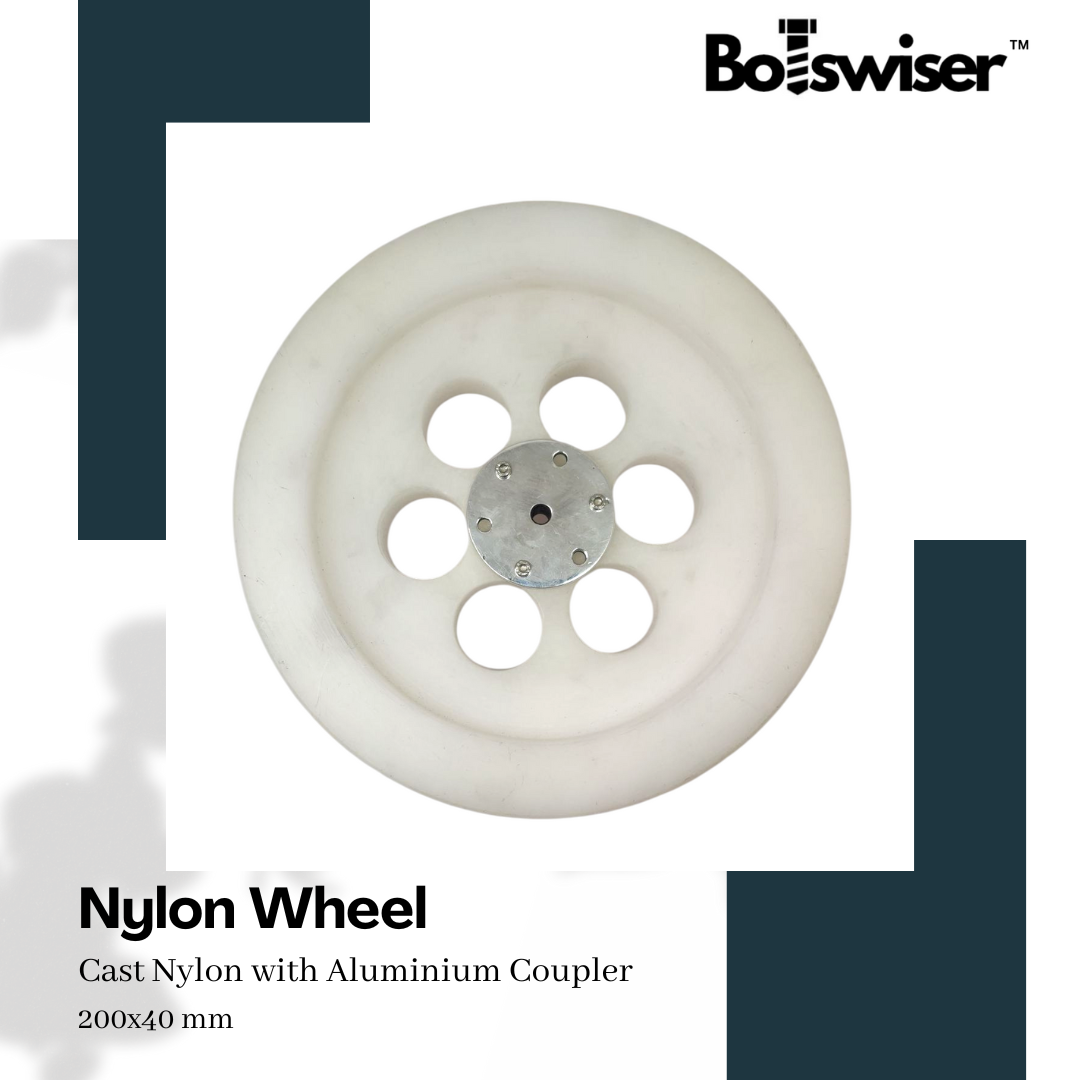

Heavy-duty cast nylon wheel, 200mm across and 40mm wide, with a flange coupler for a 6mm or 8mm motor shaft. The solid nylon tread does not puncture and carries heavy loads, so it suits large robots, trolleys and AGV-style platforms on smooth floors.
Specifications
| Diameter | 200mm |
|---|---|
| Width | 40mm |
| Material | Cast nylon |
| Weight | About 900g |
| Coupler bore | 6mm or 8mm |
| Coupler size | 20mm OD x 20mm high |
| Coupler base | 50mm x 4mm, 6 holes for M4 screws |
| Grub screw | M3 |
Works with: gear motors in DC Gear & BO Motors, Motor Clamps & Brackets, and Robot Chassis & Car Kits.

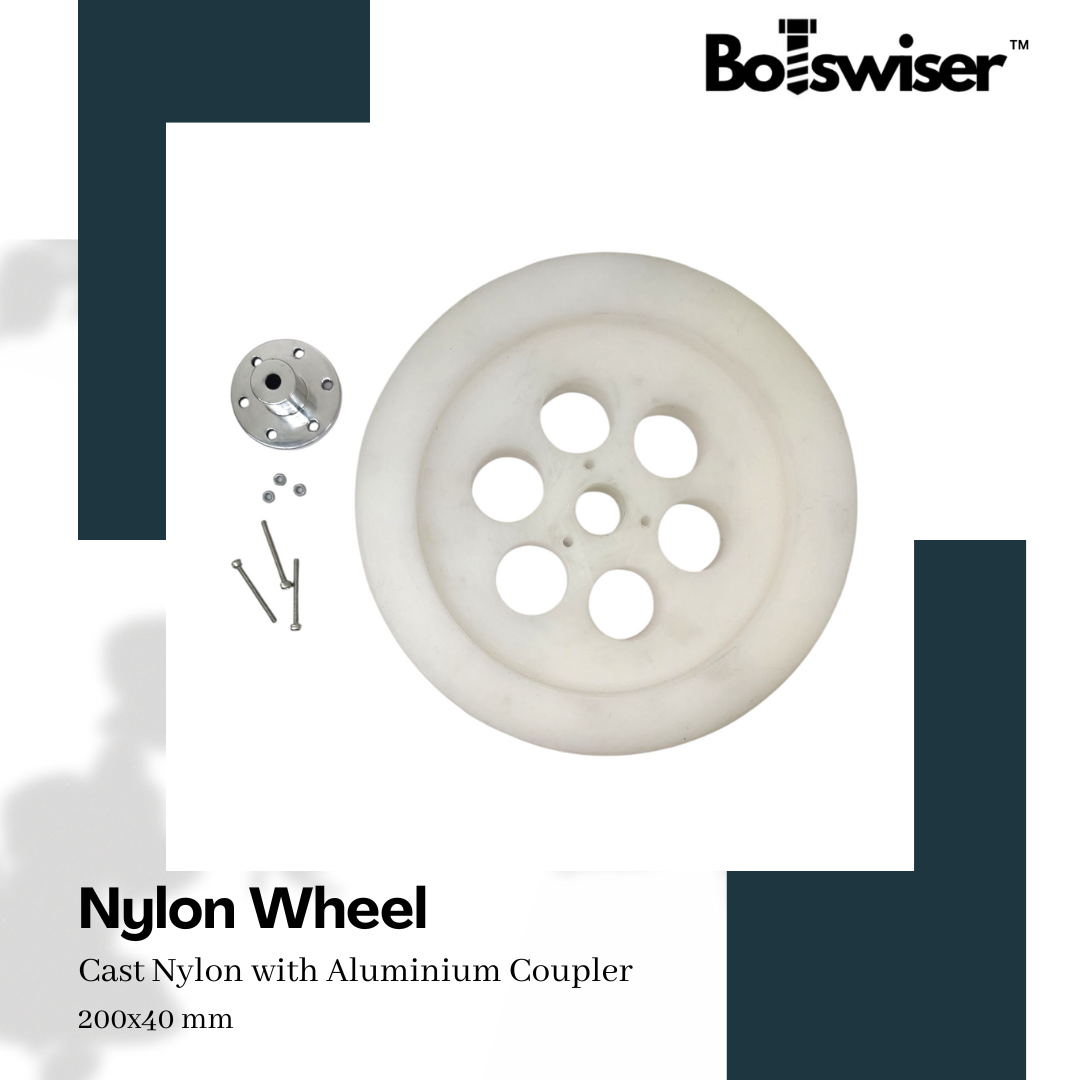

In the box: 1 wheel and 1 flange coupler.
Tip: fix the wheel firmly on the shaft before the first run; a loose wheel wobbles and wears the hub.
