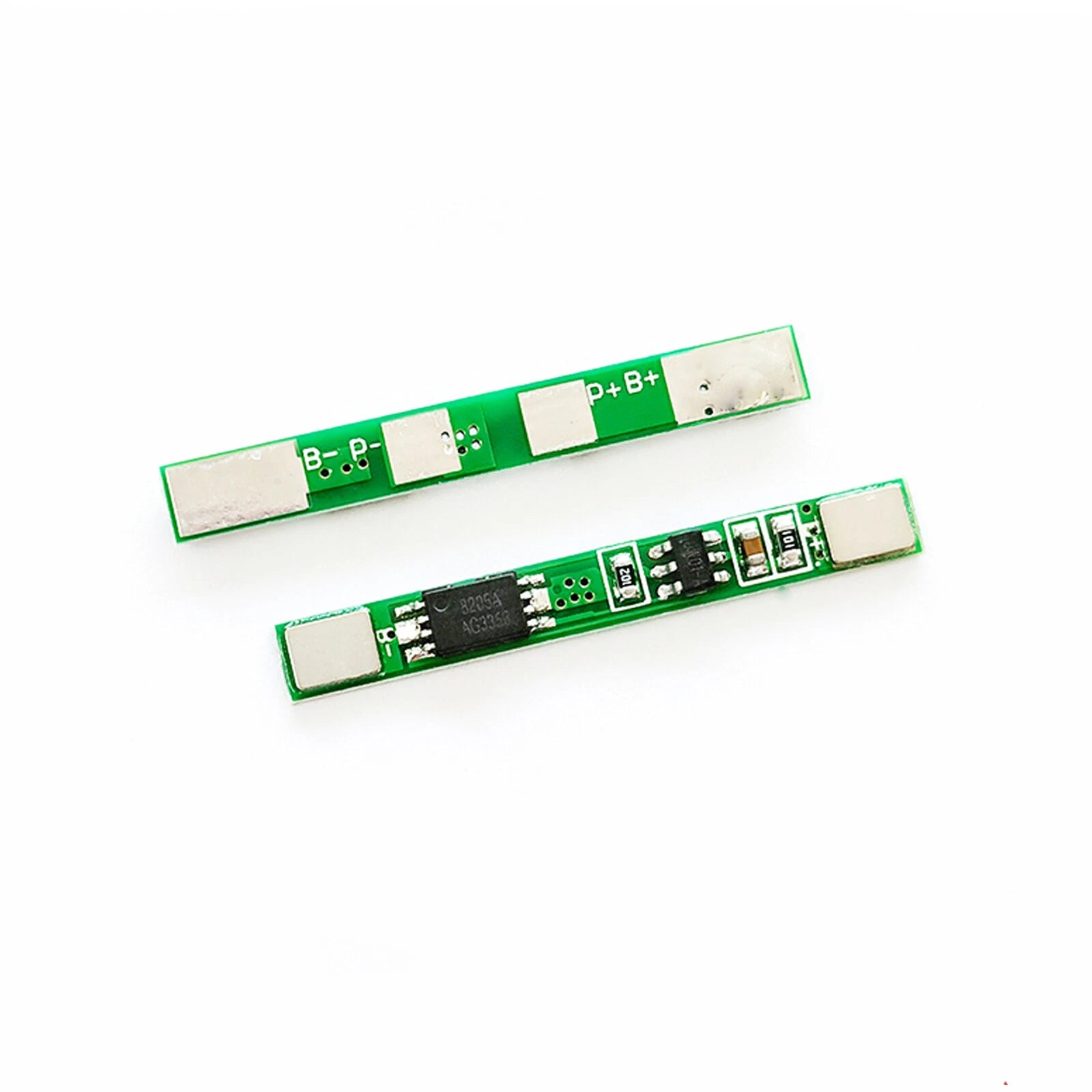

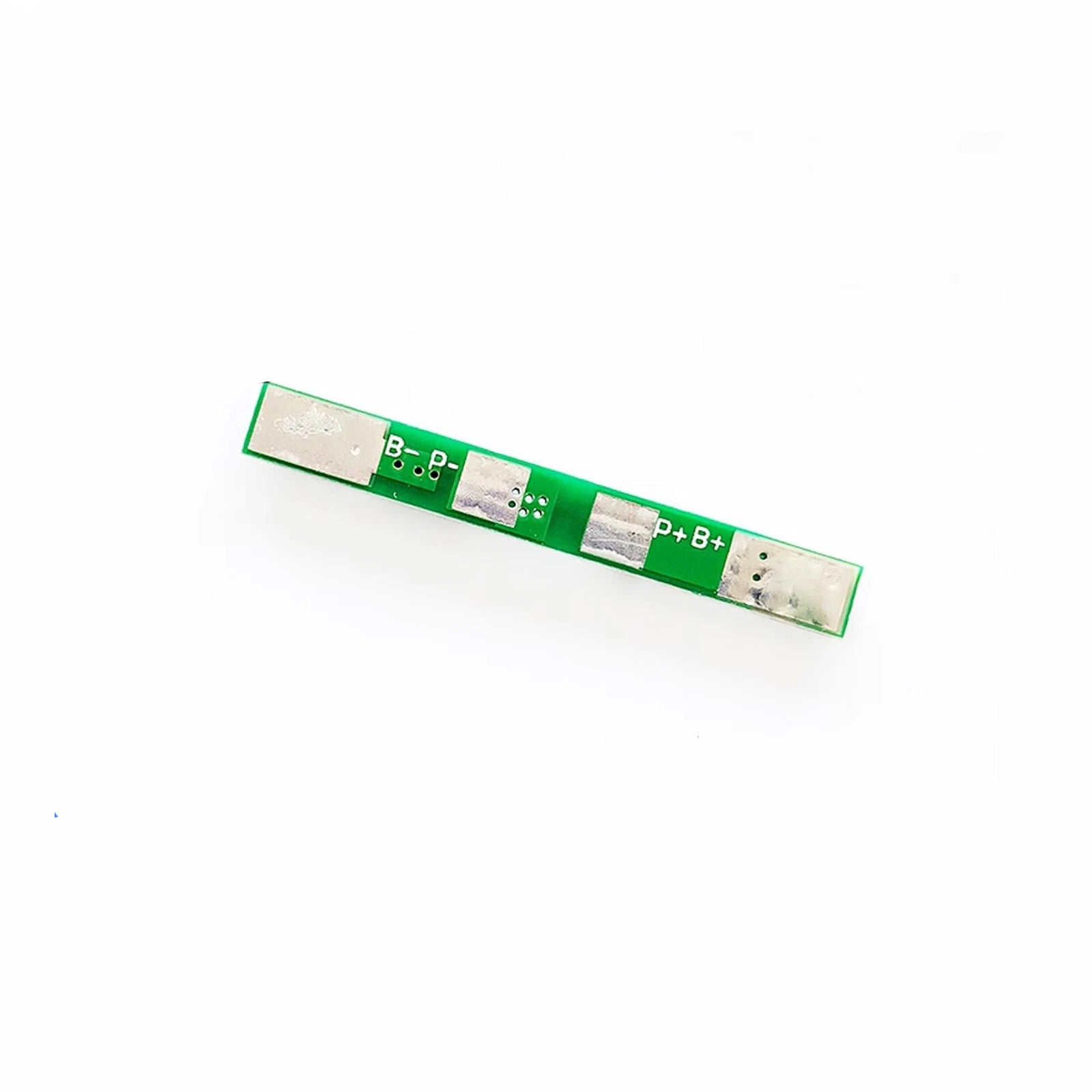

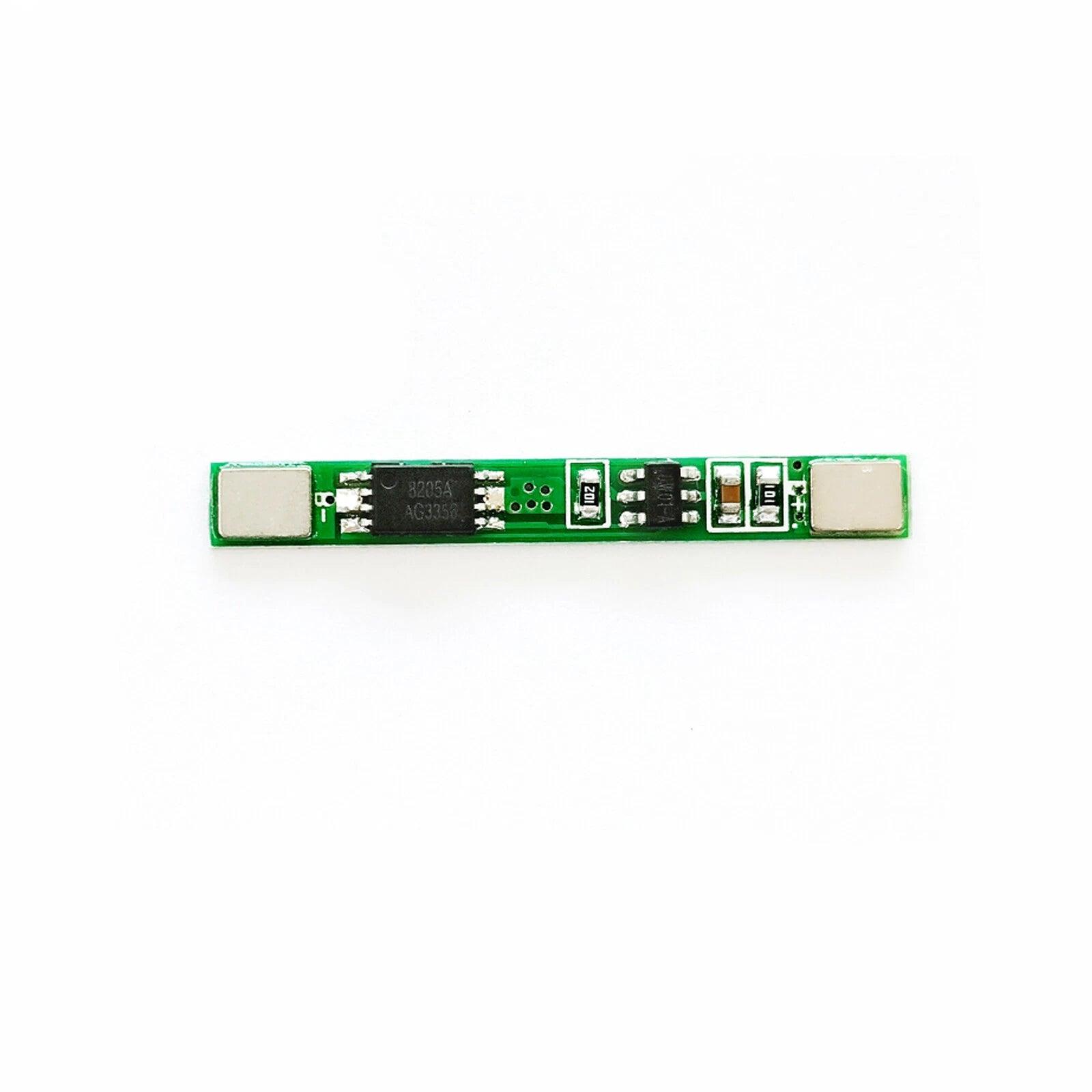

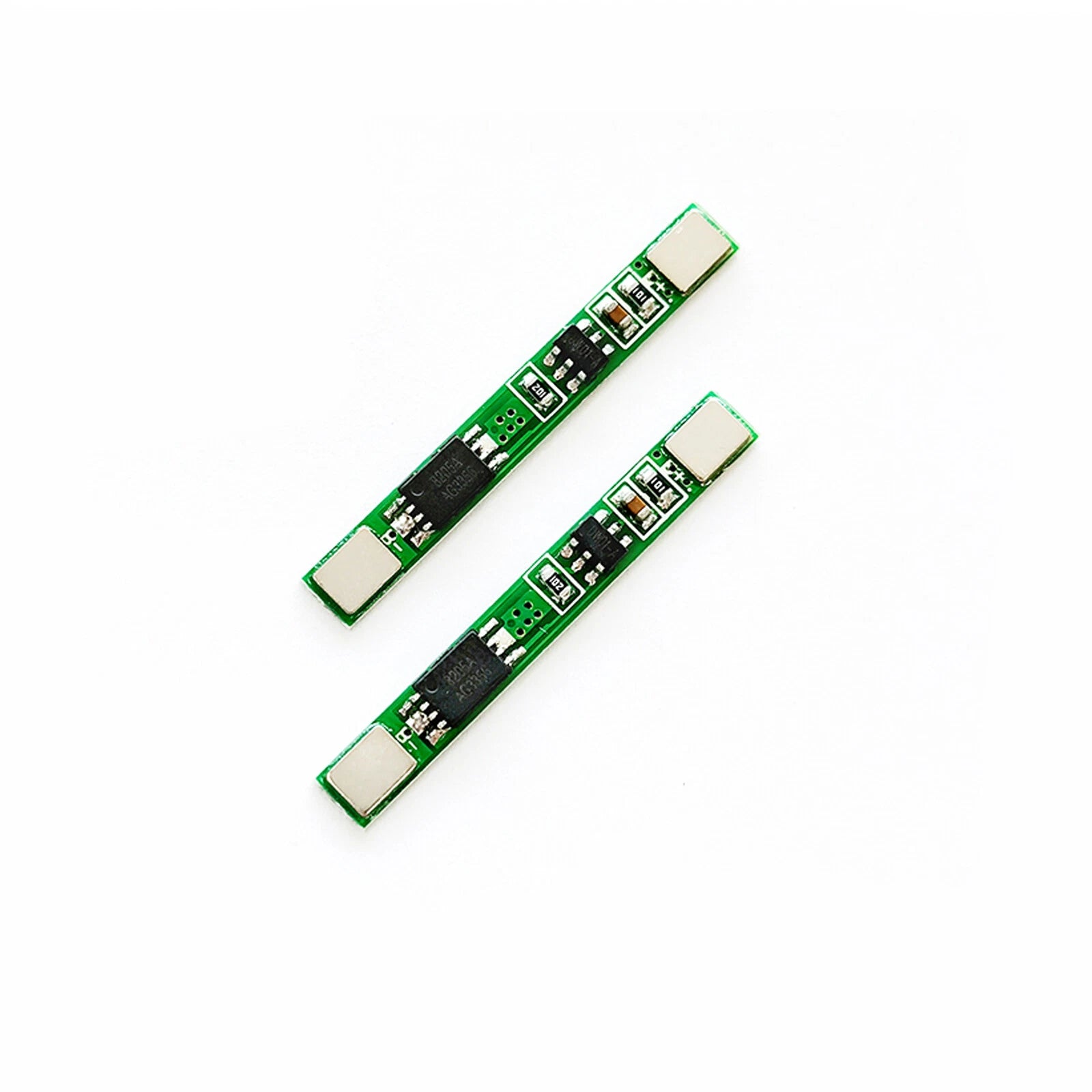

1S 5A 18650 Lithium Battery Protection Board
1S 5A 18650 Lithium Battery Protection Board
Regular price
Rs. 29.00
Regular price
Sale price
Rs. 29.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
🎟️ Available Coupons — Copy & Apply at Checkout
100% Secure Payments
Verified & Protected
Accepted Payments
UPI
Mastercard
VISA
SSL Encrypted
256-bit Encryption
1S 5A 18650 Lithium Battery Protection Board charge-discharge controller module comes with pre-soldered nickel strip ready to use for a single 18650 rechargeable cell. The module has protection against short circuit, overcharge and over-discharge. One of the functions of the charge controller is to turn off the power supply for the batteries when the maximum capacity of at least one battery is reached. This BMS controller is designed for more than 30,000 hours of operation. The maximum allowable current is 5A.
Features:
- Model: HX 3450
- IC Components: DW01 + 8205A
- Charging voltage: 4.2V
- Overcharge Detection Voltage: 4.25 ± 0.05V
- Overcharge release voltage: 4.23 ± 0.05V
- Over discharge detection voltage: 2.45 ± 0.1V
- Upper Limit Continuous Current: 5A
- Overcurrent Detection Current: 7A
- Small size designed for a four-cell battery pack.
- Simple and convenient circuit for easy connections
- Over-charge/Over-discharge Protection.
- Pre-soldered Nickel Strip ready to mount on battery.
