Specifications:
- Brand: OEN
- Contact material: Silver alloy
- Rated Voltage: 230VAC/28VDC
- Max Switching Voltage: 440VAC/220VDC
- Nominal voltage: 12V
- Pick-Up Voltage: 9.6V
- Drop-Out Voltage: 1.2V
- Switching current max: 5A
- Coil Resistance Ohms: 285 Ohms
- 2-Form C: 1250VA
- Trigger Current: 40mA Approx
- Operating time: 18msec
- Release time: 8msec
- Dustproof: Yes
- Low power consumption
- Working temperature: -40°C ~ 70°C
- Number of Pins: 8
- Case/Package: DIP
- Mount: PCB, Through Hole
Application:
- Telecommunication
- Domestic appliances
- Office machine
- Audio equipment, Remote Control, etc
Package Includes:

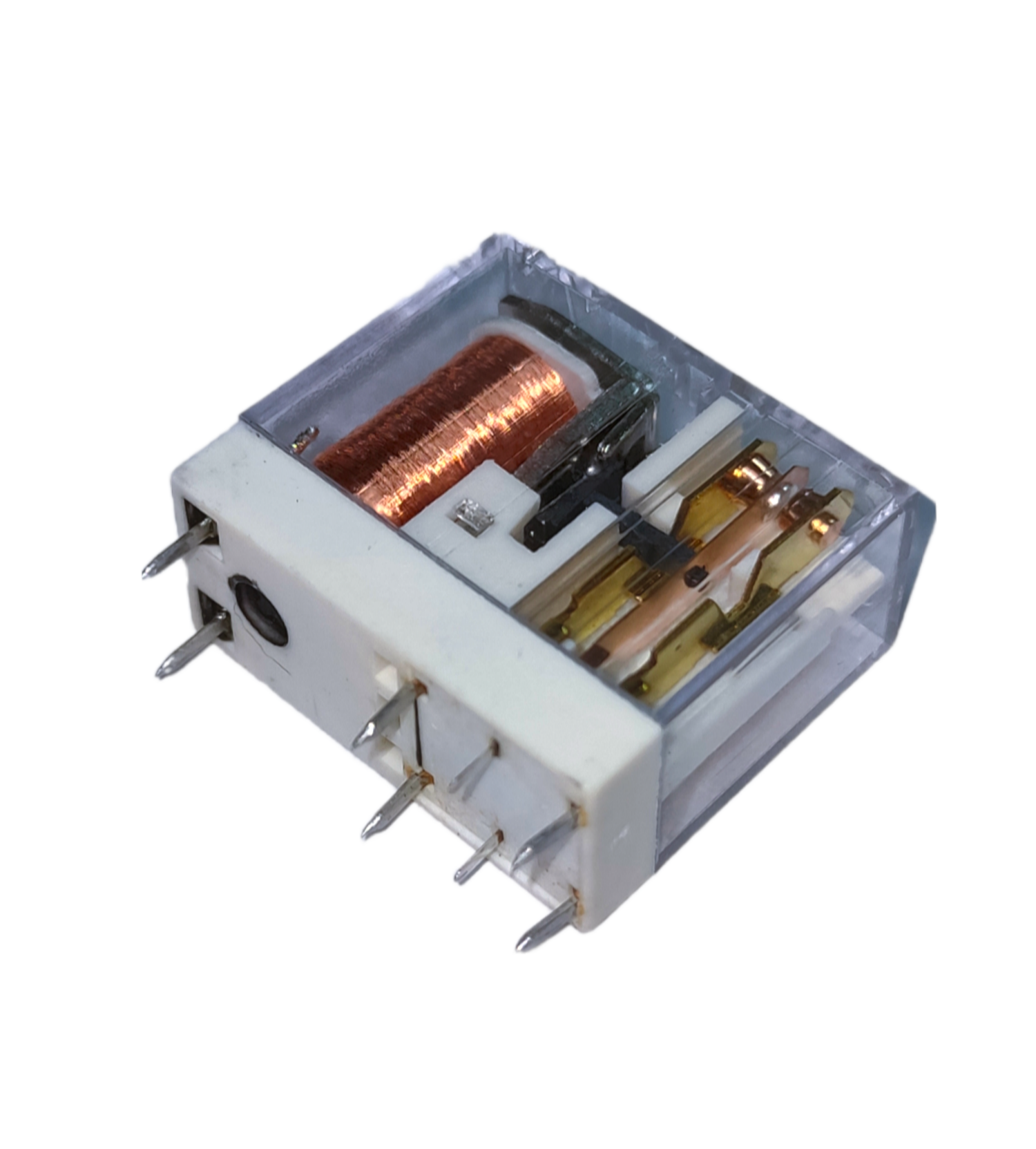

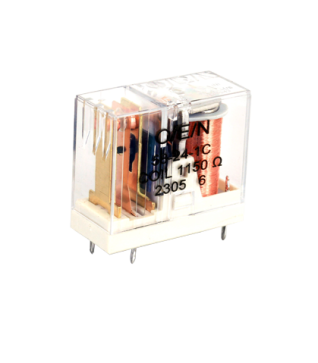

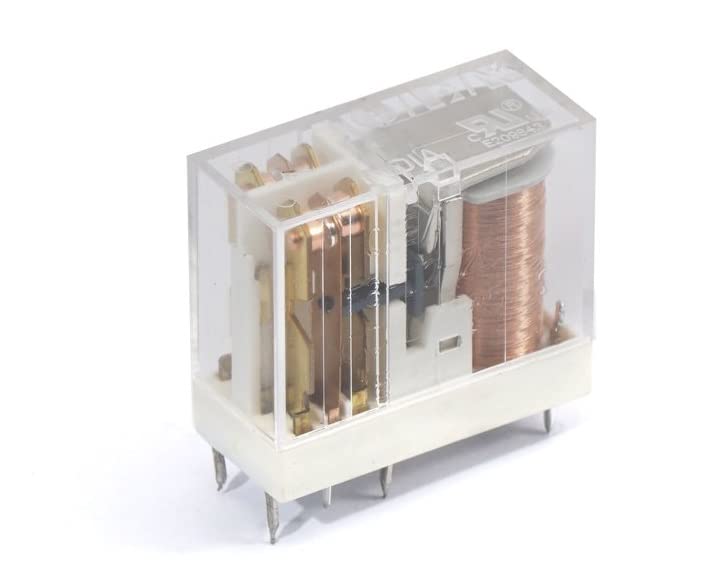

- 1 x 58-12-2C OEN Relay 12V/5A Relay
Note: Product Images are shown for illustrative purposes only and may differ from the actual products.
