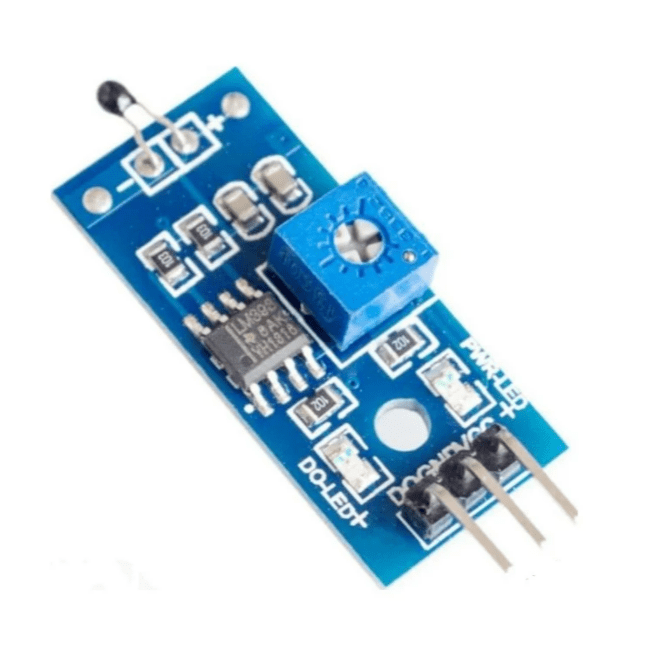

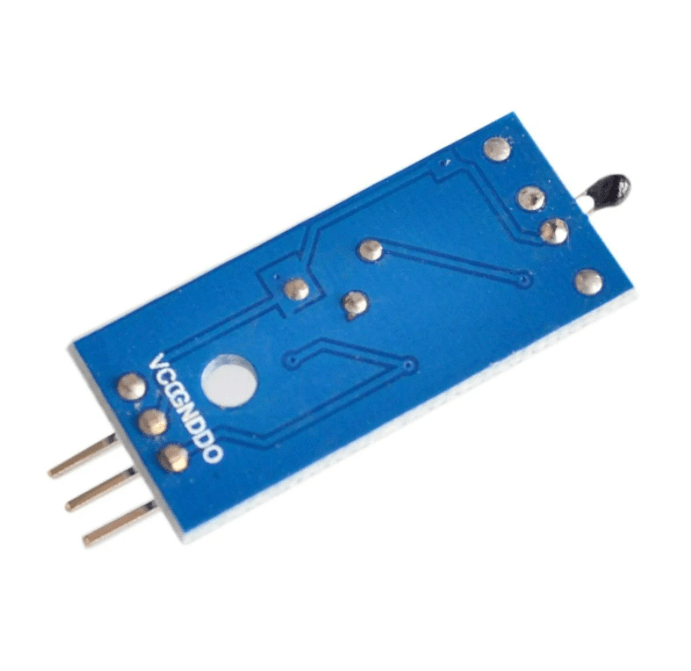

The 10K NTC Thermistor Temperature Sensor Module is a compact, cost-effective solution for measuring ambient temperature. It is highly sensitive to temperature changes in its environment, making it ideal for monitoring temperature fluctuations. The module features a potentiometer that allows you to adjust the temperature detection threshold.

The Digital Output (DO) can be directly connected to a microcontroller to detect high or low temperature levels based on environmental changes. The temperature detection range for this module is from 20°C to 80°C, making it suitable for various applications such as monitoring water temperature or controlling systems like water tanks.

For the most accurate temperature measurements, the thermistor is typically used with the four-wire method. This approach minimizes resistance introduced by the cables, ensuring precise readings without the interference of additional wire resistance.

Features:

• Adopt the NTC thermistor sensor, sensitivity is good.
• The comparator output, signal clean, good waveform, driving ability is strong, for more than 15 ma.
• With potentiometer to adjust the temperature detection threshold.
• Working voltage: 3.3 V to 5 V.
• Output form: digital switch output (0 and 1).
• It has a fixed bolt hole, convenient installation.
• Using the LM393 wide voltage comparator.
