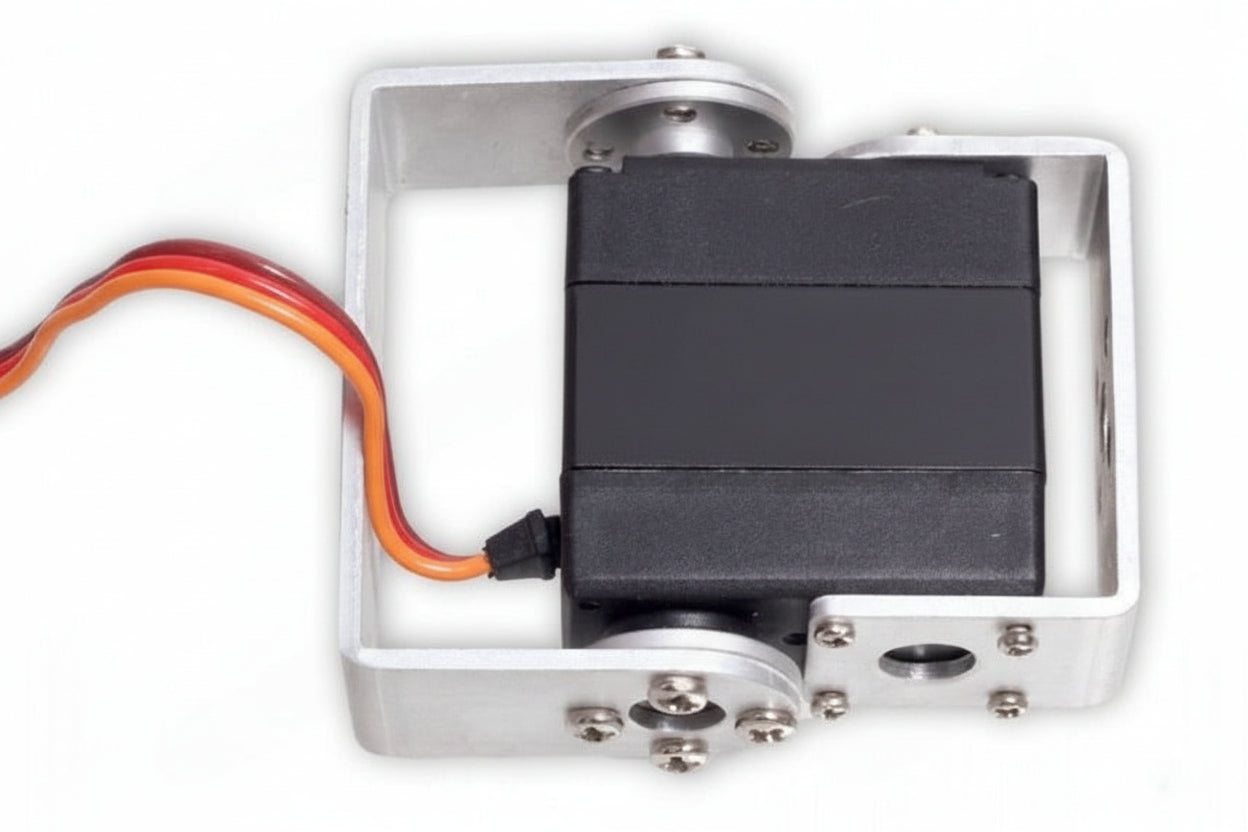

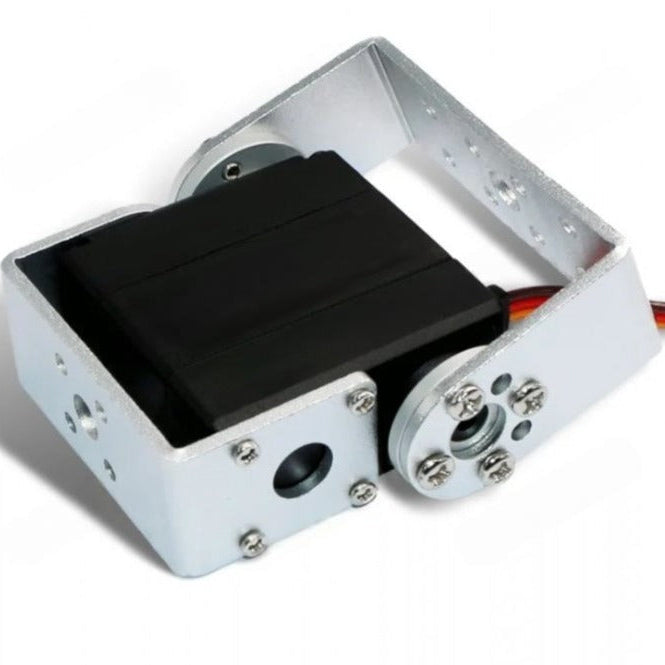

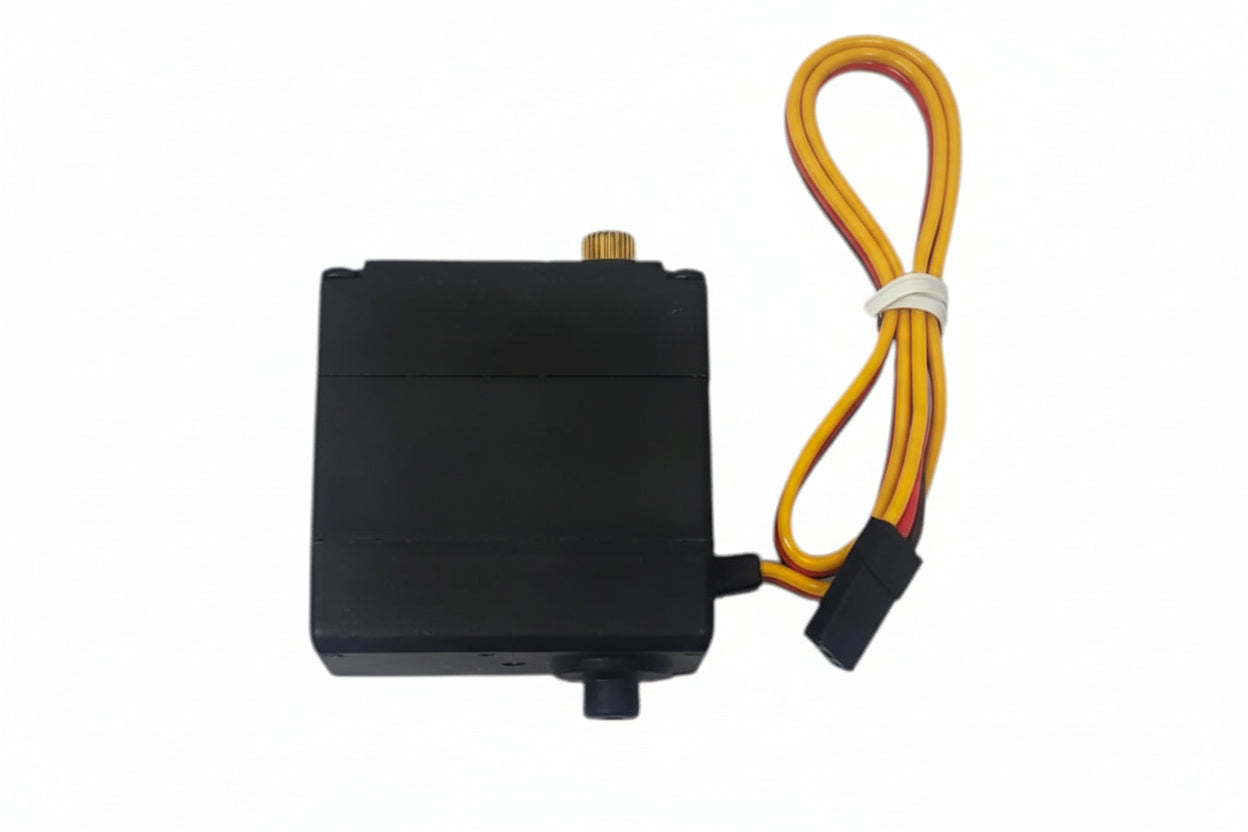

Metal Gear Dual Shaft 16kgcm Digital Servo Motor
Metal Gear Dual Shaft 16kgcm Digital Servo Motor
Regular price
Rs. 849.00
Regular price
Sale price
Rs. 849.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Features:
- Operating Voltage: 6V ~ 8.4V
- Operating temperature range: -10°C ~ 50°C
| Electrical Specifications: | 7.2V | 8.4V |
| Operating speed (at no load) | 0.13sec/ 60° | 0.10sec/60° |
| Running current (at no load) | 250mA | 300mA |
| Stall torque (at lock) | 18Kg.cm | 20kg.cm |
| Stall current (at lock) | 3.2A | 3.5A |
| Idle current (at stopped) | 4mA | 5mA |
Mechanical Specification:
| Dimension: | 40 x 20 x 40.5mm |
| Limit Angle (Mechanical) | 360°±10° |
| Limit Angle (Electrical) | 180° |
| Weight | 64±1g |
| Connector wire gauge | #28 PVC |
| Connector wire length | 320±5mm |
| Horn Gear Spline | 25T |
Control Specification:
| Operating frequency: | 50-330Hz |
| Neutral position | 1500 usec |
| Dead band with | 3 usec |
| Pulse width range | From 500 to 2500 usec |
Package Includes:
- 1 x Metal Gear Dual Shaft 16kgcm Digital Servo Motor
