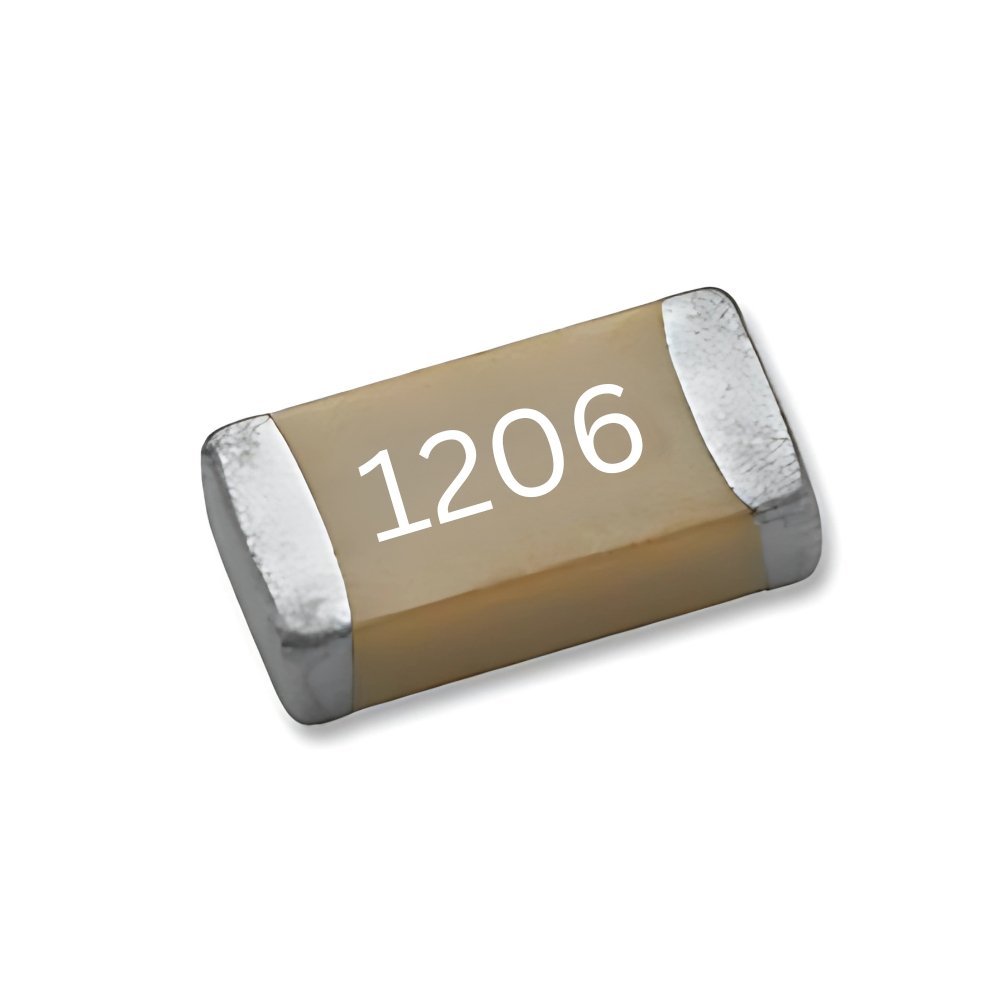

SMD 1206 capacitors are surface-mount ceramic capacitors designed for compact electronic circuits. The 1206 package (3.2mm × 1.6mm) is a widely used industry standard in PCB design, offering a balance between size, capacitance range, and voltage handling.

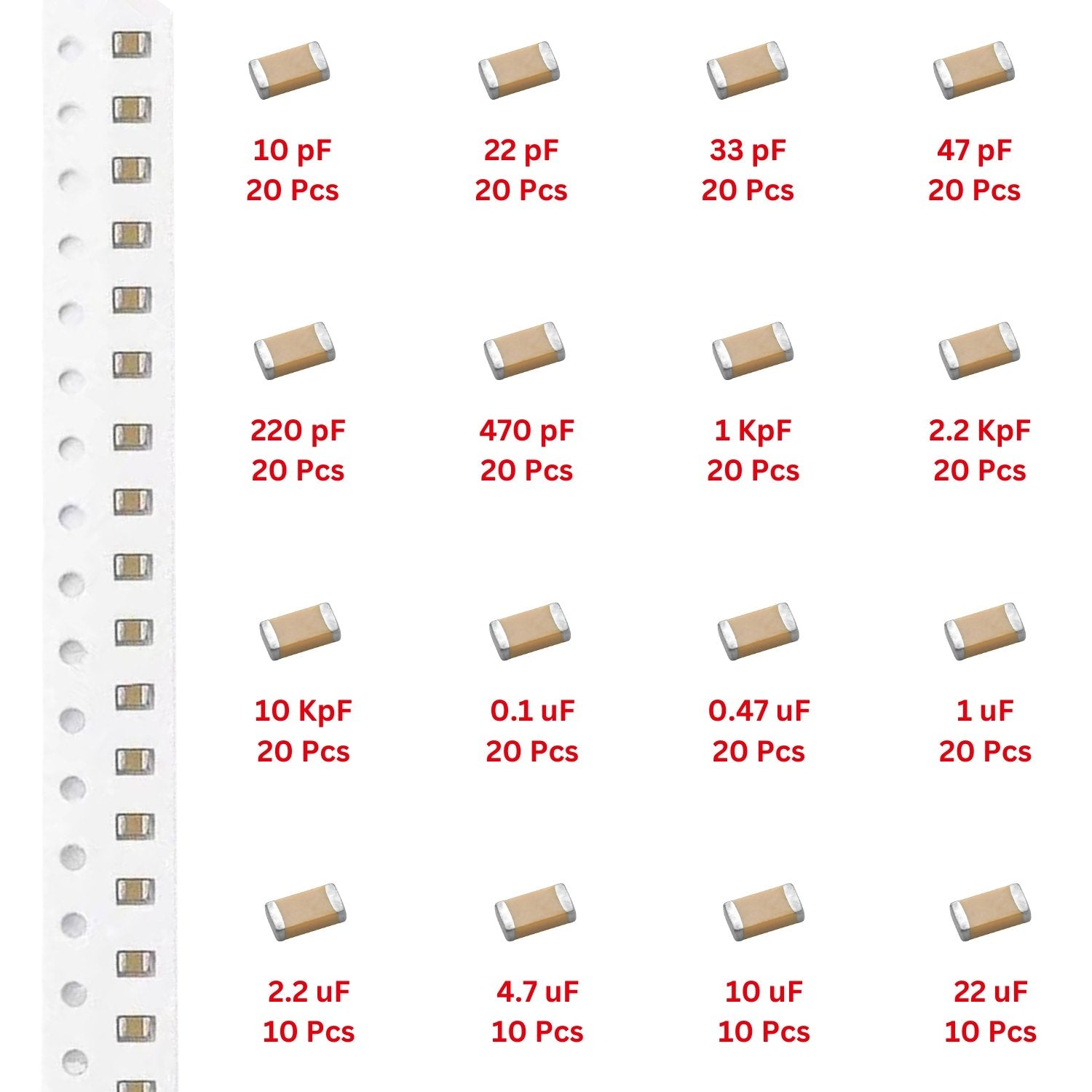

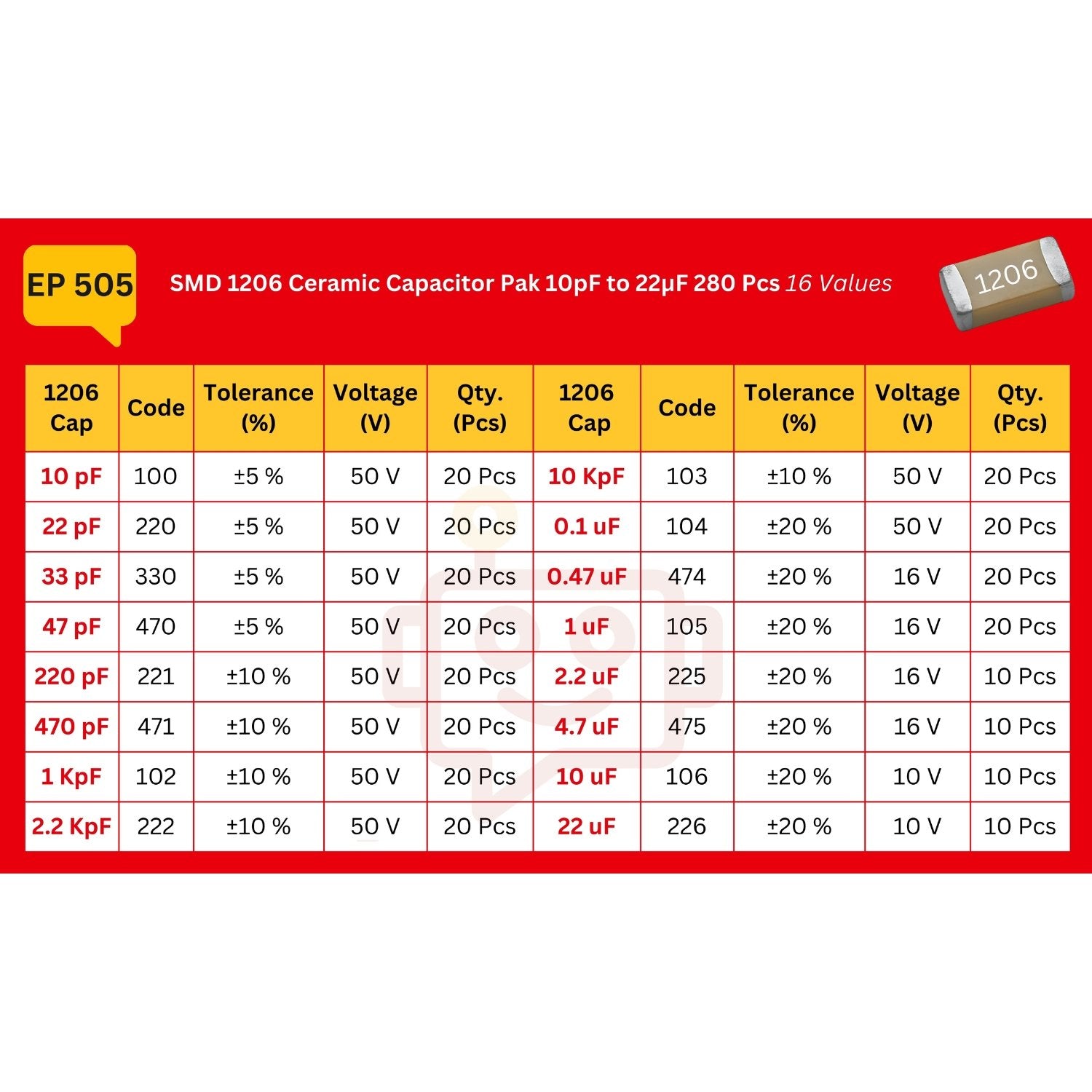

This SMD 1206 Capacitor Value Pack is a comprehensive assortment of 280 capacitors covering a wide range of values from 10pF to 22µF. Designed for electronics hobbyists, engineers, and professionals, this kit ensures you have the right capacitor for various circuit applications, including signal filtering, decoupling, and power management.
1206 Capacitor Symbol:
1206 Capacitor Structure:
Features:
- Compact size
- High reliability and durability
- Wide capacitance range
- Good voltage handling
- Low ESR & ESL (reduces power loss and noise)
- Supports automated SMT assembly
- Excellent thermal stability
- Versatile applications (decoupling, filtering, signal processing)
Applications:
- Power Supply Decoupling - Stabilizes voltage and reduces noise in circuits
- Signal Filtering - Removes unwanted high-frequency interference
- Timing Circuits - Helps set frequency in oscillators and timers
- Energy Storage - Temporarily holds charge for power regulation
- Consumer Electronics - Used in smartphones, laptops, and wearable
