Elepak EP10 3KV HV Ceramic Disc Capacitor Pak 5pF to 10KpF 90 Pcs 18 Values
Elepak EP10 3KV HV Ceramic Disc Capacitor Pak 5pF to 10KpF 90 Pcs 18 Values
Regular price
Rs. 545.00
Regular price
Sale price
Rs. 545.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Package Includes:

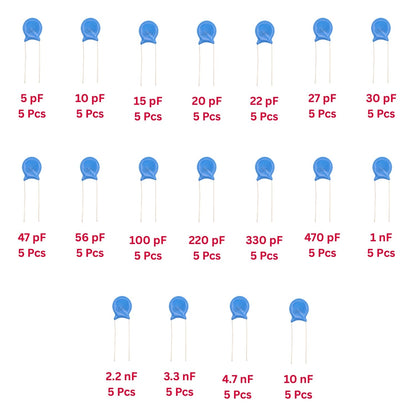

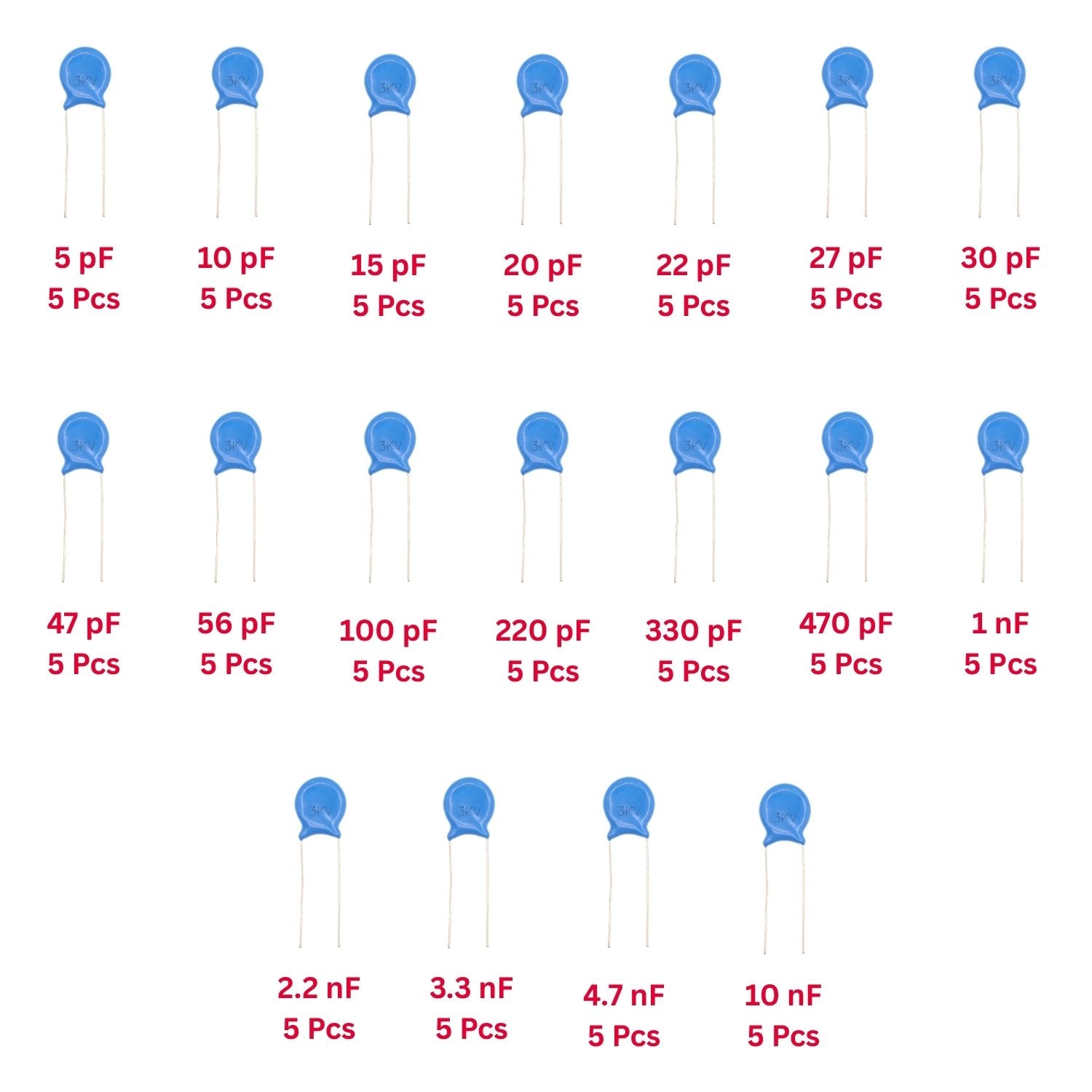

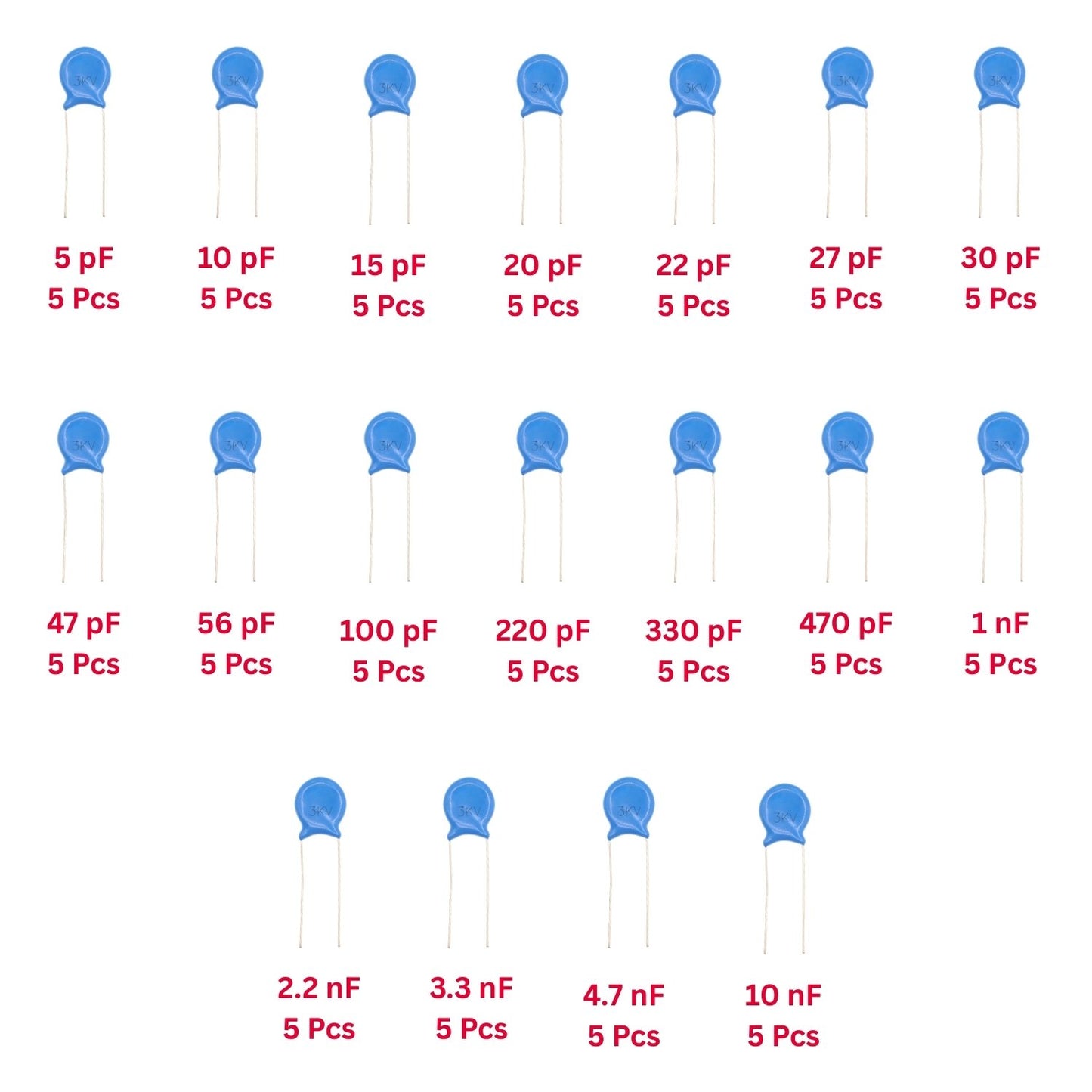

90 3KV HV Ceramic Disc Capacitor 18 Types
- 5 pF – 5 Pcs
- 10 pF – 5 Pcs
- 15 pF – 5 Pcs
- 20 pF – 5 Pcs
- 22 pF – 5 Pcs
- 27 pF – 5 Pcs
- 30 pF – 5 Pcs
- 47 pF – 5 Pcs
- 56 pF – 5 Pcs
- 100 pF – 5 Pcs
- 220 pF – 5 Pcs
- 330 pF – 5 Pcs
- 470 pF – 5 Pcs
- 1 KpF – 5 Pcs
- 2.2 KpF – 5 Pcs
- 3.3 KpF – 5 Pcs
- 4.7 KpF – 5 Pcs
- 10 KpF – 5 Pcs
Technical Specifications:
- Type: Through Hole

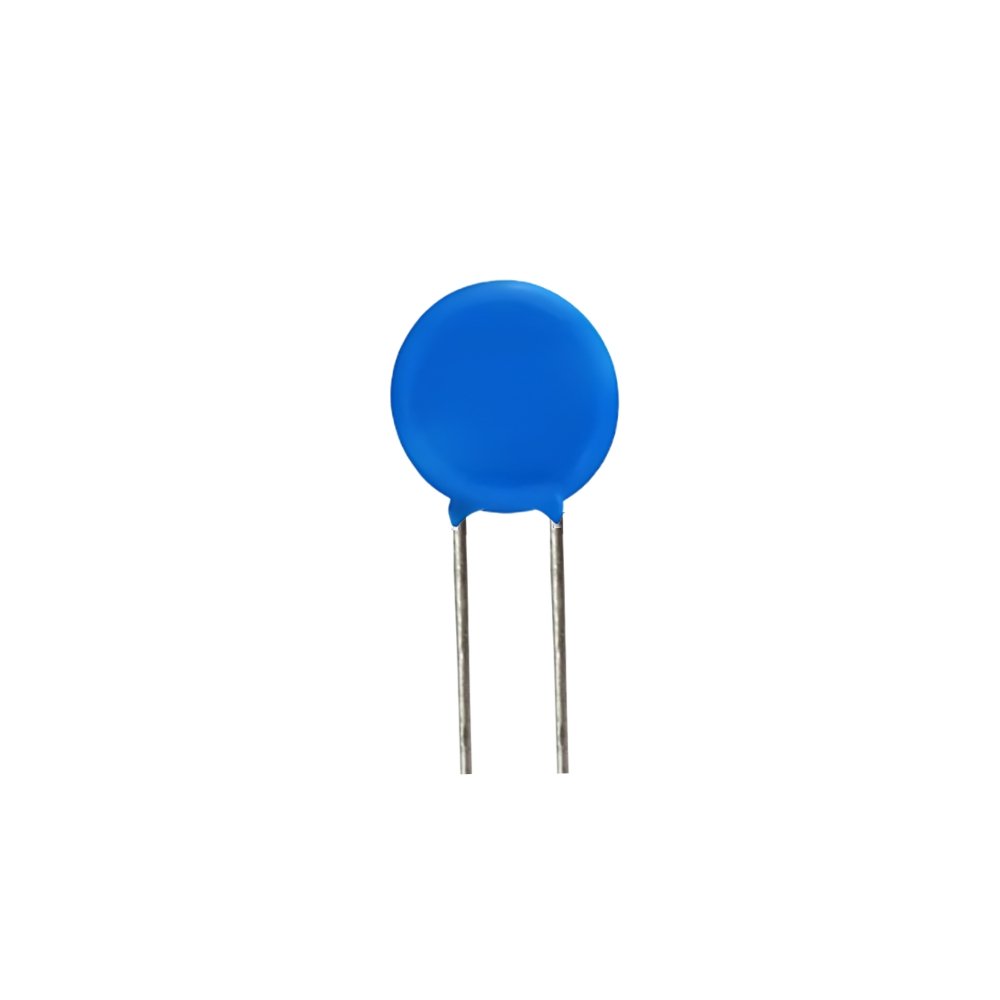

- Model: HV Ceramic Disc Capacitor
- Lead Type: Radial
- Capacitance Range: 5 pF – 10 KpF
- Voltage Rating: 3 KV
- Tolerance: ±10 %
- Pak Weight: 60 gm
- Pak Dimensions: 127 x 80 x 24 mm
Description
The 90 3KV High Voltage Ceramic Disc Capacitor Pack offers a wide range of capacitor values perfect for high-voltage applications. Rated for 3KV, these capacitors are ideal for use in power supplies, RF circuits, and high-voltage electronics.
With 18 different capacitance values, this pack ensures versatility and flexibility for various projects. Each value comes with 5 pieces, providing ample components for your needs. These capacitors are designed for reliability, stability, and longevity in demanding environments.
Capacitor Symbol:

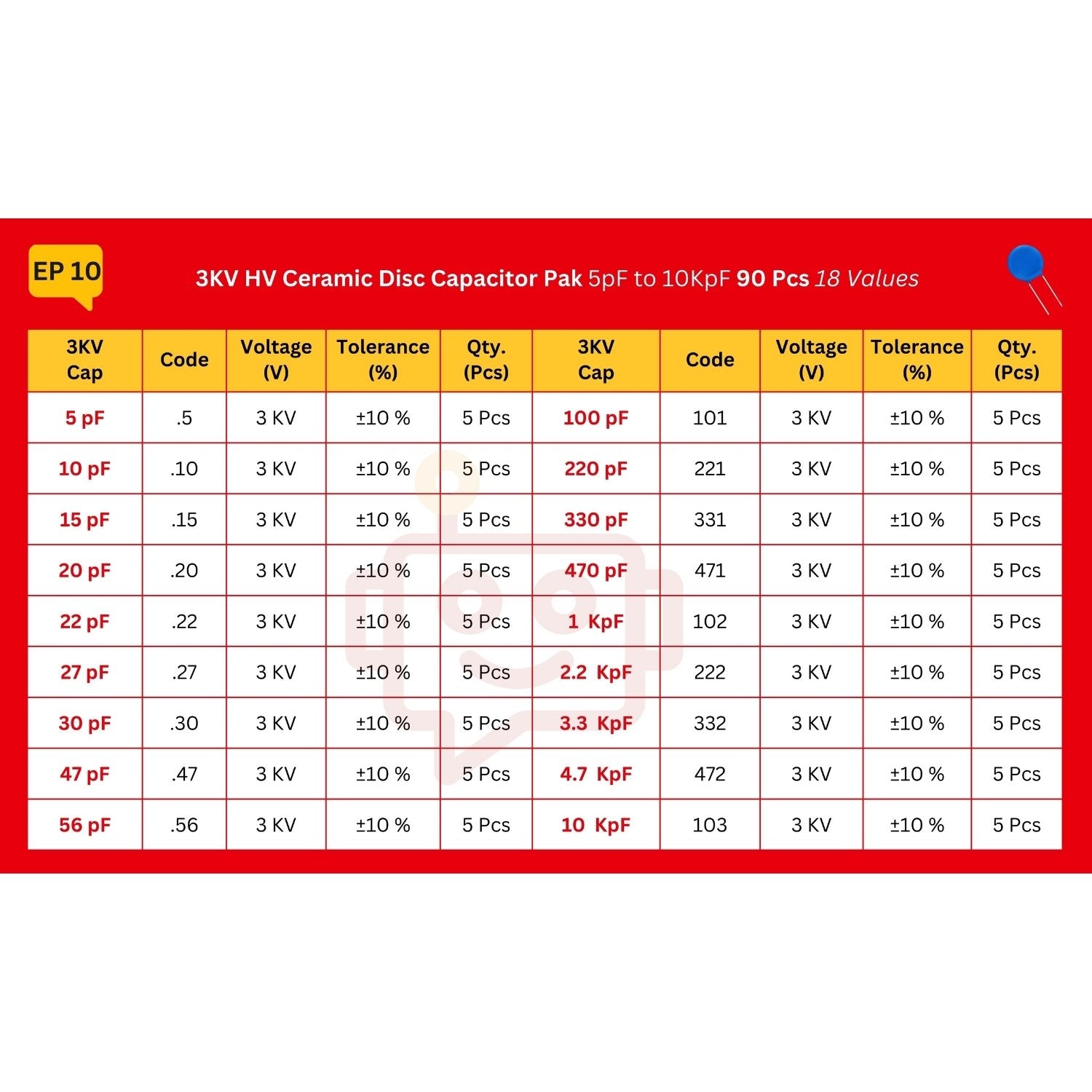

3KV Cap Part Code:
3KV Cap Structure:
Features:
- Suitable for high-voltage applications up to 3000V
- Durable and stable performance in demanding environments
- Ceramic disc design with radial leads for simple integration into circuits
- Performs well in high-frequency circuits without significant loss
Applications:
- Power Supply Filtering: Ideal for smoothing and filtering power supplies in high-voltage circuits
- RF Circuits: Perfect for use in radio frequency circuits, providing stable performance at high frequencies
- Voltage Multipliers: Used in circuits that require high voltage regulation or multiplication
- Noise Suppression: Helps in suppressing electrical noise in sensitive electronic devices
- Pulse Circuits: Effective in pulse and transient voltage applications due to their fast response time and high voltage tolerance
