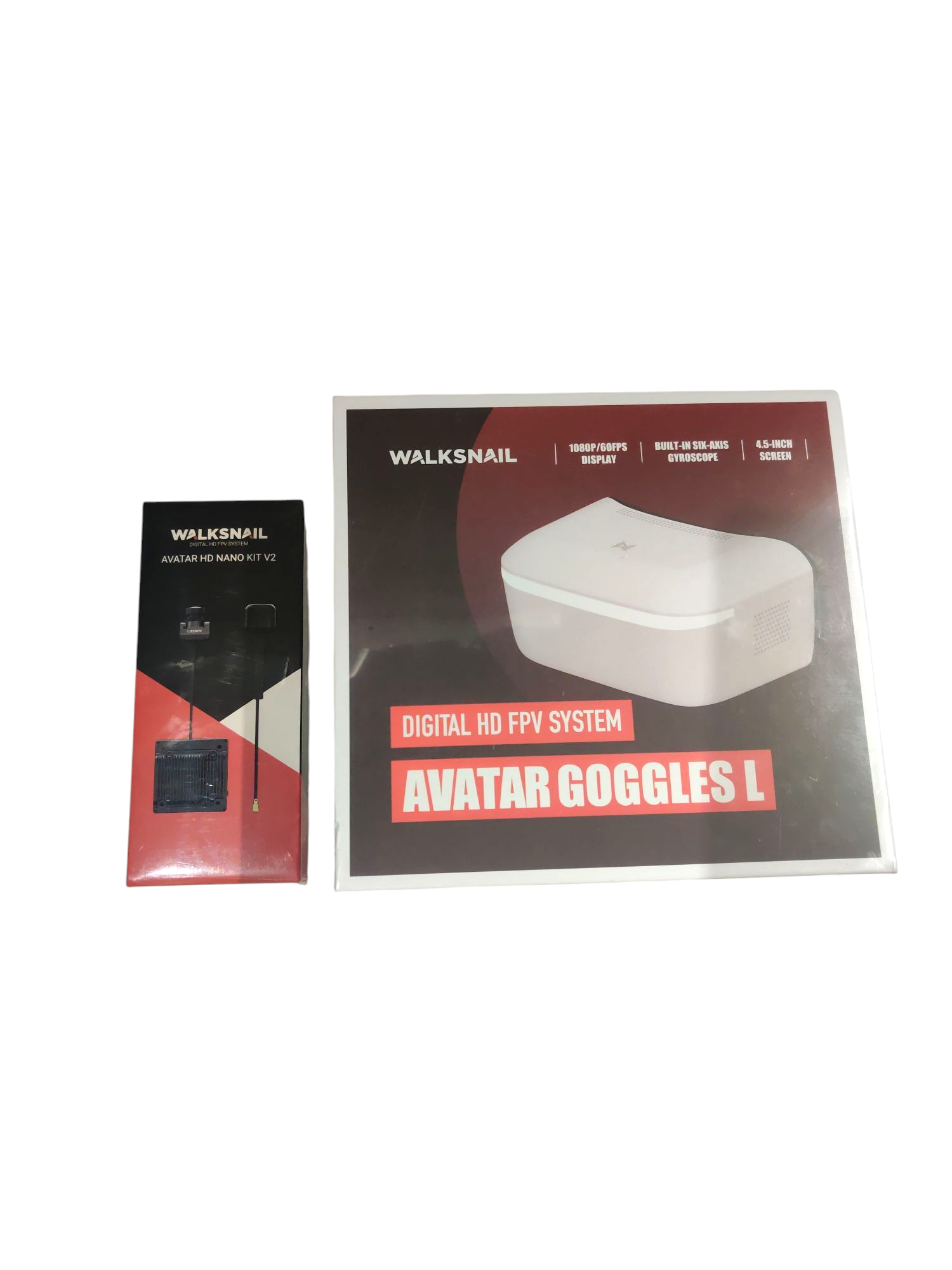

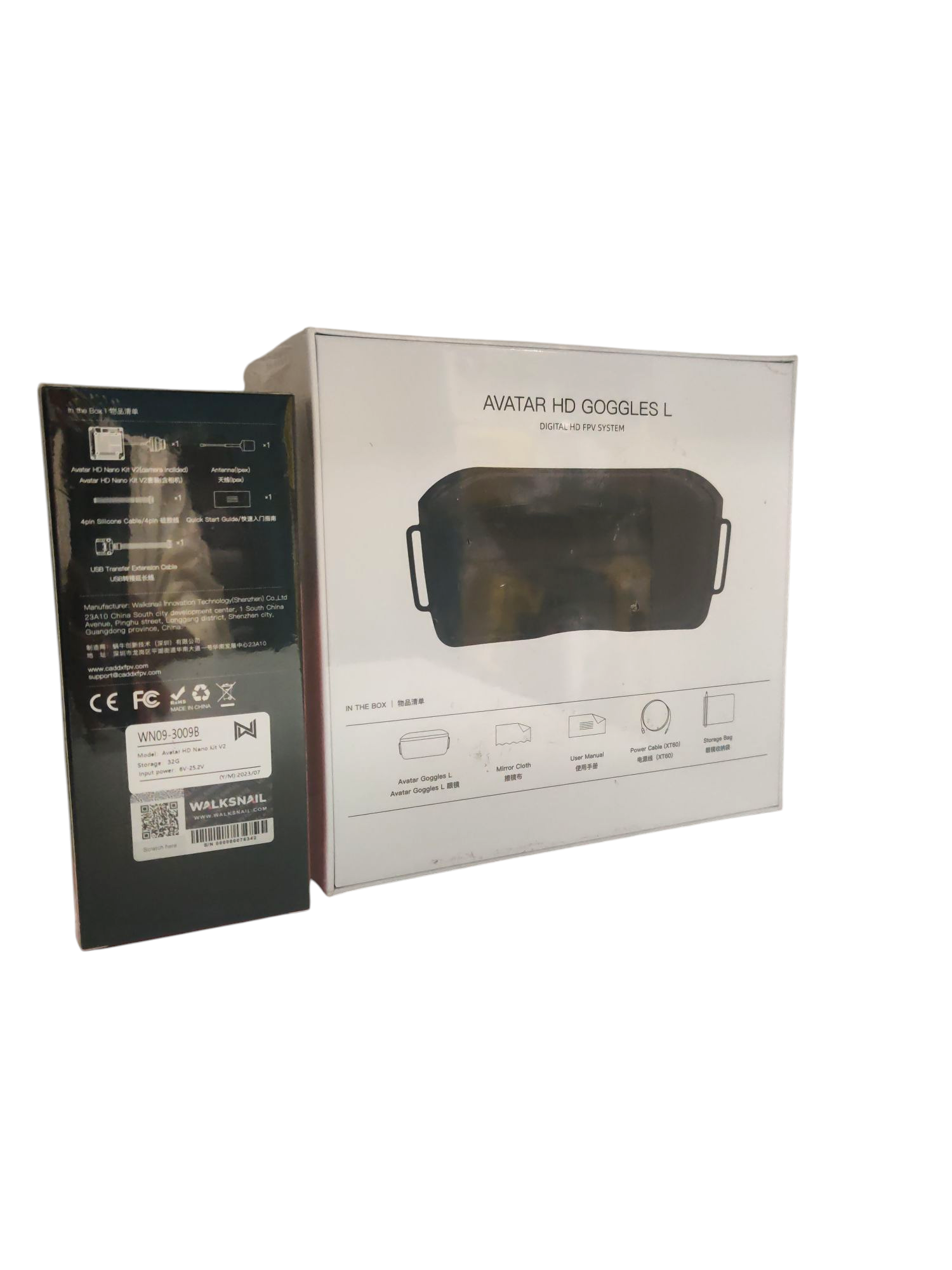

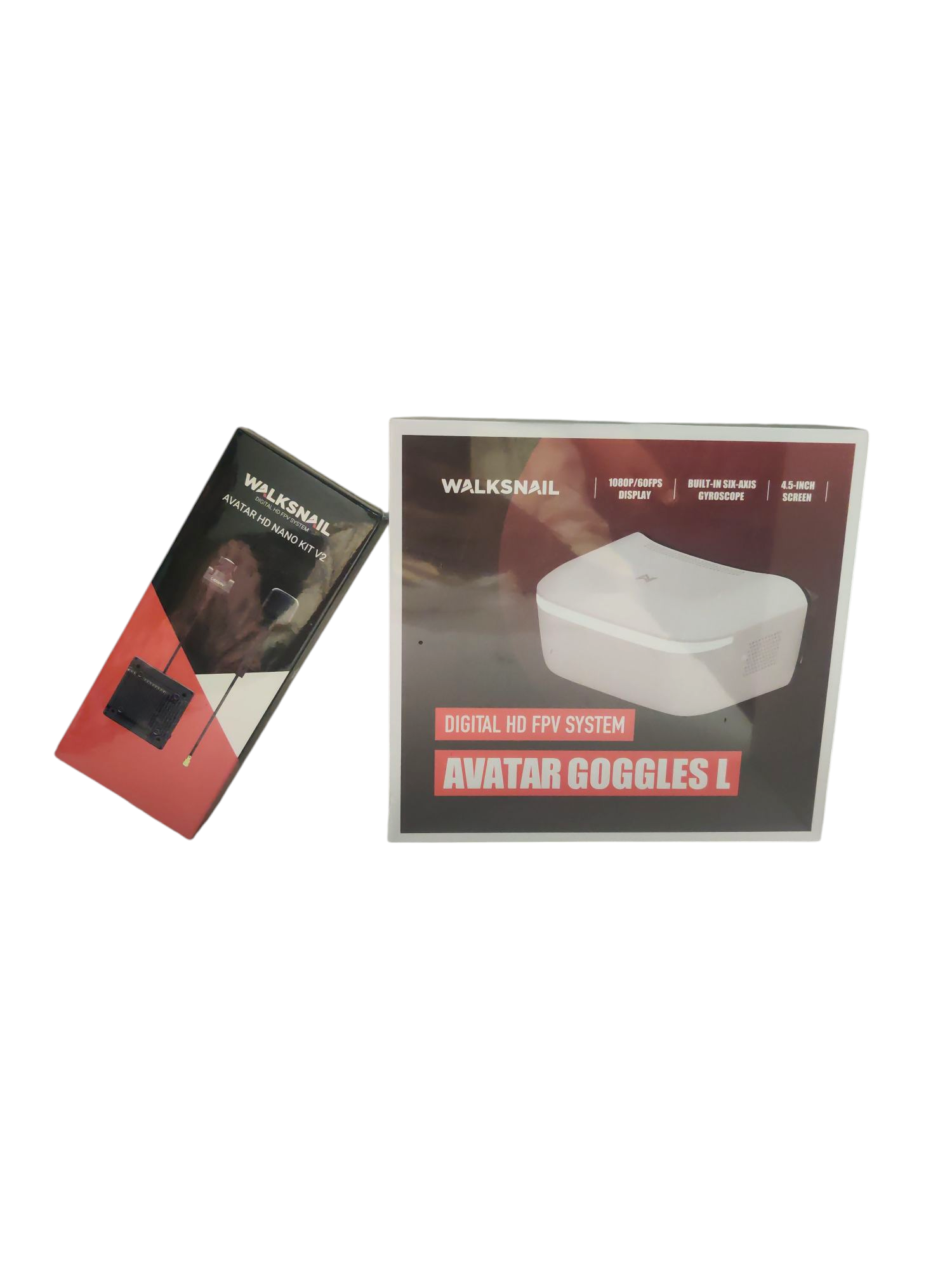

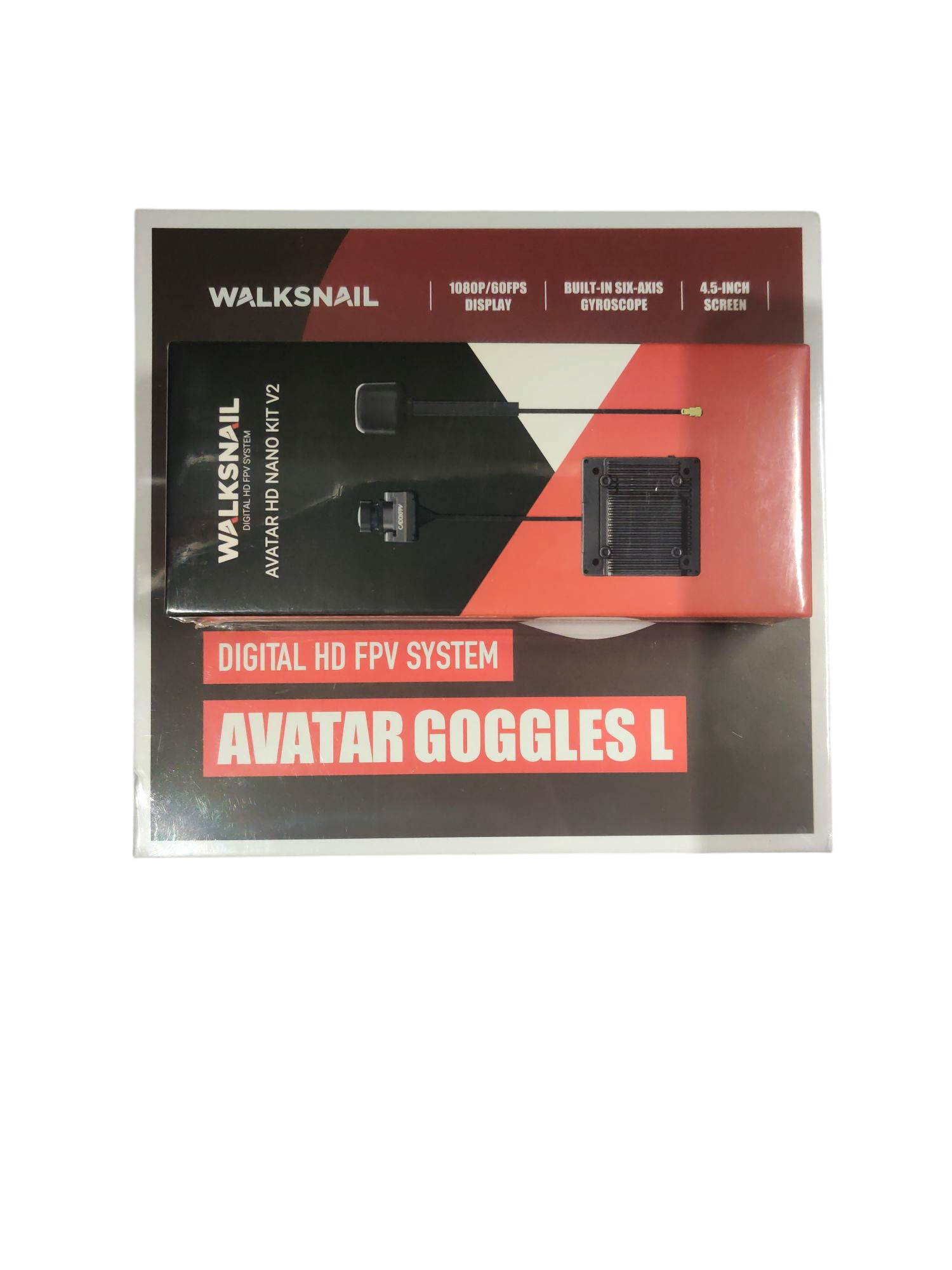

Walksnail Avatar HD Goggles L with Avatar HD Kit V2 (Camera V2 With Gyroflow+32G)

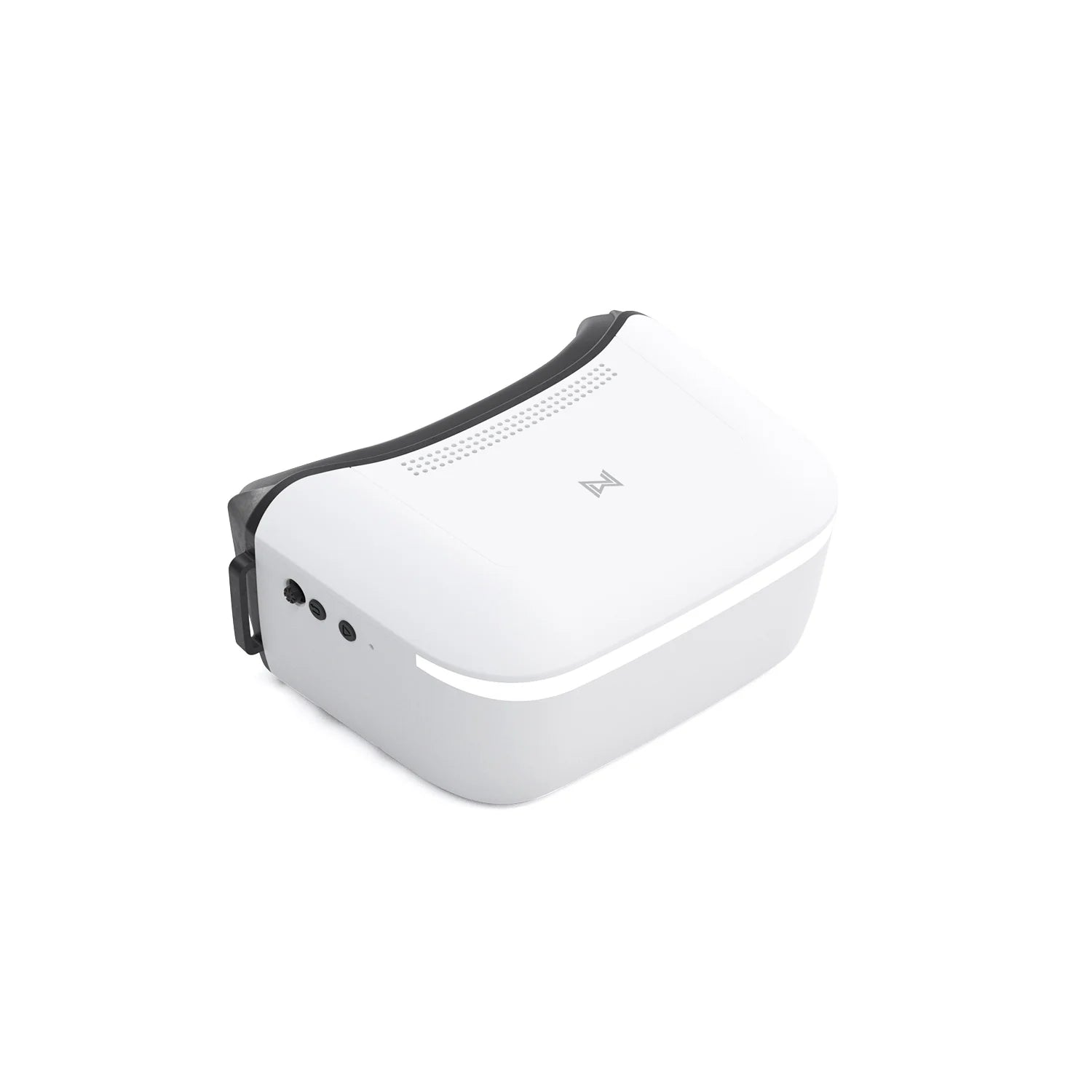

Avatar HD Goggles L:

• Model：Avatar HD Goggles L

• Communication Frequency-   5.725-5.850GHz

• Transmitter Power(EIRP)-    FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm

• I/O Interface- 4Pin 3.5mm Plug, DC5.5*2.1mm, Micro SD Card Slot,

• Gyro- Nine-axis gyroscope

• Transmission Resolution-1080p60fps, 720p60fps

• Code Rate- Max 50 Mbps

• Min. Latency- Average 32ms

• Average Gain- 4.9dBi

• Polarization- LHCP

• Transmission Distance- ＞4km

• Channel- 8

• Screen Resolution- 1920*1080/60Hz

• Screen Material-LCD

• FOV- 75°

• Screen Size- 4.5 Inch

• Power Input- 6V-25.2V(2S-6S)

• SD card- Support 256G

• Net weight-    350±10g

• System- Avatar HD System



To provide users with a cost-effective entry into HD systems while ensuring an excellent experience, we have developed the first single-screen HD goggles equipped with head tracking functionality. This innovative device is designed to deliver an unparalleled FPV experience, allowing pilots to enjoy the combined benefits of head tracking and HD visuals.

Bullet Points:

The goggles are equipped with an in-house developed full-stack image transmission head tracking system. The head tracking sensor, employing a nine-axis gyro module, is integrated into the goggles to capture the pilot's head movements. Paired with a gimbal, it sends signals via the image transmission system to control the camera's pan and tilt, providing pilots with a cockpit-like sensation.

The Avatar HD system adopts industry-leading H.265 encoding technology, delivering 1080P/60FPS FPV video quality for an immersive and responsive experience.

It also supports PPM signal output to Radio Controllers via the Goggles L's 3.5mm headphone TX connector, which in turn outputs to the drone.

Employing cutting-edge optical design, the goggles offer distortion-free and high-resolution imaging at 1920X1080, coupled with a 4.5-inch HD display for clarity and eye protection.

With a built-in Micro SD card slot, users can easily record their flights with just one touch, capturing every exhilarating moment.

Featuring a high-performance directional antenna with a gain of up to 4.9 dBi, the goggles ensure stable signal transmission, enabling longer flight distances.

Compatible with 2-6S voltage input, the goggles are compatible with all drone batteries, providing users with greater flexibility.

The detachable lens design supports various vision needs, allowing for the installation of nearsighted, farsighted, or blue light-blocking lenses to meet individual preferences.

Compatibility with all current Walksnail VTX models ensures stability and the ability to fly when you want to, in both indoor and outdoor environments.

The front cover has an added light-up feature with a cool light bar design to add a technological touch to your gear.

Utilizing premium polyurethane foam, the goggles' face mask ensures softness and comfort, while reducing light leakage for an enhanced wearing experience.

The Goggles L is suitable for RC cars, FPV drones, and fixed-wing. With the most competitive cost, Goggles L allows you to experience true digital HD FPV visuals, bringing clarity and immersion to your FPV adventures.

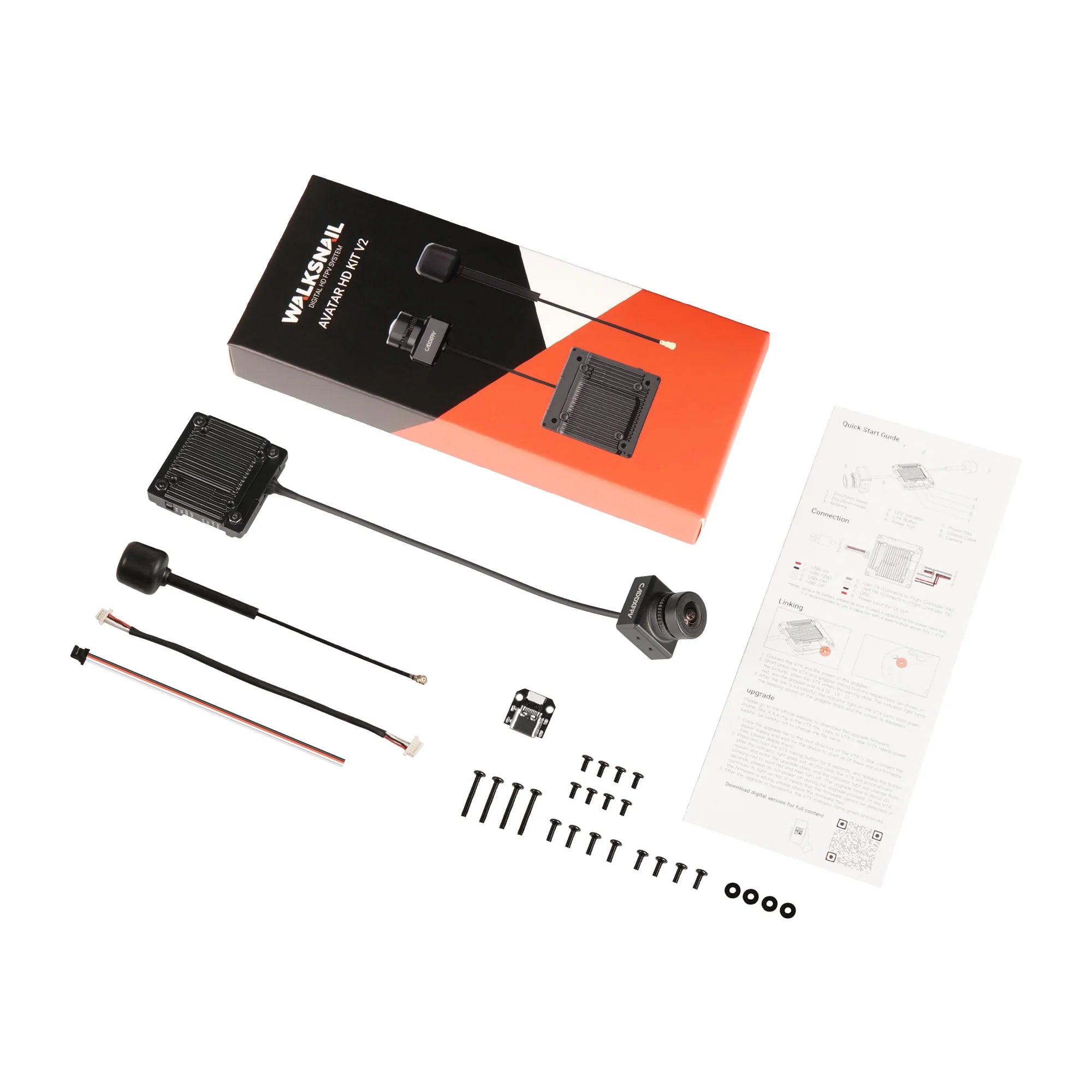

Avatar HD Kit V2:

Camera

• Model    Avatar V2 camera

• Image Sensor    1/3.2-Inch 4Mp 4:3sensor

• Resolution    1080P/60fps; 720P/100fps; 720P/60fps;1080P/120fps compatibility; 1080P/100fps compatibility;

• Ratio    4:3 native /16:9

• Lens    2.1mm

• FOV    160°

• Aperture    F2.0

• Shutter    Rolling shutter

• Min.Illumination    0.001Lux

• Weight    7.2g

• Dimensions    19*19*22mm

• Coaxial Cable    140mm

• Gyroflow    Only 32G VTX Supported

VTX

• Model    Avatar V2 module

• Communication Frequency    5.725-5.850GHz

• Transmitter Power (EIRP)    FCC:<30dBm;CE:<14dBm;SRRC:<20dBm; MIC:<25dBm

• 1/O Interface    JST1.0*4(Power in)JST0.8*6(USB)

• Mounting Holes    25.5*25.5mm; 20*20mm

• Dimensions    33.5*33.5*10.5mm

• Storage    8G/32G

• Recording    1080p/720p

• Weight    17.6g

• Operating Temperature    -20-40℃

• Channels    8

• Wide Power Input    6V-25.2V

• Supported FC System    Betaflight; Inav; Fettec; ArduPilot; Kiss

• OSD    Canvas mode

• Latency    Average delay 22ms

• Antenna    1(IPEX)


Avatar V2 antenna

• Polarization    LHCP

• Bandwidth    5600MHz-6000MHz

• Gain    1.9dBi

• VSWR    ≤1.5

• Input Impedance    50Ω

• Interface    IPEX-1

• Size    R15 X 45mm （without cable）

• Weight    2g


Bullet Point for Avatar HD kit V2

Features

• In addition to the original 25mm x 25mm mounting holes, the kit now added 20mm x 20mm holes for greater compatibility with a wider range of FPV drone models.
• Updated the design of PCB board and shell, improved the quality of VTX, more durable.
• Optimized the installation place of the antenna, so as to better protect the VTX.
• The position of the frequency binding button has been changed to make the frequency binding operation more convenient.
• A spare pad is added to provide two power connection modes.



New VTX with enhanced TVS protection and support for up to 6S. With a wide input voltage the range of 6V to25.2V, our VTX delivers unmatched stability and resistance to GPS interference. Enjoy unparalleled performance and take your FPV adventures to new heights with our cutting-edge technology.

The Avatar VTX comes with 8g/32g built-in storage it can record 1080p or 720p HD flight videos without interference.32G built-in storage, recording video time increased by 4 times.

Supports both high frame rate and standard frame rate, it has an average latency of 22ms with the high frame rate.

The compact and convenient single-antenna design makes it easier to assemble your FPV drone. The quality of the antenna is upgraded, and the working performance of the whole frequency band is more stable.

HD 1080p OLED Dual Micro Displays



The Avatar goggles are designed to be lightweight, mini, small and have a 46° field of view, making them more comfortable for pilots while giving them a more immersive FPV experience.

HDMI Output

Turn on the ranging mode to display the distance between the drone and goggles in real time,in case the drone is lost due to long distance flight.
