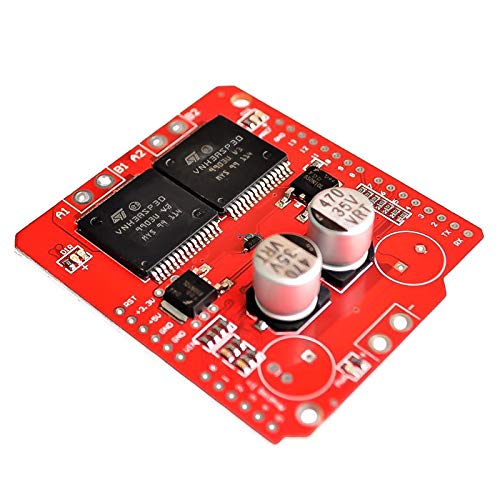

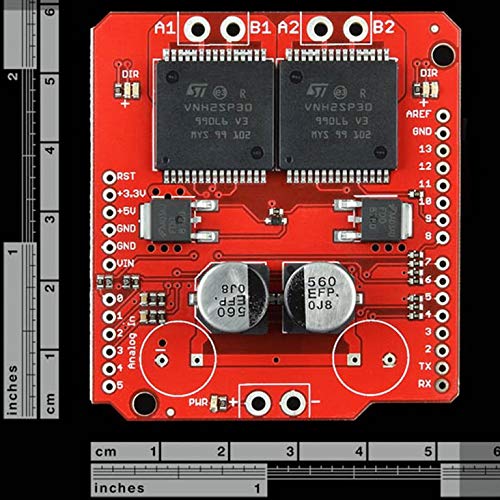

Monster Moto Shield VNH2SP30 Motor Driver

• Voltage Max: 16V

• Maximum current rating: 30 A

• Practical Continuous Current: 14 A

• Current sensing available to Arduino analog pin

• MOSFET on-resistance: 19 mΩ (per leg)

• Maximum PWM frequency: 20 kHz

• Thermal Shutdown

• Under voltage and Overvoltage shutdown.

--

Monster Moto Shield VNH2SP30 Motor Driver 14A is essentially a ramped up version of our Ardumoto motor driver shield. For this Monster Moto Shield, we’ve replaced the L298 H-bridge with a pair of VNH2SP30 full-bridge motor drivers.

We’ve also beefed up the support circuitry so this board is capable of driving a pair of high-current motors! The VIN and motor out are pitched for our 5mm screw terminals (not included), making it easy to connect larger gauge wires.

Note:

When using this board in extreme high-demand applications it may be necessary to improve thermal performance with a heat-sink or fan and to solder the wires directly to the board instead of using a screw terminal (in addition to the myriad other complications present in a high-current system) However, when using the board at currents up to 6A the chips will barely become noticeably warm.



---



Features :

1. Current sensing available to Arduino analog pin

1. MOSFET on-resistance: 19 mΩ (per leg)

1. Maximum PWM frequency: 20 kHz

1. Thermal Shutdown

1. Under voltage and Overvoltage shutdown.



---



Package Includes:

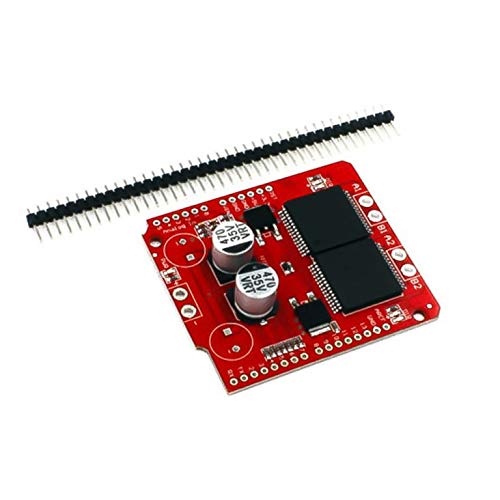

1 x Monster Moto Shield VNH2SP30 Motor Driver 14A Module

1 x Row of 7 pins
