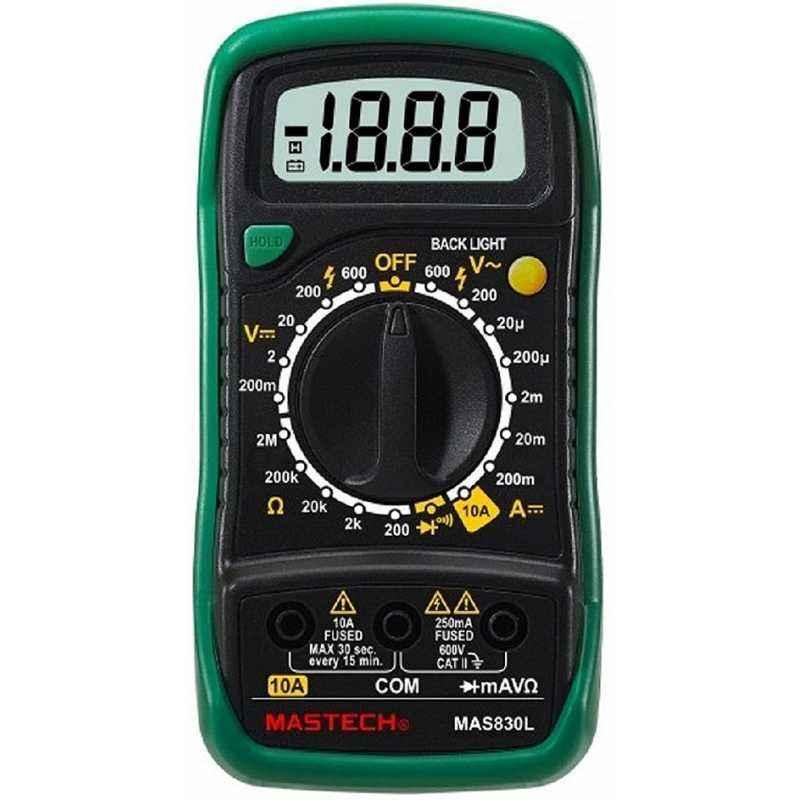

Mastech MAS830L Digital Multimeter
All Prices Incuding GST
Order Through WhatsApp
+91-8249931161
Fast Delivery
Same Day Dispatch.
Bulk Purchase
- Resistance: 200Ω, 2KΩ, 20KΩ, 200KΩ, 20MΩ, 200MΩ
- Frequency: 400Hz
- Diode Test
- Continuity Check
- Max Display: 2000
Mastech MAS830L Digital Multimeter – Multimeter with Probes is a handheld Digital Multimeter for measuring DC and AC Voltage, DC Current, Resistance, Diode, and Transistor with battery operated. The Mastech MAS830L Digital Multimeter has a Blue Backlight LCD with 1999 counts and a 2-3/sec updates Measuring method. It features a dual-slope integration A/D Converter.Accurate Multimeter Mastech Digital Multimeter is designed to be used in your household and other working spaces. You can easily rely on its accuracy and count on it for its readings. This helps you keep a check on the usage and voltage.
The MAS830L series multimeter is a compact, pocket-sized digital multimeter. It is ideal for most DC measurements. This meter is convenient for them on-the-go professionals who need to do basic voltage, current, resistance, continuity measurements, Diode check/0.8mA, etc. This meter also has a data hold facility and backlight for those nightlife DIY makers.
Features: MASTECH MAS830L Digital Multimeter
- Pocket Size and 2000 counts LCD Display
- Tests AC/DC Voltage, DC Current and Resistance
- Transistor Check, Diode and Continuity Test
- Display Back Light
- Data Hold
- Audible continuity
- Transistor HFE test
- Low battery indication
- Rubber hostler for good grip.
Measurement: MASTECH MAS830L Digital Multimeter
DC Voltage up to 600V (In 5 Ranges)
AC Voltage up to 600V (In 2 Ranges)
DC Current up to 10A (In 5 Ranges)
Resistance up to 2 M.OHMS (In 5 Ranges)
|
Specifications |
Range |
Resolution |
Accuracy |
| DC Voltage | 200mV/2V/20V/200V
600V |
0.1mV/1mV/10mV/0.1V
1V |
±(0.5%+3)
±(0.8%+5) |
| AC Voltage | 200V/600V | 0.1V/1V | ±(1.2%+10) |
| DC Current | 20μA
200μA/2mA 20mA 200mA 10A |
0.01μA
0.1μA/1μA 10μA 0.1mA 10mA |
±(1.0%+3)
±(1.0%+3) ±(1.0%+5) ±(1.5%+5) ±(3.0%+10) |
| Resistance | 200Ω
2kΩ/20kΩ/200kΩ 2MΩ |
0.1Ω
1Ω/10Ω/0.1kΩ 1kΩ |
±(0.8%+5)
±(0.8%+2) ±(1.0%+5) |
Note: The printed labels on the body and color of the multimeter body may vary from the actual product according to the manufacturer.
- In an industrial environment
- For measuring electrical installations
- Test Leads
- Battery and User’s manual
Working Specs: MASTECH MAS830L Digital Multimeter
Package Includes :
1 x Mastech MAS830L Digital Multimeter – Multimeter with Probes
- Shipping Time:- Our orders are shipped within 24 Hours.
- Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location
- Shipping Partner:- Bluedart, Amazon Shipping, Ekart Logistics, Delhivery & India Post.
- Replacement:- Damaged During Transit, Missing Parts Or Item Mismatch.
- Return:- Item mismatch or parts missing etc.
- No return/Replacement will apply if the Product has been subject to misuse, static discharge, neglect, accident, modification, or has been soldered or altered in any way.
- We accept no responsibility for improper installation of our products. Electrical polarity must be properly observed in hooking up electrical components.
