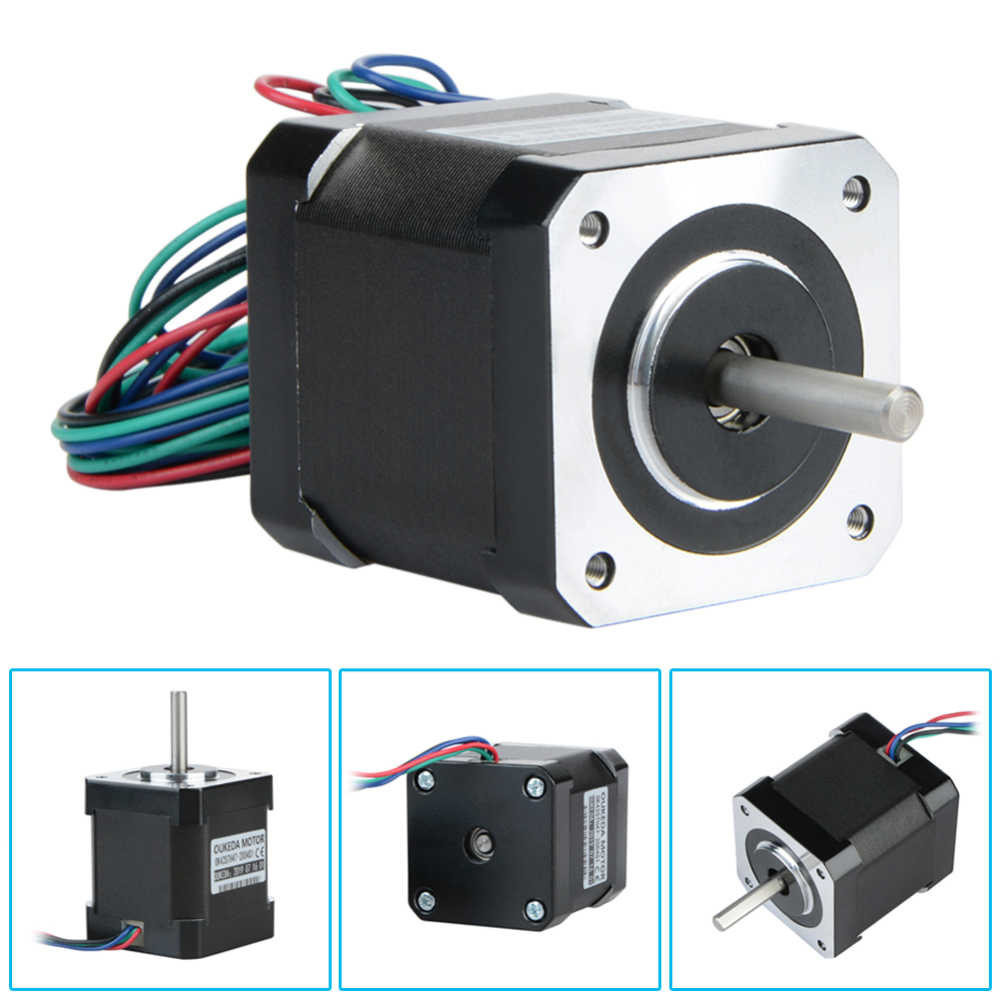

3D printer motor with high torque
59Ncm(83.6oz.in) holding torque
NEMA 17 bipolar 1.65"x1.65"x1.85" 4-wire
Build with 1m Cable and 0.1" pitch Connector
Rated current 2.0A & resistance 1.4ohms


--

This is an updated version nema 17 stepper motor with holding torque of 59Ncm(83.6oz.in).

Based on old version, we have lengthened motor cable length to 1 meter, and add a 4-pin 0.1" pitch (2.54mm) Harwin female connector at the end of cable.

It's good ideal for 3D printers, as well as CNC and robotics applications.


  • Manufacturer Part Number: 17HS19-2004S1

  • Motor Type: Bipolar Stepper

  • Step Angle: 1.8 deg.

  • Holding Torque: 59Ncm(83.6oz.in)

  • Rated Current/phase: 2.0A

  • Phase Resistance: 1.4ohms

  • Inductance: 3.0mH+/-20%(1KHz)

  • Frame Size: 42 x 42mm

  • Body Length: 48mm

  • Shaft Diameter: 5mm

  • Shaft Length: 24mm

  • D-cut Length: 15mm

  • Number of Leads: 4

  • Lead Length: 1m with connector

  • Weight: 390g

  • Connection: Black(A+), Green(A-), Red(B+), Blue(B-)


Warning: Make sure the motor connect to a constant current or chopper drive controller before you test motor. Connecting the motor directly to a power supply will destroy the motor.
