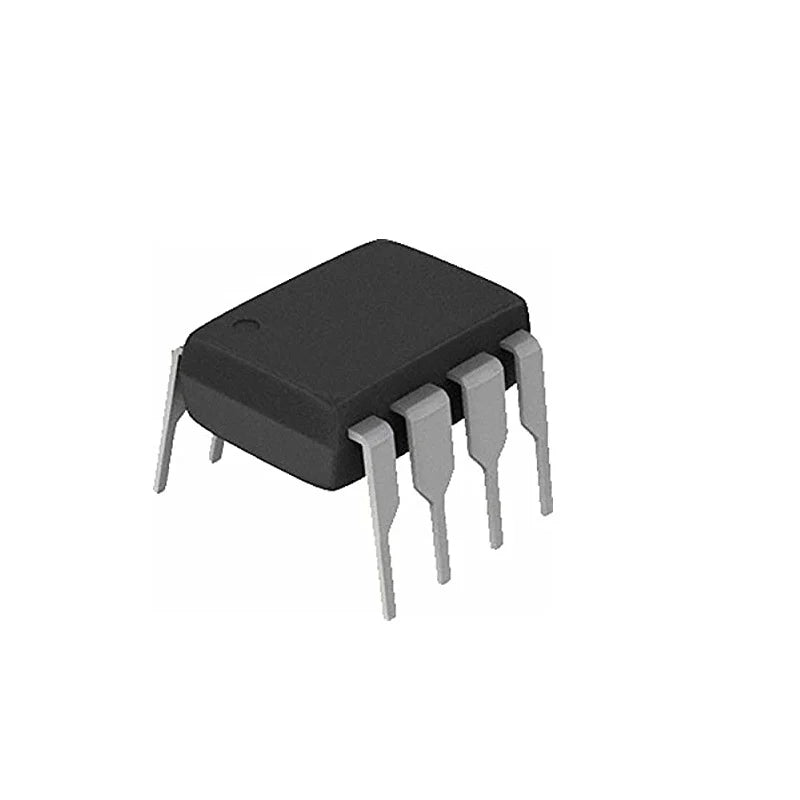

6N136 – High Speed Optocoupler

Rs. 49.00 Rs. 120.00

All Prices Incuding GST

No Hidden Charge

All Price are including GST & other applicable Taxes, For B2B Please update your GSTIN Number

Local Pickup

Estimated time to pack : 15 Mins.

11 AM- 7 PM

Order can be pickup from our Store Located in Jayadev Vihar Square, Bhubaneswar, Odisha

Fast Delivery

Same Day Dispatch.

Shipping Charge Flat-70/-

Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location

Bulk Purchase

Get Attractive Discount on Bulk
Whatsapp Support @+917749850441
  • Isolation test voltages: 5300 VRMS
  • TTL compatible
  • High bit rates: 1 Mbit/s
  • High common-mode interference immunity
  • Bandwidth 2 MHz
  • Open-collector output
  • External base wiring possible
  • Reverse voltage (VR) 5V
  • Forward current (IF) 25mA
  • Storage temperature range (Tstg) -55 to +150°C
  • Ambient temperature range (Tamb) -55 to +100°C
  • Soldering temperature max. ≤ 10 s, dip soldering ≥ 0.5 mm from case bottom (Tsld) 260°C
  • Maximum output current 16mA
  • Base current (IB) 5mA

The 6N136 is an optocoupler with a GaAIAs infrared emitting diode, optically coupled with an integrated photo detector which consists of a photo diode and a high-speed transistor in a DIP8 plastic package. Signals can be transmitted between two electrically separated circuits up to frequencies of 2 MHz. The potential difference between the circuits to be coupled should not exceed the maximum permissible reference voltages.
