10" TFT Display Raspberry Pi

Rs. 9,999.00 Rs. 12,500.00

Subcribe to back in stock notification

All Prices Incuding GST

No Hidden Charge

All Price are including GST & other applicable Taxes

Local Pickup

Estimated time to pack : 15 Mins.

11 AM- 7 PM

Order can be pickup from our Store Located in Jayadev Vihar Square, Bhubaneswar, Odisha

Fast Delivery

Same Day Dispatch.

Shipping Charge Flat-70/-

Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location

Bulk Purchase

Get Attractive Discount on Bulk
Whatsapp Support @+917749850441

Operating voltage: 12V
Current requirement: 1A-2A
Rated power: 6-7W
Signal input: 2 Road AV+VGA
System mode: PAL/NTSC
HDMI input: version HDMI 1.1
VGA input: 1280?800 physical resolution
Physical resolution: 1280 x 800
Brightness: 350 lumens
Panel type: TFT
Interface type: Digital
Number of wiring: 40 PIN LVDS
Backlight: LED


--

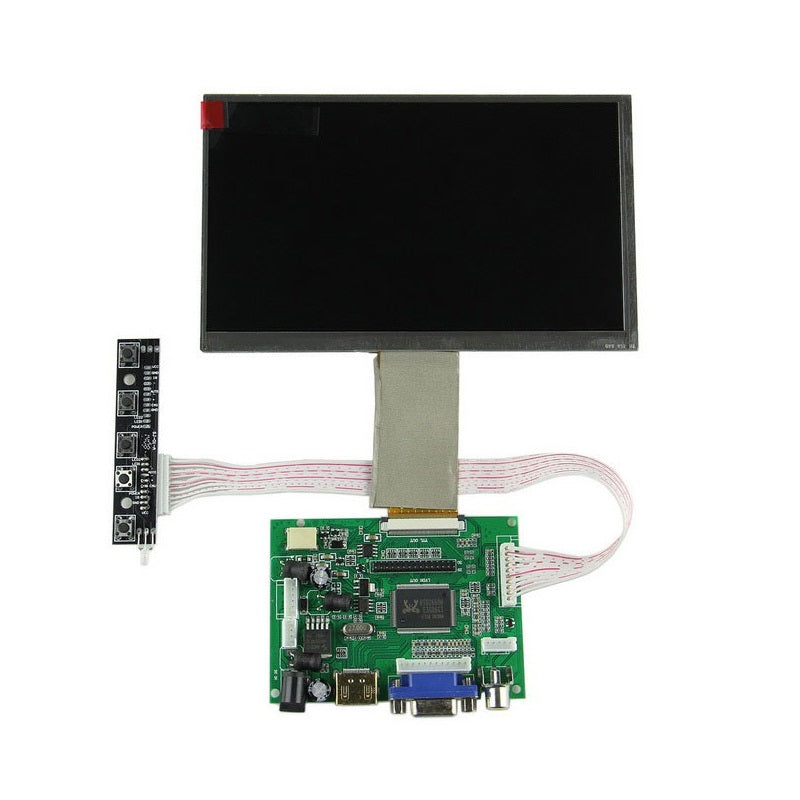

The 10.1 inch IPS LCD Screen 1280?800 with Driver Board Kit for Raspberry Pi is an HD IPS digital LCD screen kit with HDMI+VGA+2AV. Do not reverse the positive and negative of the power supply. The back of the drive plate is marked positive and negative (GND). The driver board must be insulated around so as no conductor or metal conductor can touch the circuit board.

As the wiring is relatively fragile, when testing installation, we must pay attention to protect the cable. Support resolution range can be 640 x 480 ?1600 x 1200 arbitrarily! AV1 video input (link DVD device or front camera) and AV2 video input (automatically switch to camera picture). The 10.1 inch IPS LCD Screen 1280?800 with Driver Board Kit for Raspberry Pi is plug and play function and support the OSD languages: Simplified Chinese, traditional Chinese, English, Japanese, Japanese, Korean, Spanish, French, German, Italian, Portuguese. The control mode is multi-function OSD operation or potential regulation of brightness and color.

  • Shipping Time:- Our orders are shipped within 24 Hours.
  • Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location
  • Shipping Partner:- FedEx, Delhivery, XpressBees, Ecom Express, E kart Logistics, for remote location we use India Post.
  • Replacement:- Damaged During Transit, Missing Parts Or Item Mismatch.
  • Return:- Item mismatch or parts missing etc.
  •  No return/Replacement will apply if the Product has been subject to misuse, static discharge, neglect, accident, modification, or has been soldered or altered in any way.
  • We accept no responsibility for improper installation of our products. Electrical polarity must be properly observed in hooking up electrical components.
