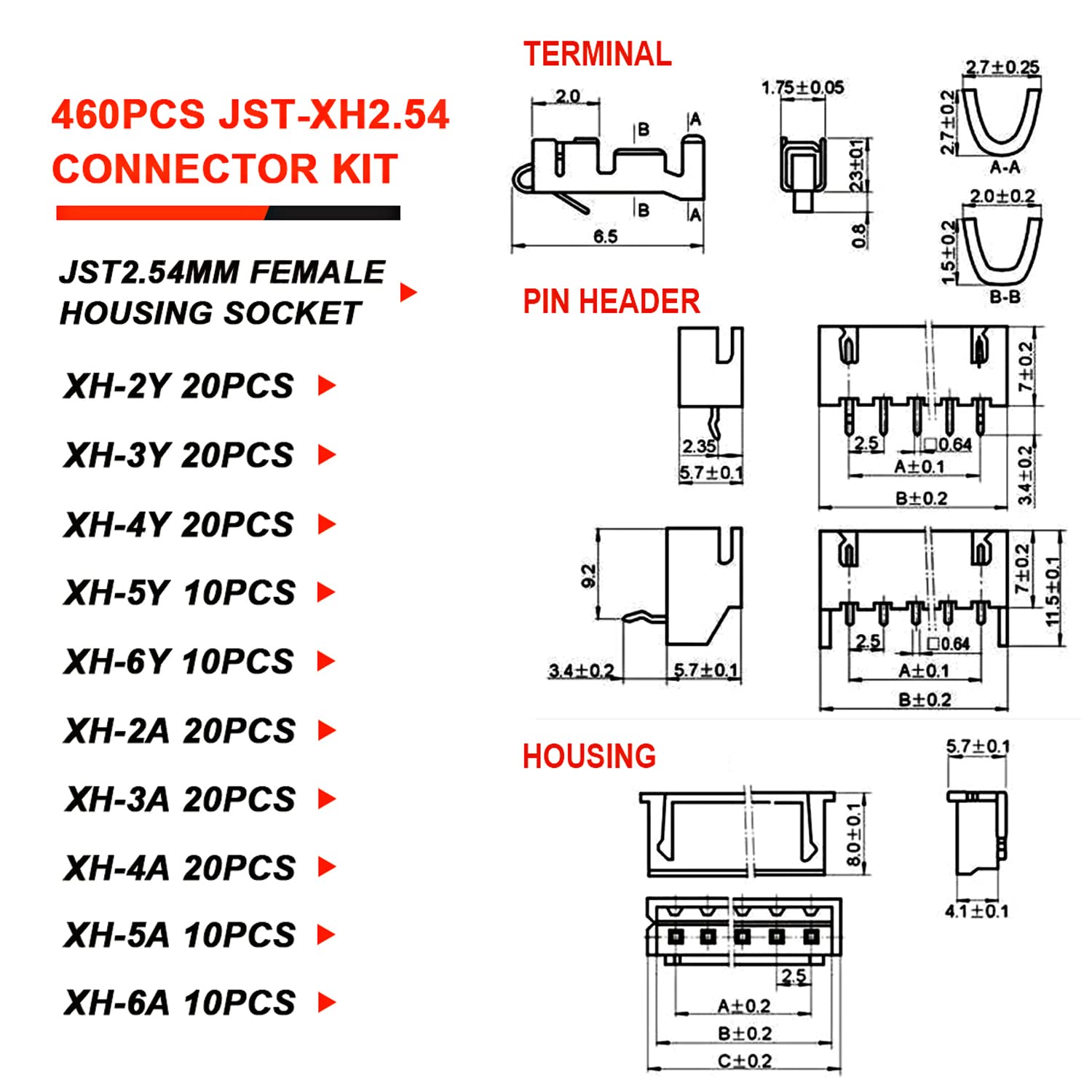

460pcs JST-XH 2.54 2,3,4,5,6 Pin 2.54mm Pitch Housing Connector Terminal Kit

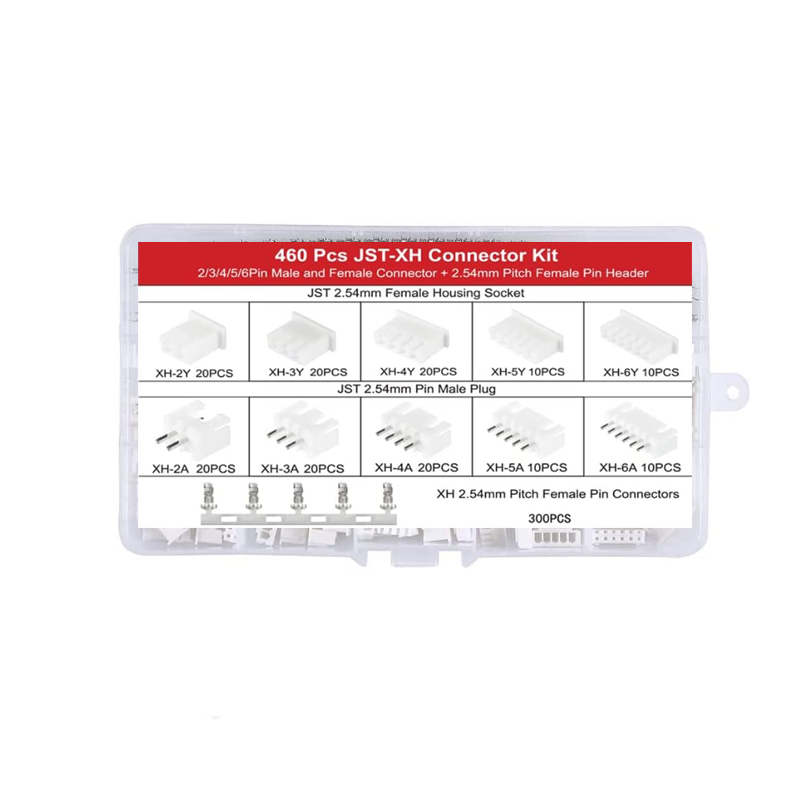

KIT CONTAINS:

• 20 x XH-2Y Female Housing
• 20 x XH-3Y Female Housing
• 20 x XH-4Y Female Housing
• 10 x XH-5Y Female Housing
• 10 x XH-6Y Female Housing
• 20 x XH-2A Male Housing
• 20 x XH-3A Male Housing
• 20 x XH-4A Male Housing
• 10 x XH-5A Male Housing
• 10 x XH-6A Male Housing

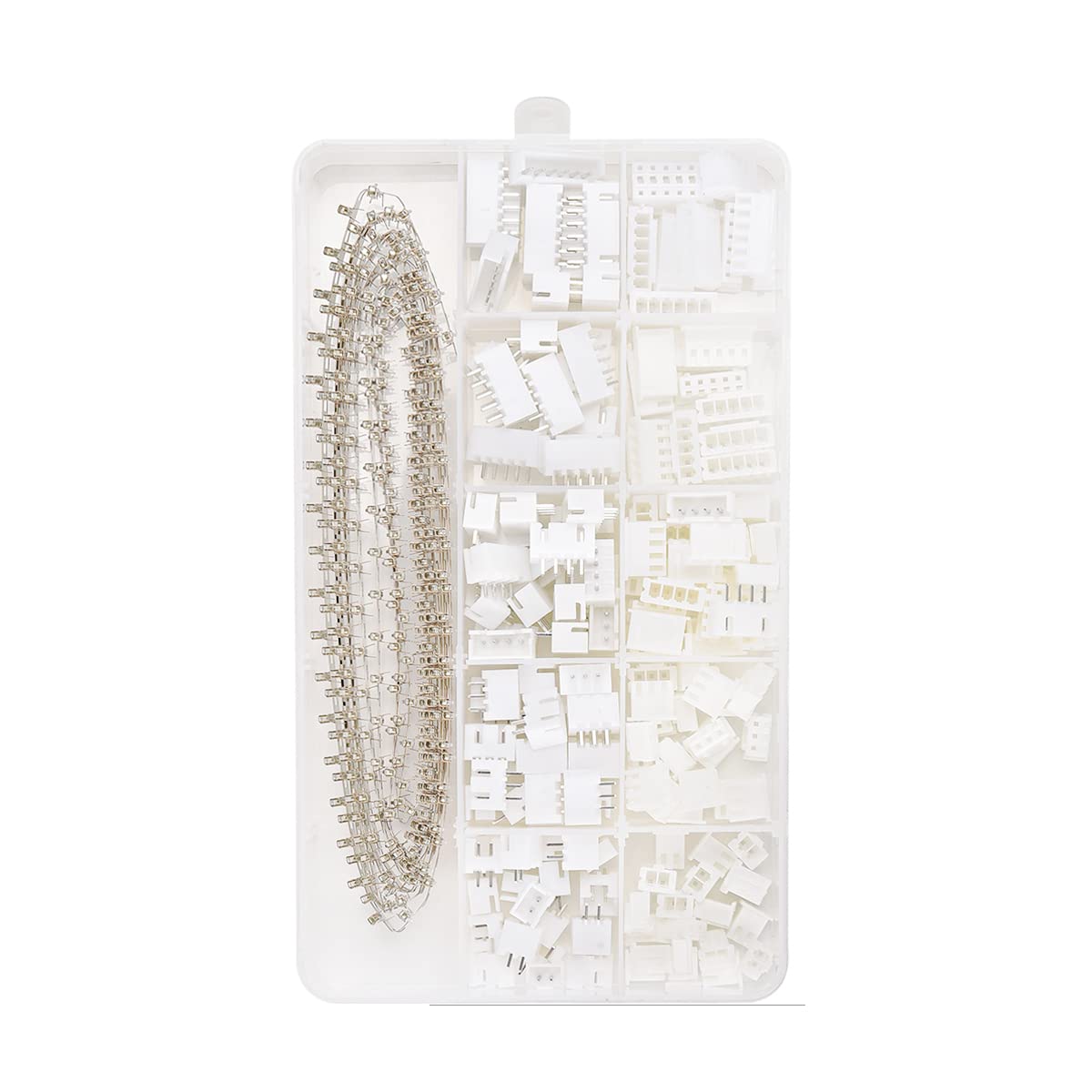

• 1 x Plastic Box

Features:

1. Contains 460 pieces of various pin-count housings and terminals.
2. Compatible with JST-XH series (2.54 mm pitch) including 2-, 3-, 4-, 5- and 6-pin housings.
3. Nylon housing material provides excellent insulation and long-lasting durability.
4. Tin-plated copper terminals offer stable conductivity and strong corrosion resistance.
5. Rated for 3 A current and 250 VAC, making it suitable for a wide range of low-power applications.
6. Wide operating temperature range from –25 °C to +85 °C for versatile use.
7. Simple installation: crimp the terminals onto wires and lock them into the housings.
8. Ideal for DIY electronics, sensor modules, LED wiring, PCB connectors and breadboard projects.


This 460PCS JST XH2.54MM Connector 2/3/4P Base Connector Terminal Kit features the widely used Treedix JST-XH 2.54 mm system, covering 2-, 3-, 4-, 5- and 6-pin housings alongside male/female terminals. The housings are crafted from nylon for insulation and durability, while the terminals are tin-plated copper for reliable conductivity and corrosion resistance. The 2.54 mm (0.1 in) pin pitch makes the kit ideal for breadboards, Arduino setups and PCB headers.

Rated at 3 A and 250 VAC, it supports use in a wide range of hobbyist or professional wiring tasks. Temperature range extends from –25 °C to 85 °C. With 300 female terminals and an assortment of housing sets, this kit makes a great all-in-one solution for building custom wiring looms, LED strings, sensor cables and more. Simple to install: crimp the terminal onto the wire then insert into the housing.
